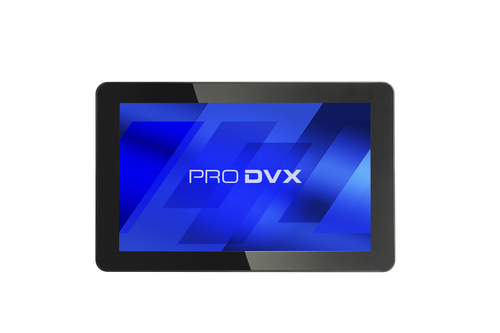

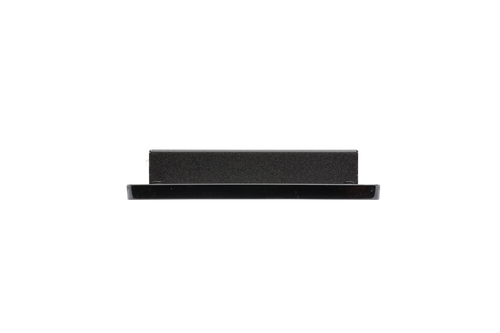

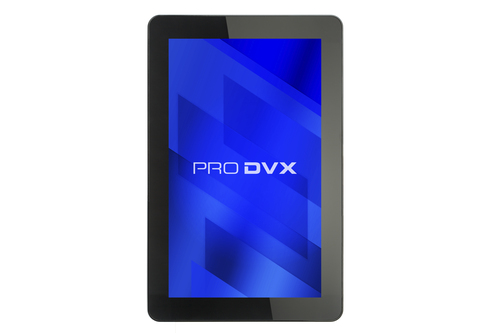

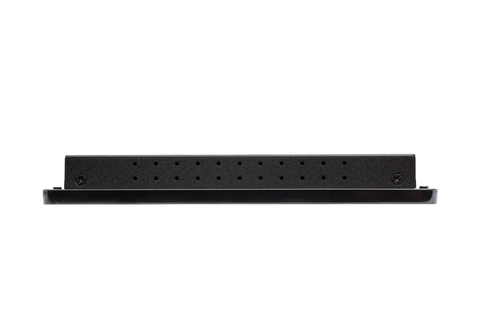

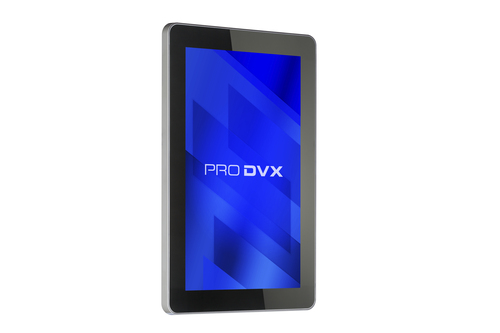

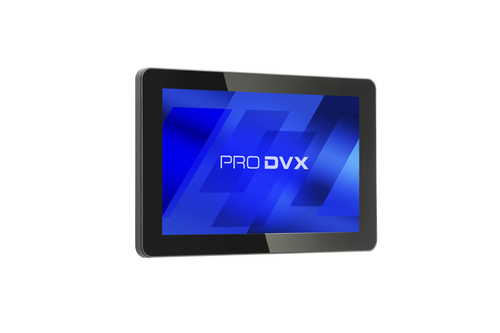

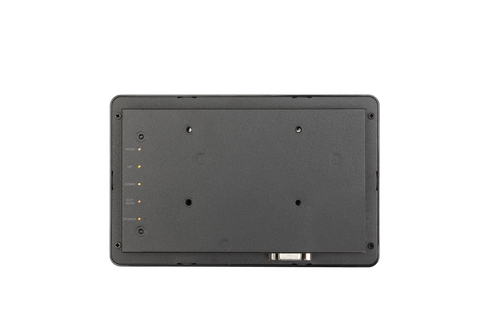

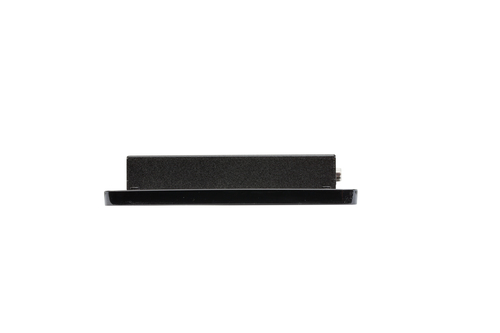

TMP-07
Model TMP-07Part no. 10101207.107EAN 2000001013625
43 specifications Checked today
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- Weight450 g
- ColourBlack
- NVIDIA G-SYNCNo
- VGA (D-Sub) ports quantity1
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Weight
- 450 g
- Colour
- Black
- NVIDIA G-SYNC
- No
- VGA (D-Sub) ports quantity
- 1
- Brand
- ProDVX
- Category
- Monitor
- Model
- TMP-07
- Part numbers
- 10101207.107, 3007100
- EAN / UPC
- 2000001013625
- Also known as
- ProDVX TMP-07
Specifications
43 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1024 x 600 pixels |
| Native aspect ratio | 17:10 |
| Display technology | LCD |
| Touchscreen | Yes |
| Panel type | TFT |
| LED backlight | Yes |
| Backlight type | Edge LED |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 240 cd/m² |
| Display brightness | 240 cd/m² |
| Screen shape | Flat |
| Contrast ratio (typical) | 600:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 130° |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Metal |

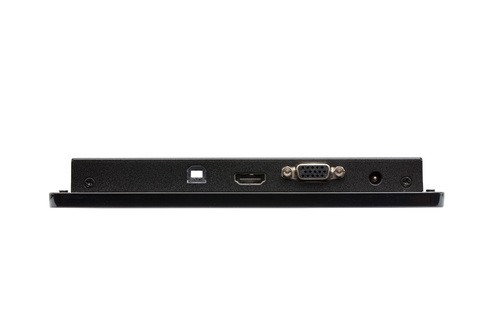

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
| AC adapter output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 188 mm |
| Depth (without stand) | 24 mm |
| Height (without stand) | 120 mm |
| Weight (without stand) | 450 g |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Depth | 24 mm |
| Height | 120 mm |
| Weight | 450 g |
| Width | 188 mm |
| Certification | FCC, CE, RoHS |
