Brilliance UltraWide LCD Display with MultiView BDM3470UP/75

Model BDM3470UP/75EAN 8712581721022

125 specifications Checked today

Display86.4 cm (34")
Resolution3440 x 1440 pixels
Energy classC
ColourBlack, Silver
Windows operating systems supportedYes
Power consumption (typical)29 W

See all specifications

Overview

Display: 86.4 cm (34")
Resolution: 3440 x 1440 pixels
Energy class: C
Colour: Black, Silver
Windows operating systems supported: Yes
Power consumption (typical): 29 W

Brand: Philips
Category: Monitor
Model: BDM3470UP/75
Part number: BDM3470UP/75
EAN / UPC: 8712581721022
Also known as: Philips Brilliance UltraWide LCD Display with MultiView BDM3470UP/75

Specifications

125 specifications in 15 groups

Display

Specification	Value
Display diagonal	86.4 cm (34")
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Display technology	LED
Touchscreen	No
HD type	UltraWide Quad HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	320 cd/m²
Response time	14 ms
Screen shape	Flat
Supported graphics resolutions	3440 x 1440
Supported video modes	1080p
Aspect ratio	21:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	40000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
SmartResponse	5 ms
Pixel pitch	0.232 x 0.232 mm
Horizontal scan range	30 - 99 kHz
Vertical scan range	23 - 80 Hz
Viewable size, horizontal	80 cm
Viewable size, vertical	33.5 cm
Sync-on-green (SOG)	Yes
Display diagonal (metric)	86.7 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	34 inch / 86.7 cm

Performance

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in camera	No

Design

Specification	Value
Product colour	Black, Silver
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
PC Audio in	Yes
HDCP	Yes
Mobile High-Definition Link (MHL)	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	18 cm

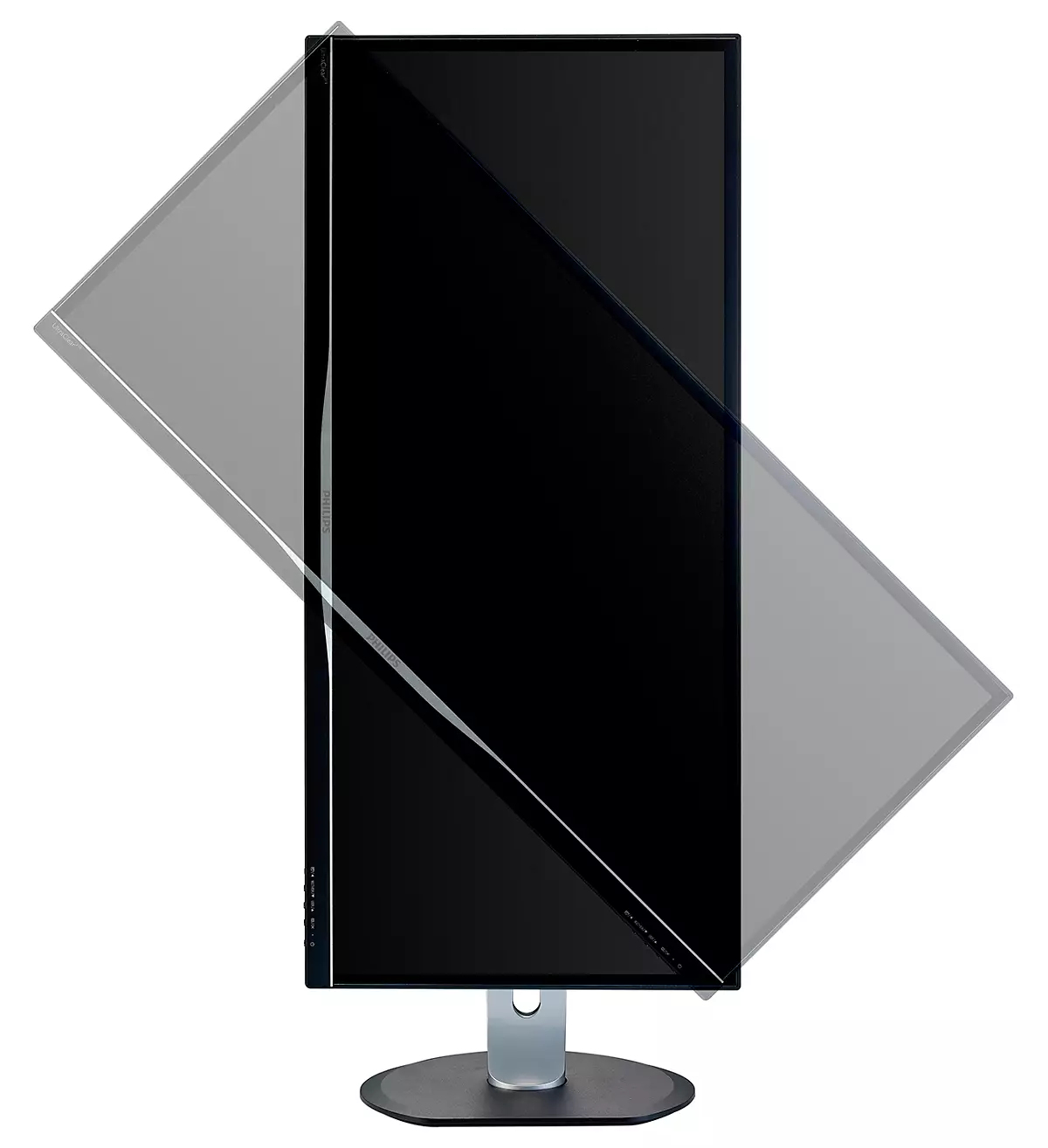

Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-170 - 170°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	29 W
Power consumption (standby)	0.4 W
Power consumption (average)	63 W
Power consumption (off)	0 W
Power consumption (PowerSave)	25.9 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Annual energy consumption	92 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	828 mm
Depth (with stand)	270 mm
Height (with stand)	627 mm
Weight (with stand)	9.46 kg
Width (without stand)	828 mm
Depth (without stand)	62 mm
Height (without stand)	378 mm
Weight (without stand)	6.52 kg

Packaging data

Specification	Value
Package width	934 mm
Package depth	224 mm
Package height	594 mm
Package weight	14.3 kg

Packaging content

Specification	Value
Stand included	Yes
Bundled software	SmartControl

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
On/off switch	Yes
TV tuner integrated	No
Picture-by-Picture (PbP)	Yes
Exterior finish type	Textured
ECO mode	Yes
Energy efficiency class (legacy scale)	C
Heavy metals free	Hg (mercury), Pb (lead)
Monitor sync input signal	Separate Sync; Sync on Green
Power consumption (economy mode)	40.8 W
Signal input	VGA (Analog ); DVI-Dual Link (digital, HDCP); DisplayPort x 1; HDMI 2.0 x 1
Mean time between failures (MTBF)	30000 h
Certification	RoHS, BSMI, CCC, CE Mark, cETLus, FCC Class B, SEMKO, TCO 6.0, TUV Ergo, TUV/GS, WEEE, CECP, CU-EAC, EPA, KC, PSB, PSE, VCCI
MultiView	PIP/PBP mode; 2x devices
Picture enhancement	SmartImage
Regulatory Approvals	CE Mark; cETLus; FCC Class B; CU-EAC; RCM; SEMKO
User controls	SmartImage; Multiview; User; Menu; Power On/Off
Supplied AC adapter type	LED

Recycling data

Specification	Value
Overall recyclability rate	100%
Packaging recyclability rate	100%
Product post-consumer recycled plastic	65%

Thin Client

Specification	Value
Thin client installed	No
