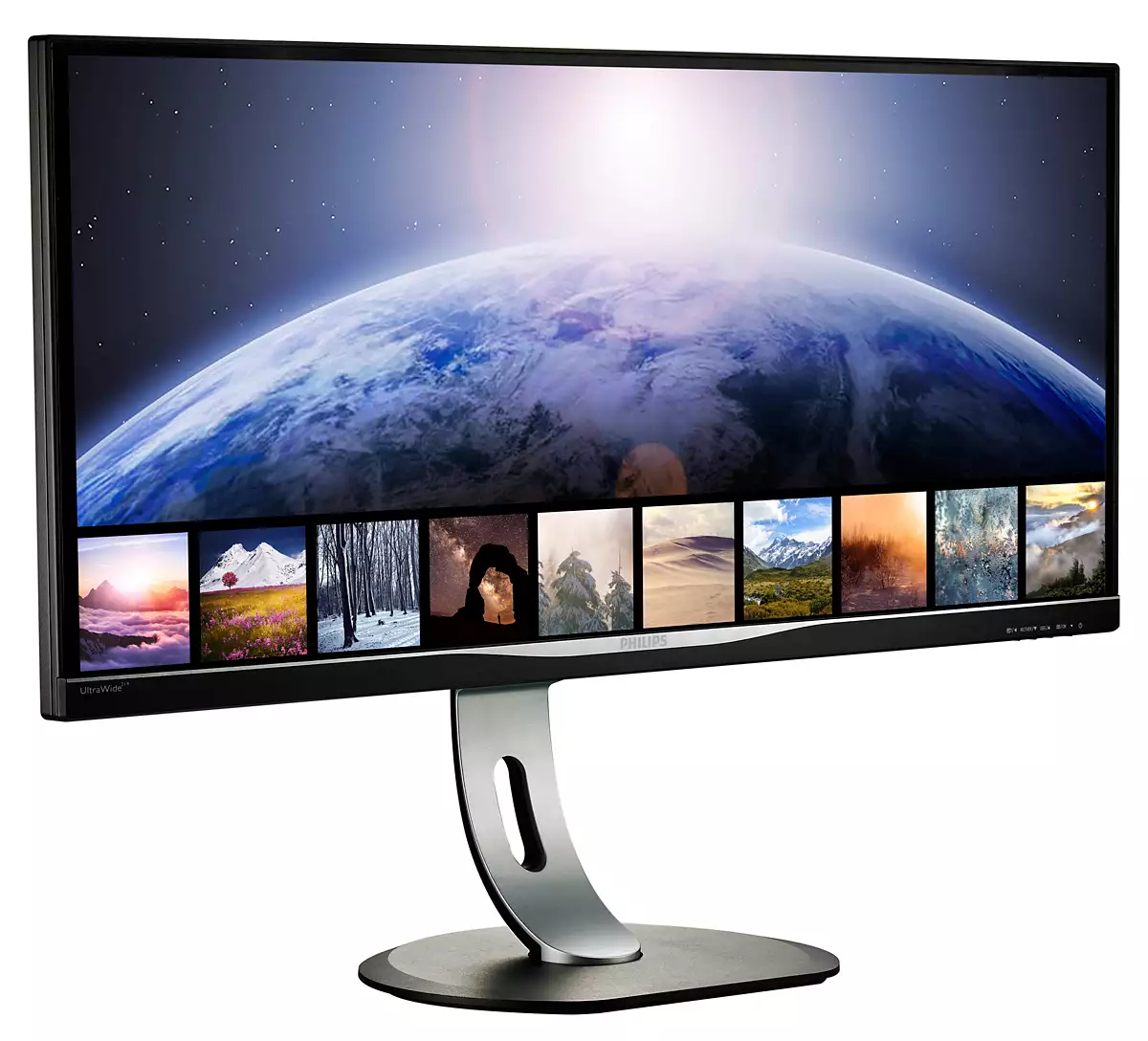

Brilliance BDM3470FP/01 computer monitor

86.4 cm (34") 2560 x 1080 pixels WXGA LED Black

Model BDM3470FP/01EAN 8712581745660

123 specifications Checked today

Display86.4 cm (34")
Resolution2560 x 1080 pixels
Energy classNot available
ColourBlack
NVIDIA G-SYNCNo
VESA mountingYes

See all specifications

Overview

Display: 86.4 cm (34")
Resolution: 2560 x 1080 pixels
Energy class: Not available
Colour: Black
NVIDIA G-SYNC: No
VESA mounting: Yes

Brand: Philips
Category: Monitor
Model: BDM3470FP/01
Part number: BDM3470FP/01
EAN / UPC: 8712581745660
Also known as: Philips Brilliance BDM3470FP/01 computer monitor 86.4 cm (34") 2560 x 1080 pixels WXGA LED Black

Specifications

123 specifications in 16 groups

Display

Specification	Value
Display diagonal	86.4 cm (34")
Display resolution	2560 x 1080 pixels
Native aspect ratio	21:9
Display technology	LED
Touchscreen	No
HD type	WXGA
Panel type	AH-IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Display brightness (min)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	2560 x 1080
Aspect ratio	21:9
Contrast ratio (typical)	1000:1
Dynamic contrast ratio marketing name	SmartContrast
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	80 cm
Viewable size, vertical	33.5 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	86.6 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	34 inch / 86.6 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
HDMI ports quantity	1
Headphone out	Yes
HDCP	Yes
Mobile High-Definition Link (MHL)	Yes

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	18 cm

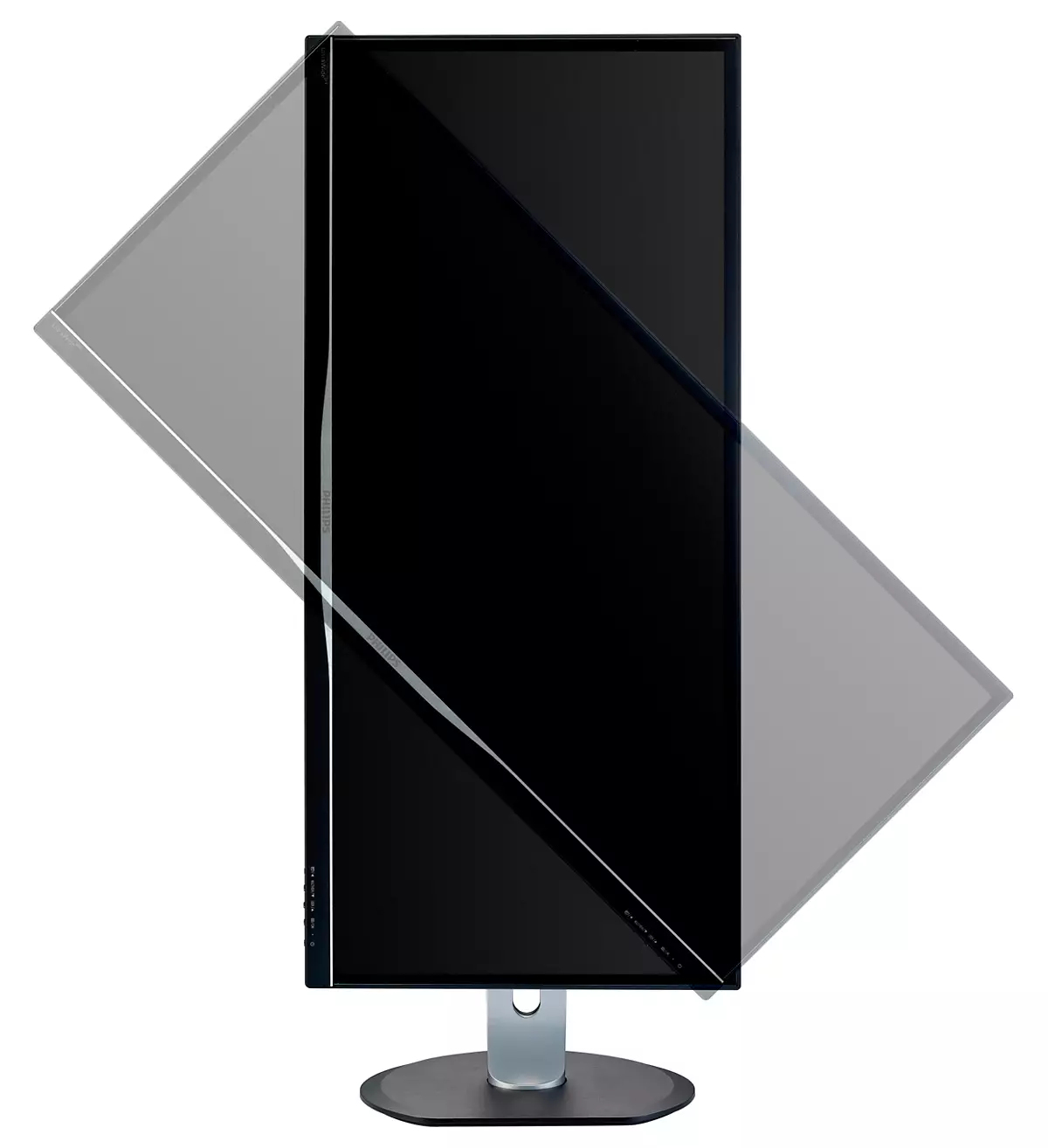

Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-170 - 170°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Energy efficiency class (SDR)	Not available
Energy efficiency class (HDR)	Not available
Power consumption (typical)	30.8 W
Power consumption (standby)	0.5 W
Power consumption (off)	0 W
Power consumption (PowerSave)	20.9 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	828 mm
Depth (with stand)	270 mm
Height (with stand)	627 mm
Weight (with stand)	8.9 kg
Width (without stand)	828 mm
Depth (without stand)	58 mm
Height (without stand)	378 mm
Weight (without stand)	5.9 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	934 x 594 x 224 mm
Package width	934 mm
Package depth	224 mm
Package height	594 mm
Package weight	13.5 kg

Packaging content

Specification	Value
Stand included	Yes
Manual	Yes
Bundled software	SmartControl

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
On/off switch	Yes
TV tuner integrated	No
Picture-by-Picture (PbP)	Yes
Miracast	No
Exterior finish type	Textured
ECO mode	Yes
Effective viewing area	799.8 x 334.8 mm
Heavy metals free	Hg (mercury), Pb (lead)
Monitor sync input signal	Separate Sync; Sync on Green
Power consumption (economy mode)	20.9 W
Signal input	VGA (Analog ); DVI-Dual Link (digital, HDCP); MHL-HDMI (digital, HDCP)
Mercury content	0 mg
Mean time between failures (MTBF)	70000 h
Certification	RoHS, CCC, WEEE, BSMI, TCO
MultiView	PIP/PBP mode; 2x devices
Picture enhancement	SmartImage
Regulatory Approvals	CCC; WEEE; CE Mark; cETLus; TCO Certified
User controls	SmartImage; Multiview; User; Menu; Power On/Off

Recycling data

Specification	Value
Packaging recyclability rate	100%

Thin Client

Specification	Value
Thin client installed	No
