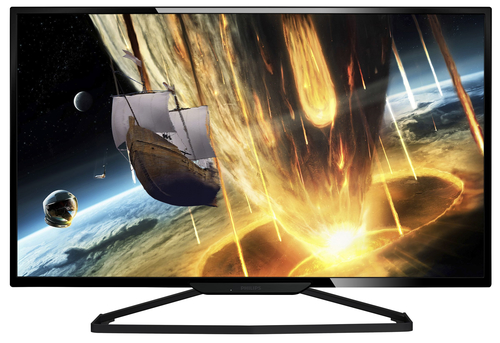

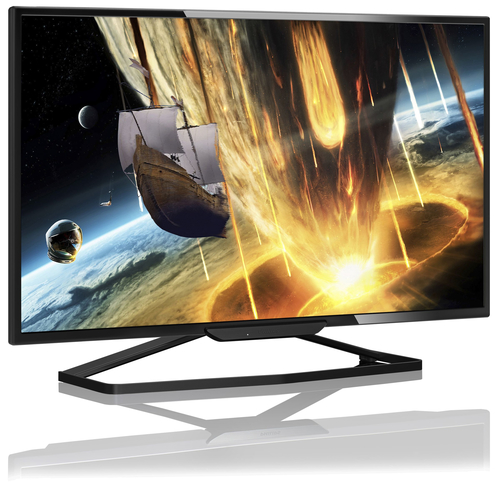

Signage Solutions LED-backlit LCD Display BDM3201FD/75
Model BDM3201FD/75EAN 8712581738600
80 specifications Checked today
- Display80 cm (31.5")
- Resolution1920 x 1080 pixels
- ColourBlack
- Windows operating systems supportedYes
- Built-in USB hubNo
- Power consumption (typical)39.43 W
Overview
- Display
- 80 cm (31.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Windows operating systems supported
- Yes
- Built-in USB hub
- No
- Power consumption (typical)
- 39.43 W
- Brand
- Philips
- Category
- Monitor
- Model
- BDM3201FD/75
- Part number
- BDM3201FD/75
- EAN / UPC
- 8712581738600
- Also known as
- Philips Signage Solutions LED-backlit LCD Display BDM3201FD/75
Specifications
80 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS-ADS |
| Backlight type | W-LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 3 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.364 x 0.364 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 39.43 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 726 mm |
| Depth (with stand) | 180 mm |
| Height (with stand) | 495 mm |
| Weight (with stand) | 6.3 kg |
| Width (without stand) | 726 mm |
| Depth (without stand) | 88 mm |
| Height (without stand) | 435 mm |
| Weight (without stand) | 5.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 863 mm |
| Package depth | 186 mm |
| Package height | 581 mm |
| Package weight | 8.59 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| ECO mode | No |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Power consumption (economy mode) | 18.69 W |
| Mean time between failures (MTBF) | 30000 h |
| Certification | RoHS, CCC, CEL, BSMI, PSB, CE Mark, RCM, VCCI, WEEE |
| Supplied AC adapter type | LED |
Recycling data
| Specification | Value |
|---|---|
| Overall recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
