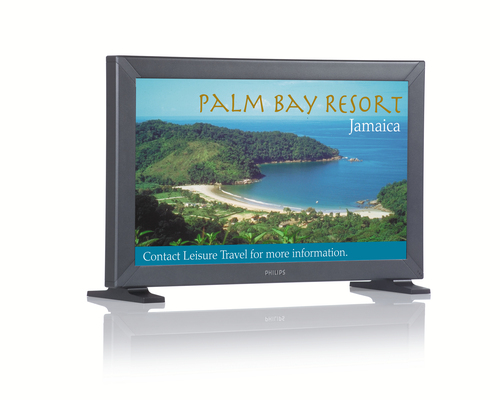

BDL3221V 32" multimedia WXGA LCD monitor
Model BDL3221V/27
73 specifications Checked today
- Display81.3 cm (32")
- Resolution1366 x 768 pixels
- ColourBlack
- RMS rated power20 W
- USB Type-A downstream ports quantity0
- BluetoothNo
Overview
- Display
- 81.3 cm (32")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- RMS rated power
- 20 W
- USB Type-A downstream ports quantity
- 0
- Bluetooth
- No
- Brand
- Philips
- Category
- Monitor
- Model
- BDL3221V/27
- Part number
- BDL3221V/27
- Also known as
- Philips BDL3221V 32" multimedia WXGA LCD monitor
Specifications
73 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 81.3 cm (32") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | HD |
| Display brightness (typical) | 500 cd/m² |
| Response time | 8 ms |
| Supported graphics resolutions | 720 x 400, 1280 x 768 |
| Supported video modes | 720p, 1080i |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.170 x 0.511 mm |
| Horizontal scan range | 30 - 63 kHz |
| Vertical scan range | 56 - 75 Hz |
| Digital horizontal frequency | 30 - 63 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Colour gamut standard | sRGB |
| Display panel size | 32" / 81.28cm |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI | No |
| HDMI ports quantity | 0 |
| Audio output | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| PC Audio in | Yes |
| HDCP | Yes |
| AC (power) in | Yes |
| Composite video in | 1 |
| Composite video out | 1 |
| SCART ports quantity | 1 |
| PC Audio out | No |
| Component video (YPbPr/YCbCr) in | 1 |
| RS-232 ports | 2 |
| S-Video inputs quantity | 1 |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 200 x 200 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 100 W |
| Power consumption (off) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Relative humidity | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 794 mm |
| Depth (without stand) | 130 mm |
| Height (without stand) | 490 mm |
| Weight (without stand) | 19.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | VGA |
| Remote control included | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Swivel webcam | No |
| TV tuner integrated | No |
| AV input | YPbPr x 1, Audio (L/R) f/YPbPr x1, CVBS x1, Audio (L/R) x1, S-video x 1, SCART x 1 |
| Power requirements | 90 -264V, 50 - 60Hz |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | C-Tick CE Mark FCC-B, UL, CSA MPRII TÜV/GS |
| Picture enhancement | 3D_Combfilter, PiP, ProgressiveScan |
| Set depth (inch) | 13 cm (5.12") |
| Set height (inch) | 49 cm (19.3") |
| Supplied AC adapter type | AC |
