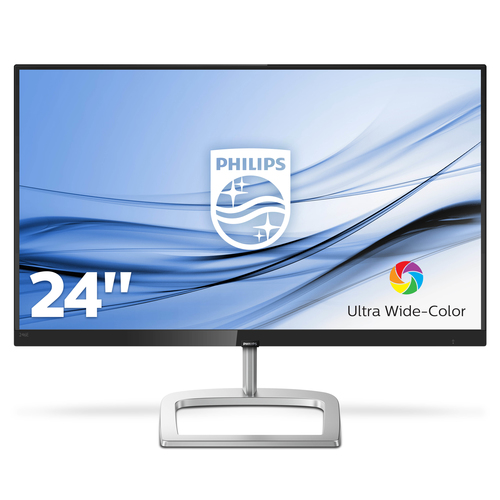

E Line LCD monitor with Ultra Wide-Color 246E9QSB/00

Model 246E9QSB/00EAN 8712581750640

125 specifications Checked today

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
Energy classA
ColourBlack, Silver
Flicker-free technologyYes
Built-in speaker(s)No

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Energy class: A
Colour: Black, Silver
Flicker-free technology: Yes
Built-in speaker(s): No

Brand: Philips
Category: Monitor
Model: 246E9QSB/00
Part number: 246E9QSB/00
EAN / UPC: 8712581750640
Also known as: Philips E Line LCD monitor with Ultra Wide-Color 246E9QSB/00

Specifications

125 specifications in 14 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	4 ms
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Dynamic contrast ratio marketing name	SmartContrast
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.275 x 0.275 mm
Pixel density	93 ppi
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	50 - 76 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	60.5 cm
DDC/CI	Yes
Haze rate	25%
Surface hardness	3H
Colour gamut standard	sRGB, NTSC
Colour gamut	108%
sRGB coverage (typical)	129%
NTSC coverage (typical)	108%
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	23.8 inch / 60.5 cm

Performance

Specification	Value
Component video sync	Separate Sync, Sync-on-green (SOG)
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black, Silver
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Silver

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
DisplayPorts quantity	0
Audio input	No
Headphone out	No
HDCP	Yes
DC-in jack	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	13.04 W
Power consumption (standby)	0.5 W
Power consumption (max)	25 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External
Annual energy consumption	36 kWh
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	540 mm
Depth (with stand)	190 mm
Height (with stand)	416 mm
Weight (with stand)	2.9 kg
Width (without stand)	540 mm
Depth (without stand)	39 mm
Height (without stand)	326 mm
Weight (without stand)	2.34 kg

Packaging data

Specification	Value
Package width	586 mm
Package depth	141 mm
Package height	477 mm
Package weight	4.28 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Gloss
Compliance certificates	RoHS
EasyRead mode	Yes
Energy efficiency class (legacy scale)	A
Heavy metals free	Hg (mercury), Pb (lead)
LowBlue mode	Yes
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog ); DVI-D (digital, HDCP)
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, FCC Class B, CU-EAC, TUV/ISO9241-307, BSMI, MEPS, RCM, VCCI, CB, cETLus, ICES-003, TUV-BAUART, UKRAINIAN
Picture enhancement	SmartImage Lite
Regulatory Approvals	CE Mark; FCC Class B; CU-EAC; TUV/ISO9241-307; BSMI; MEPS; RCM; VCCI; CB; cETLus; ICES-003; TUV-BAUART; UKRAINIAN
User controls	Power On/Off; Menu; Brightness; Input; SmartImage lite
Supplied AC adapter type	AC

Recycling data

Specification	Value
Packaging recyclability rate	100%
