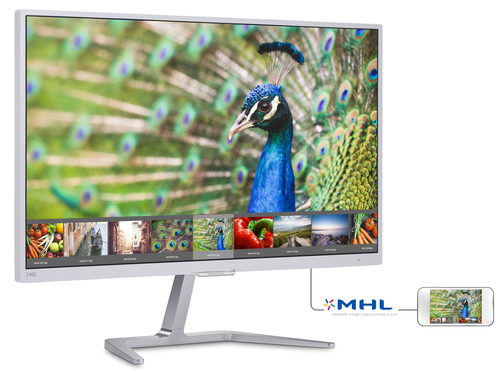

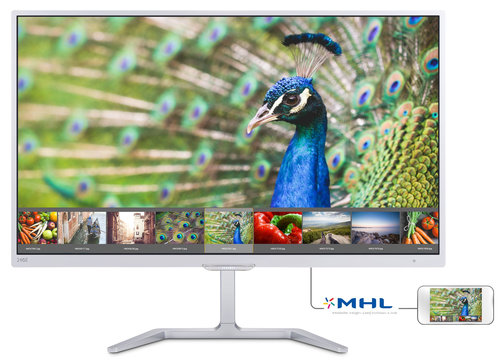

E Line 246E7QDSW/61 computer monitor

59.9 cm (23.6") 1920 x 1080 pixels Full HD LED White

Model 246E7QDSW/61EAN 8712581746766

94 specifications Checked today

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ColourWhite
NVIDIA G-SYNCNo
VESA mountingYes
Power consumption (typical)14.47, 19.43

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Colour: White
NVIDIA G-SYNC: No
VESA mounting: Yes
Power consumption (typical): 14.47, 19.43

Brand: Philips
Category: Monitor
Model: 246E7QDSW/61
Part number: 246E7QDSW/61
EAN / UPC: 8712581746766
Also known as: Philips E Line 246E7QDSW/61 computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED White

Specifications

94 specifications in 14 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Gloss
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.272 x 0.272 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	52.1 cm
Viewable size, vertical	29.3 cm
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
Colour gamut	101.4%
3D	No
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages	21
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	14.47, 19.43
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	539 x 419 x 179 mm
Width (with stand)	539 mm
Depth (with stand)	179 mm
Height (with stand)	419 mm
Weight (with stand)	3.18 kg
Width (without stand)	539 mm
Depth (without stand)	45 mm
Height (without stand)	324 mm
Weight (without stand)	2.61 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	581 x 490 x 102 mm
Package width	581 mm
Package depth	102 mm
Package height	490 mm
Package weight	5.13 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Analog signal format system	NTSC
Effective viewing area	521.28 x 293.22 mm
Heavy metals free	Hg (mercury), Pb (lead)
No flickering	Yes
Mean time between failures (MTBF)	50000 h
Certification	RoHS, CE Mark, FCC Class B, CUEAC, TCO certified, TUV/ISO9241-307, VCCI, Ctick, WEEE, CECP, KC, KCC
Convenience enhancements	Power On/Off, Menu, Volume (HDMI Audio out), Input, SmartImage lite
Picture enhancement	SmartImage Lite
Supplied AC adapter type	LCD

Recycling data

Specification	Value
Overall recyclability rate	100%

Thin Client

Specification	Value
Thin client installed	No
