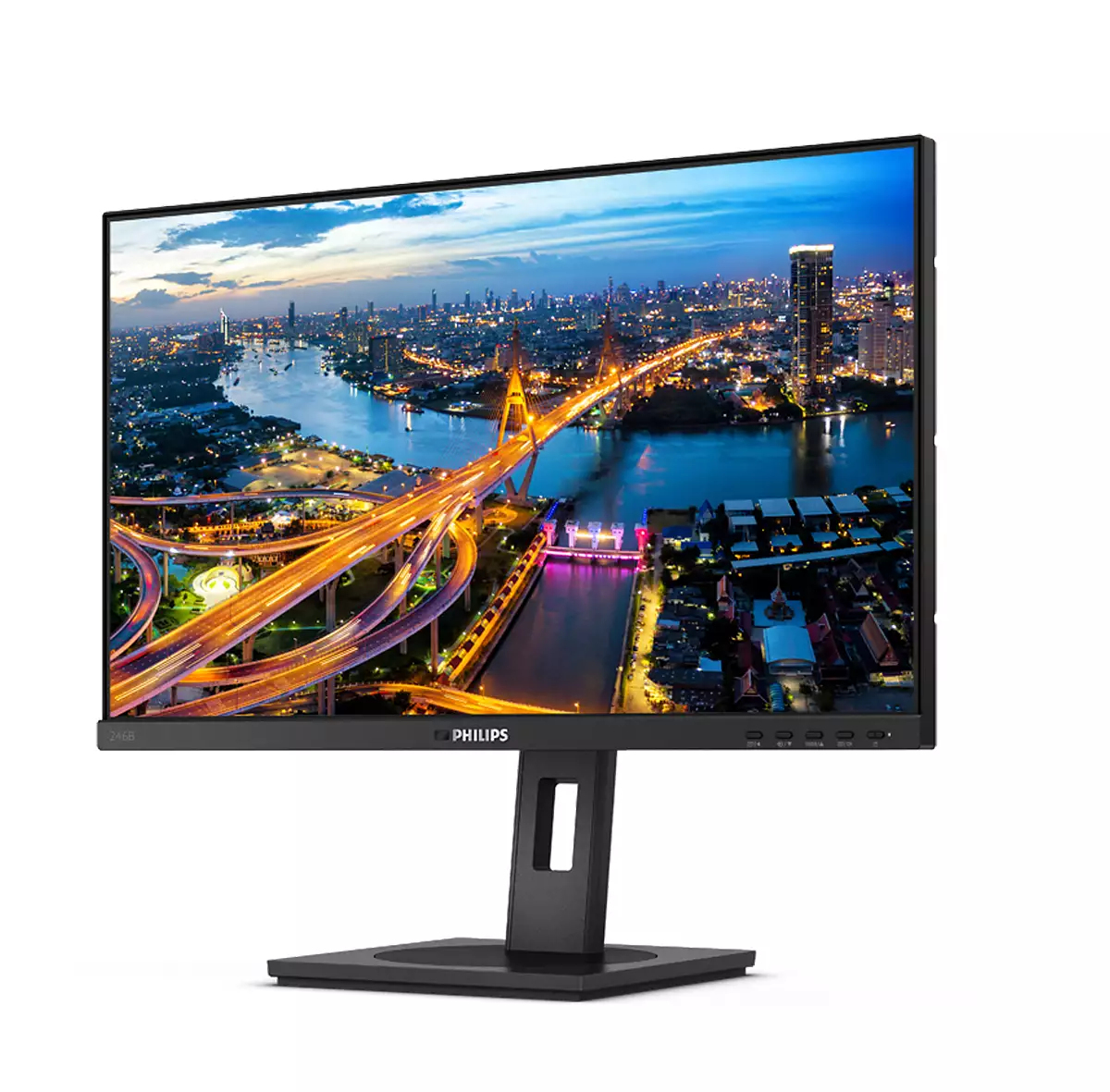

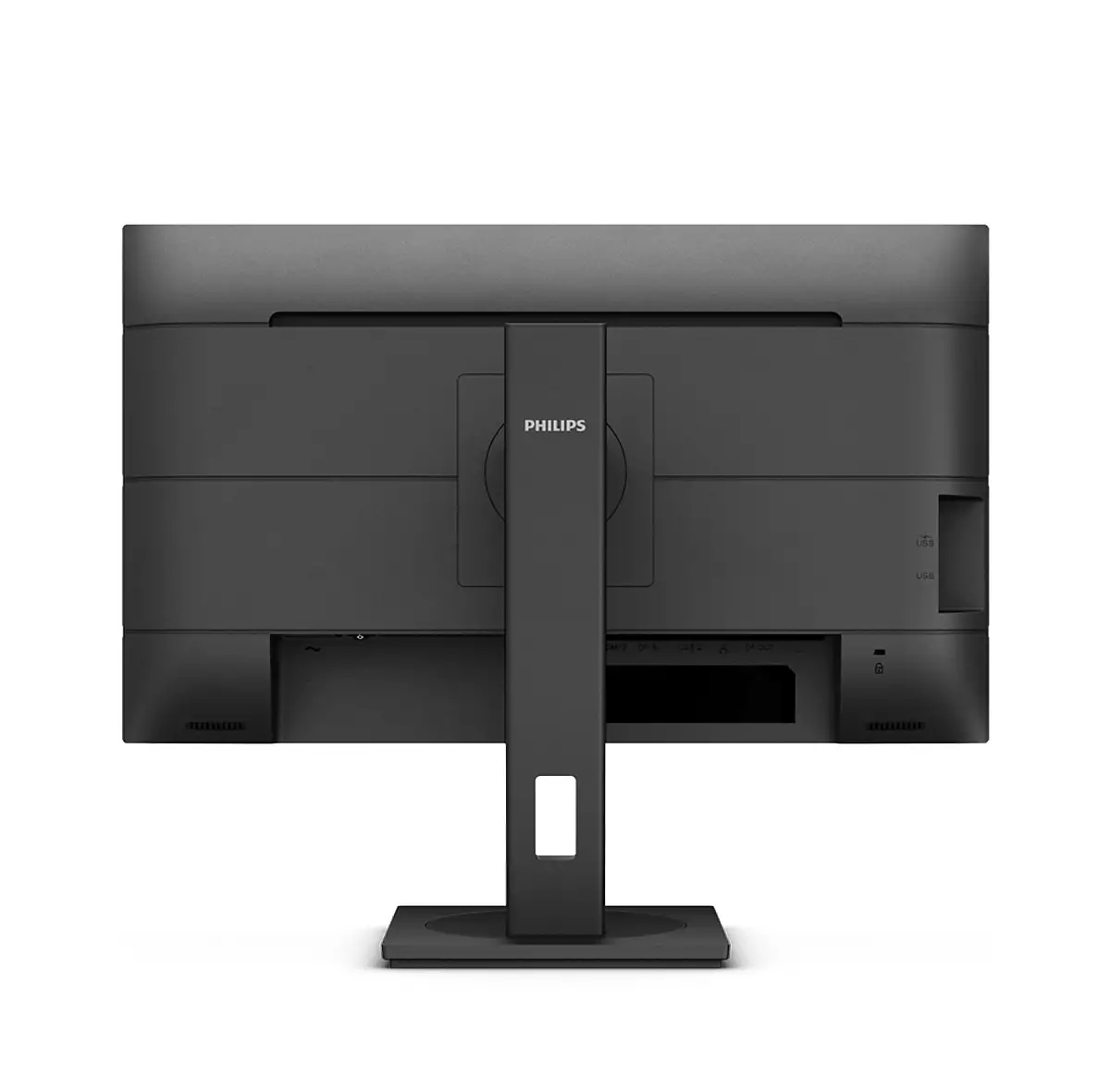

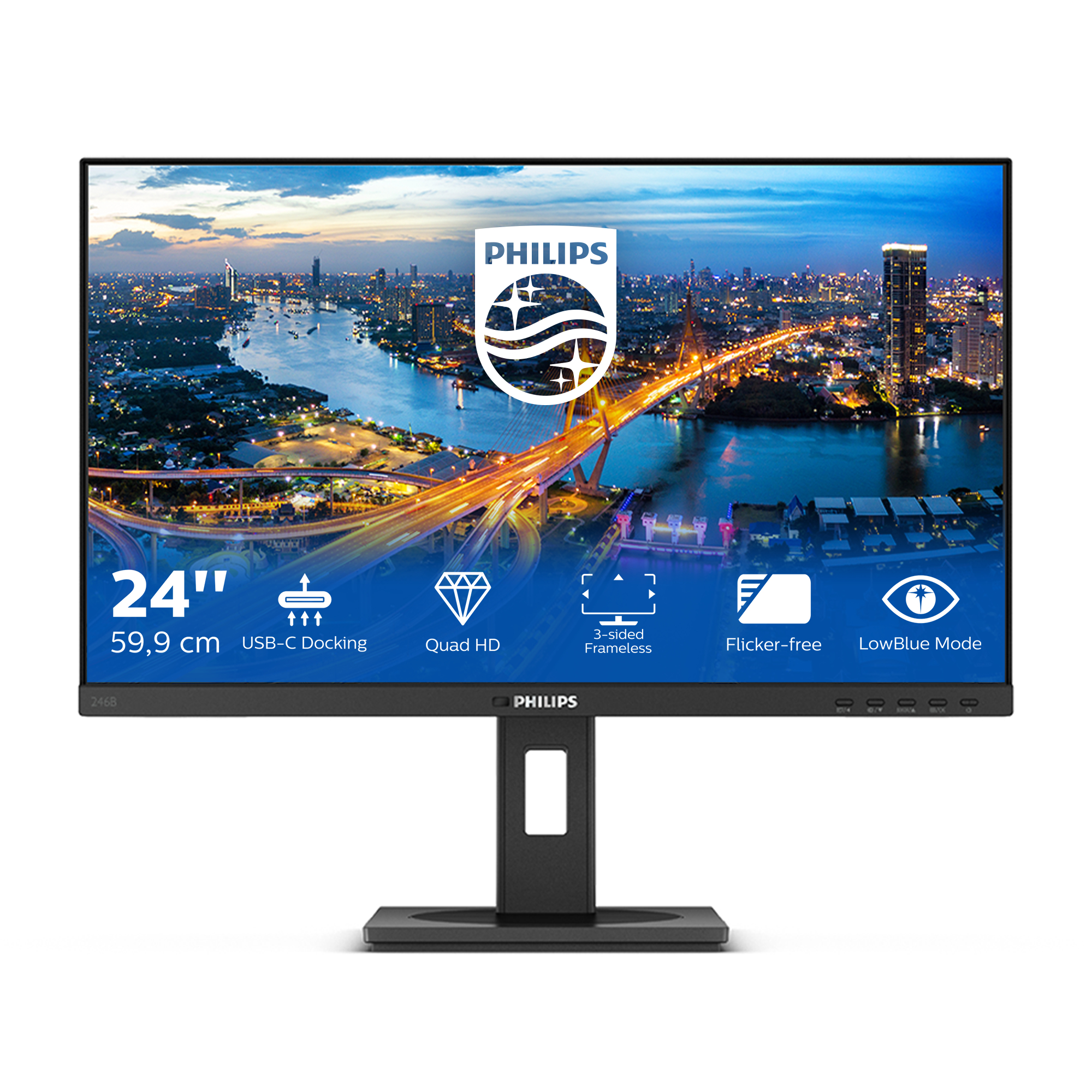

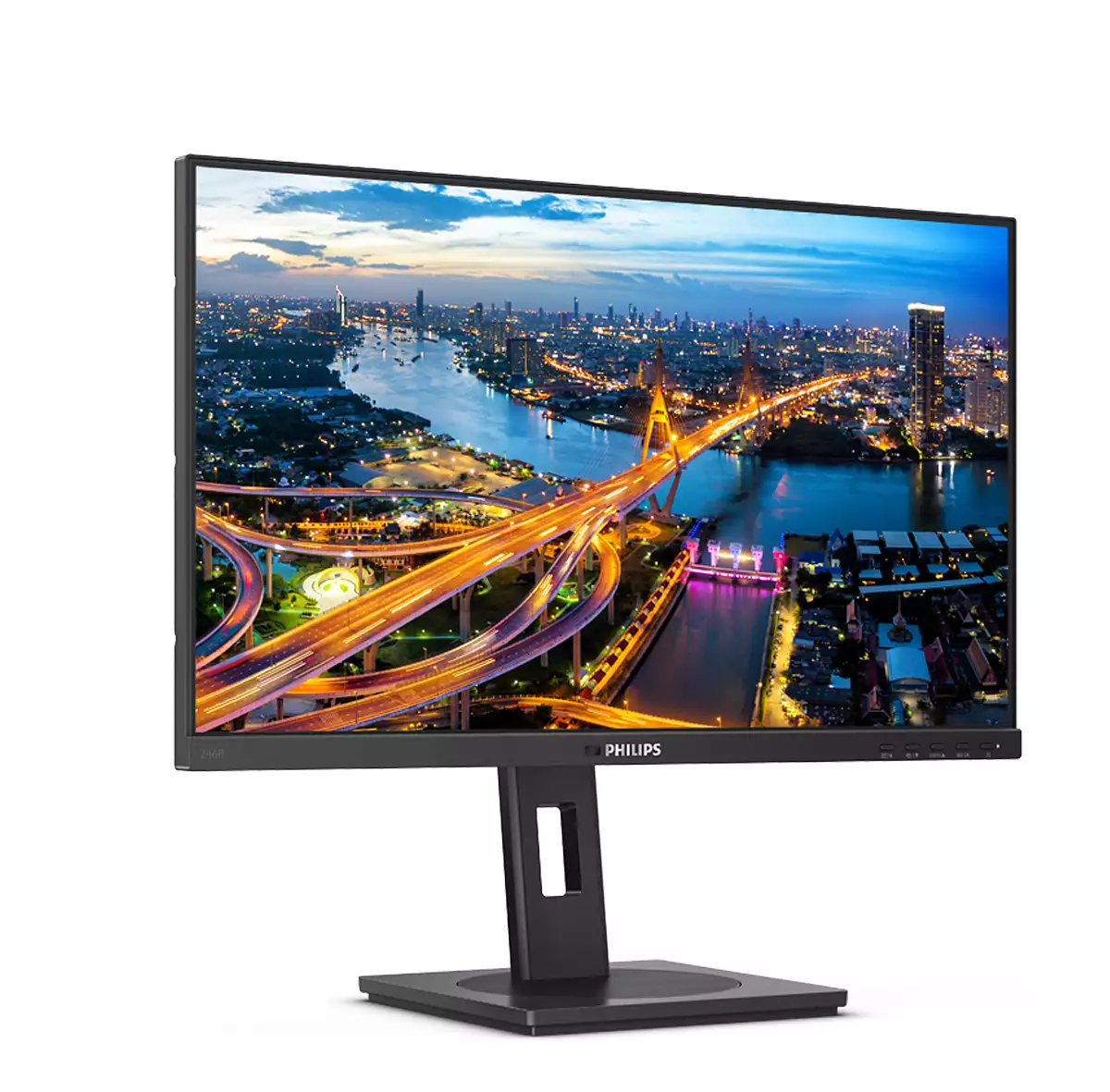

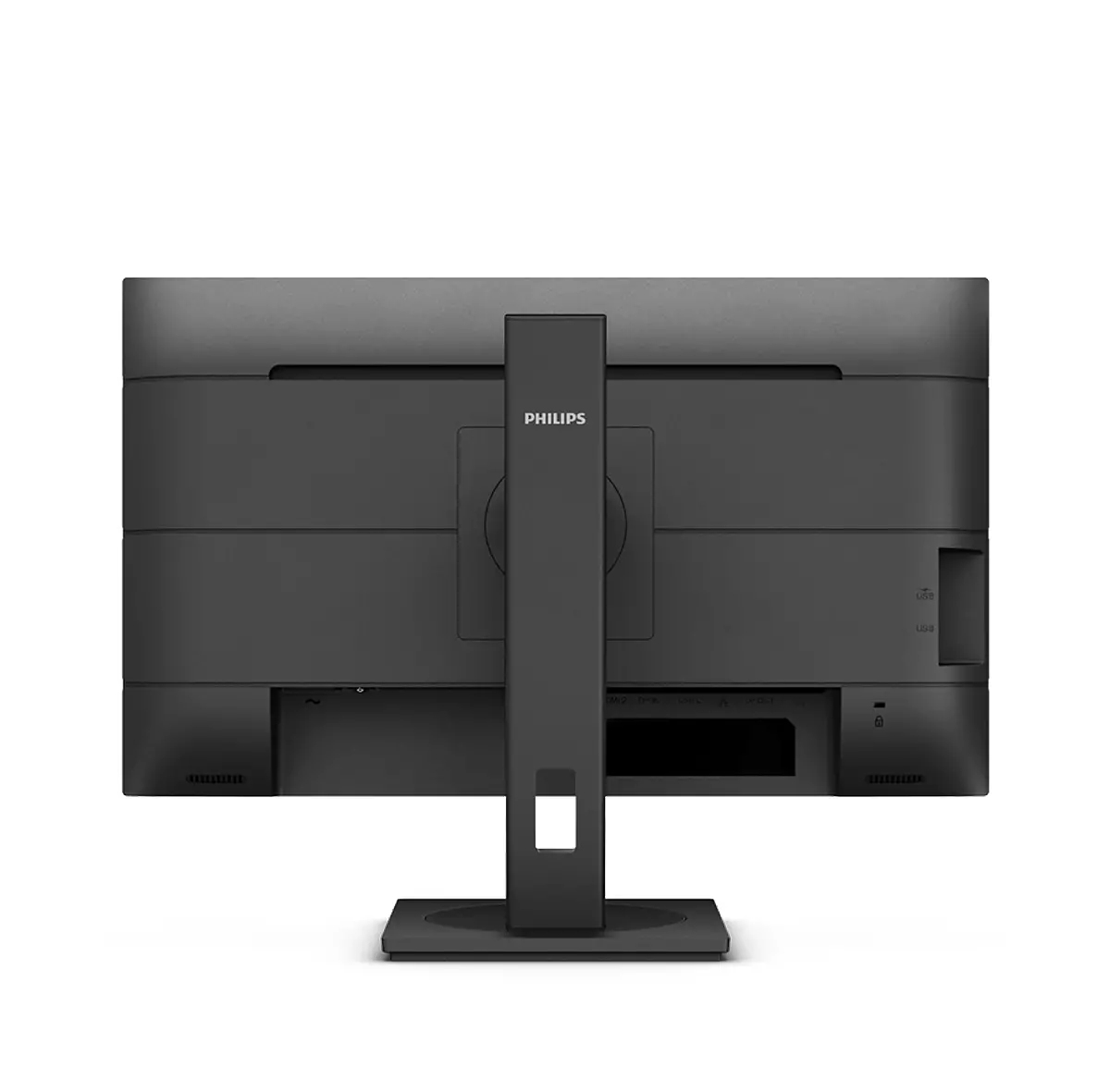

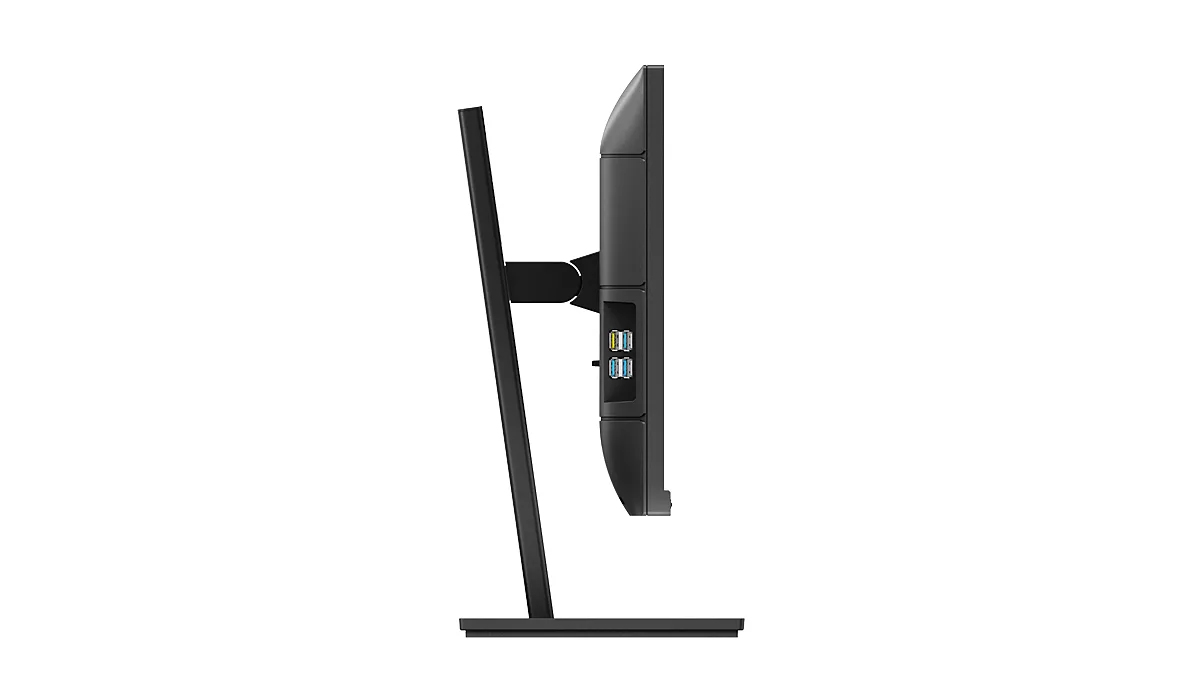

B Line 246B1/01 computer monitor

60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Model 246B1/01EAN 8712581776190

141 specifications Checked today

Display60.5 cm (23.8")
Resolution2560 x 1440 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 2560 x 1440 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Philips
Category: Monitor
Model: 246B1/01
Part number: 246B1/01
EAN / UPC: 8712581776190
Also known as: Philips B Line 246B1/01 computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black

Specifications

141 specifications in 15 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	4 ms
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	50000000:1
Dynamic contrast ratio marketing name	SmartContrast
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2058 x 0.2058 mm
Pixel density	123 ppi
Horizontal scan range	30 - 114 kHz
Vertical scan range	48 - 75 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Display diagonal (metric)	60.5 cm
DDC/CI	Yes
Haze rate	25%
Surface hardness	3H
Colour gamut standard	sRGB, NTSC
Colour gamut	99%
sRGB coverage (typical)	116%
NTSC coverage (typical)	99%
Display sRGB	Yes
Display panel size	23.8 inch/60.5 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Component video sync	Separate Sync
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
HDMI	Yes
HDMI ports quantity	2
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort out quantity	1
DisplayPort version	1.4
Audio output	Yes
HDCP	Yes
HDCP version	2.2
DisplayPort output	Yes
I/O ports	USB-C x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-180 - 180°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	17 W
Power consumption (standby)	0.3 W
Power consumption (off)	0 W
Power consumption (PowerSave)	15.2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	540 mm
Depth (with stand)	205 mm
Height (with stand)	500 mm
Weight (with stand)	5.56 kg
Width (without stand)	540 mm
Depth (without stand)	51 mm
Height (without stand)	323 mm
Weight (without stand)	3.96 kg

Packaging data

Specification	Value
Package width	600 mm
Package depth	198 mm
Package height	406 mm
Package weight	8.23 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	HDMI, DisplayPort, USB Type-C, AC
Quick start guide	Yes
Manual	Yes
Bundled software	SmartControl

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
HBR3 support	Yes
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
USB Power Delivery revision	3.0
Exterior finish type	Textured
Compliance certificates	RoHS
EasyRead mode	Yes
Heavy metals free	Hg (mercury)
Light sensor	Yes
LowBlue mode	Yes
Monitor sync input signal	Separate Sync
Mean time between failures (MTBF)	70000 h
Ethernet LAN data rates	10,100,1000 Mbit/s
Certification	CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified
Picture enhancement	SmartImage
Regulatory Approvals	CB; TUV/GS; TUV Ergo; SEMKO; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified
User controls	SmartImage; Input; PowerSensor; Menu; Power On/Off
Wake-on-LAN	Yes

Recycling data

Specification	Value
Packaging recyclability rate	100%
Product post-consumer recycled plastic	85%
