B Line QHD LCD Monitor with PowerSensor 242B7QPTEB/00

Model 242B7QPTEB/00EAN 4058154321485

133 specifications Checked today

Display60.5 cm (23.8")
Resolution2560 x 1440 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 2560 x 1440 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Philips
Category: Monitor
Model: 242B7QPTEB/00
Part number: 242B7QPTEB/00
EAN / UPC: 4058154321485, 8712581741594
Also known as: Philips B Line QHD LCD Monitor with PowerSensor 242B7QPTEB/00

Specifications

133 specifications in 14 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	2K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes	1080p, 1440p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.205 x 0.205 mm
Pixel density	123 ppi
Horizontal scan range	30 - 99 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	53 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 99 kHz
Digital vertical frequency	50 - 76 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	60.3 cm
DDC/CI	Yes
Haze rate	25%
Surface hardness	3H
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	23.8 inch / 60.3 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Component video sync	Separate Sync, Sync-on-green (SOG)
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort out quantity	1
Audio input	No
Headphone out	Yes
Headphone outputs	1
PC Audio in	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm

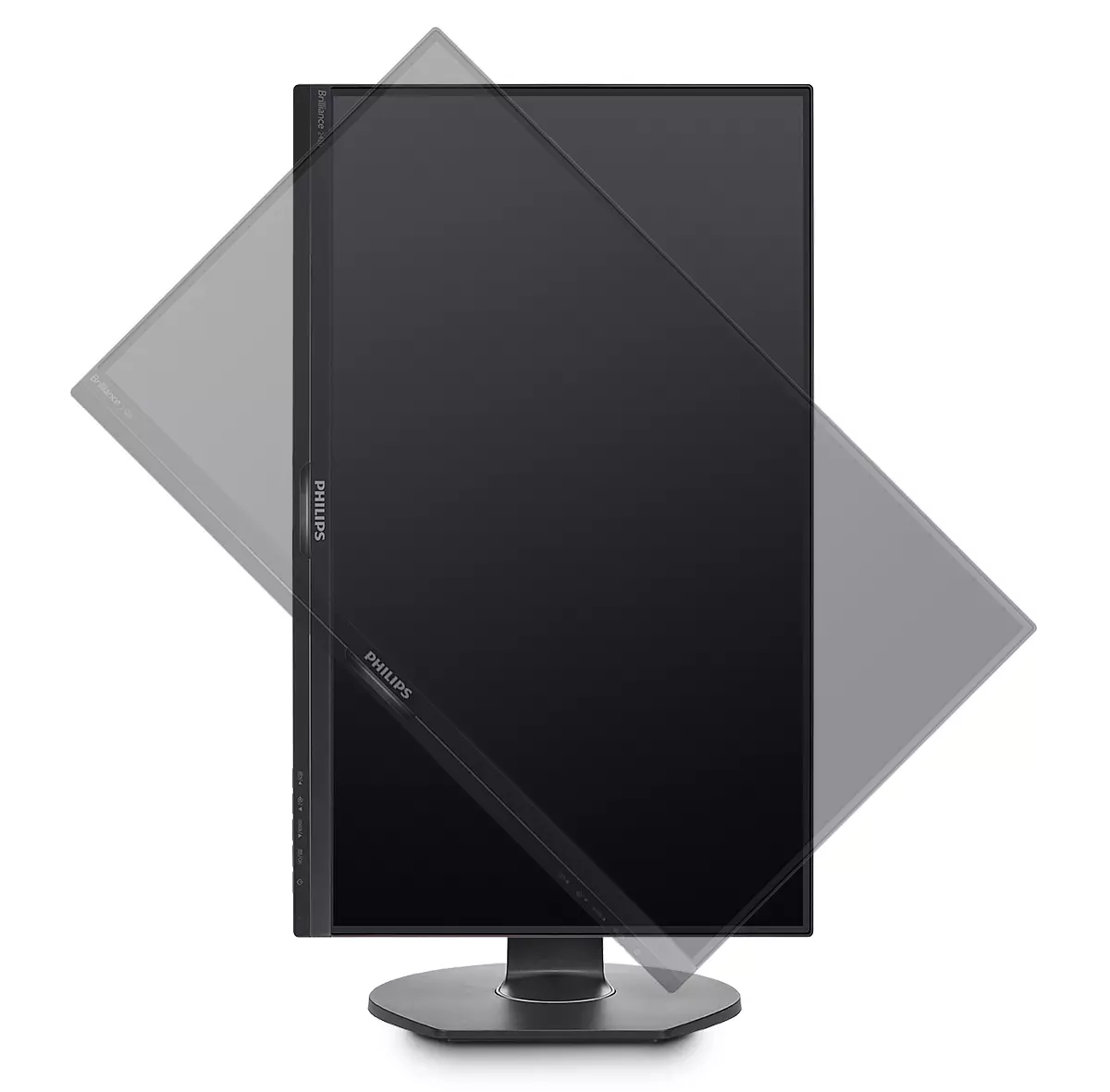

Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-175 - 175°
Tilt adjustment	Yes
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Energy efficiency class (SDR)	E
Power consumption (typical)	13.84 W
Power consumption (standby)	0.3 W
Power consumption (off)	0 W
Power consumption (PowerSave)	16.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	541 mm
Depth (with stand)	257 mm
Height (with stand)	527 mm
Weight (with stand)	6.33 kg
Width (without stand)	541 mm
Depth (without stand)	57 mm
Height (without stand)	332 mm
Weight (without stand)	3.9 kg

Packaging data

Specification	Value
Package width	603 mm
Package depth	224 mm
Package height	492 mm
Package weight	9.04 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, VGA
Manual	Yes
Bundled software	SmartControl

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 10 / 8.1 / 8 / 7
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Heavy metals free	Hg (mercury), Pb (lead)
LowBlue mode	Yes
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog ); DisplayPort 1.2; mini DisplayPort 1.2 x 1; HDMI 1.4
Mean time between failures (MTBF)	70000 h
Certification	CE Mark, FCC Class B, SEMKO, cETLus, TUV Ergo, TUV/GS, CU-EAC, EPA, UKRAINIAN, ICES-003
Picture enhancement	SmartImage
Regulatory Approvals	CE Mark; FCC Class B; SEMKO; cETLus; TUV Ergo; TUV/GS; CU-EAC; EPA; UKRAINIAN; ICES-003
User controls	SmartImage; Input; PowerSensor; Menu; Power On/Off

Recycling data

Specification	Value
Packaging recyclability rate	100%
Product post-consumer recycled plastic	85%
