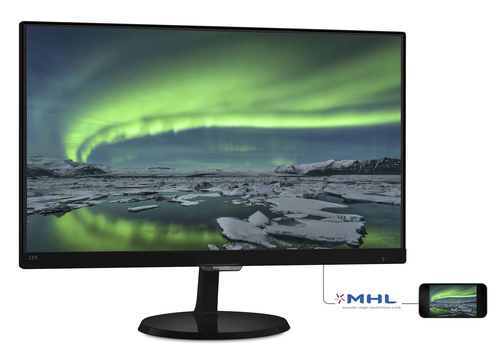

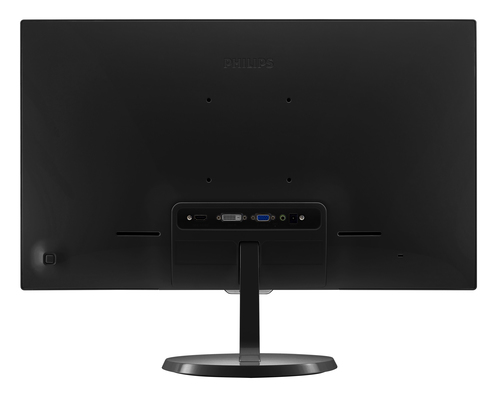

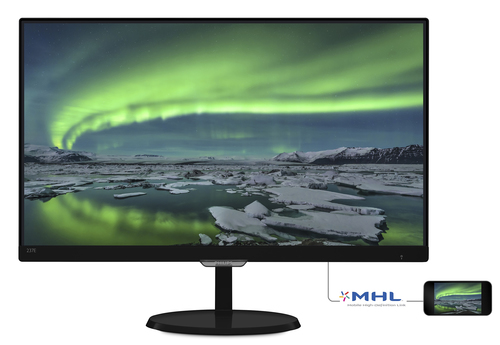

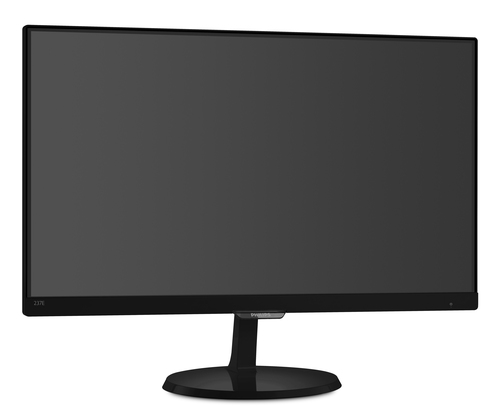

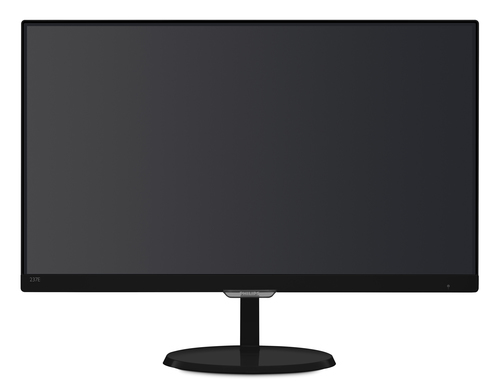

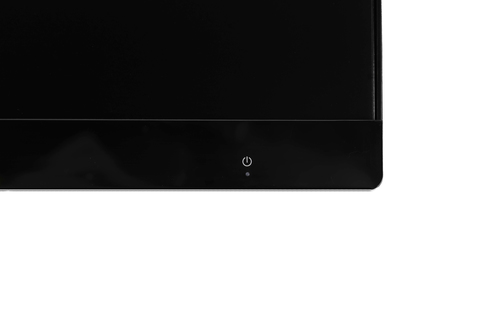

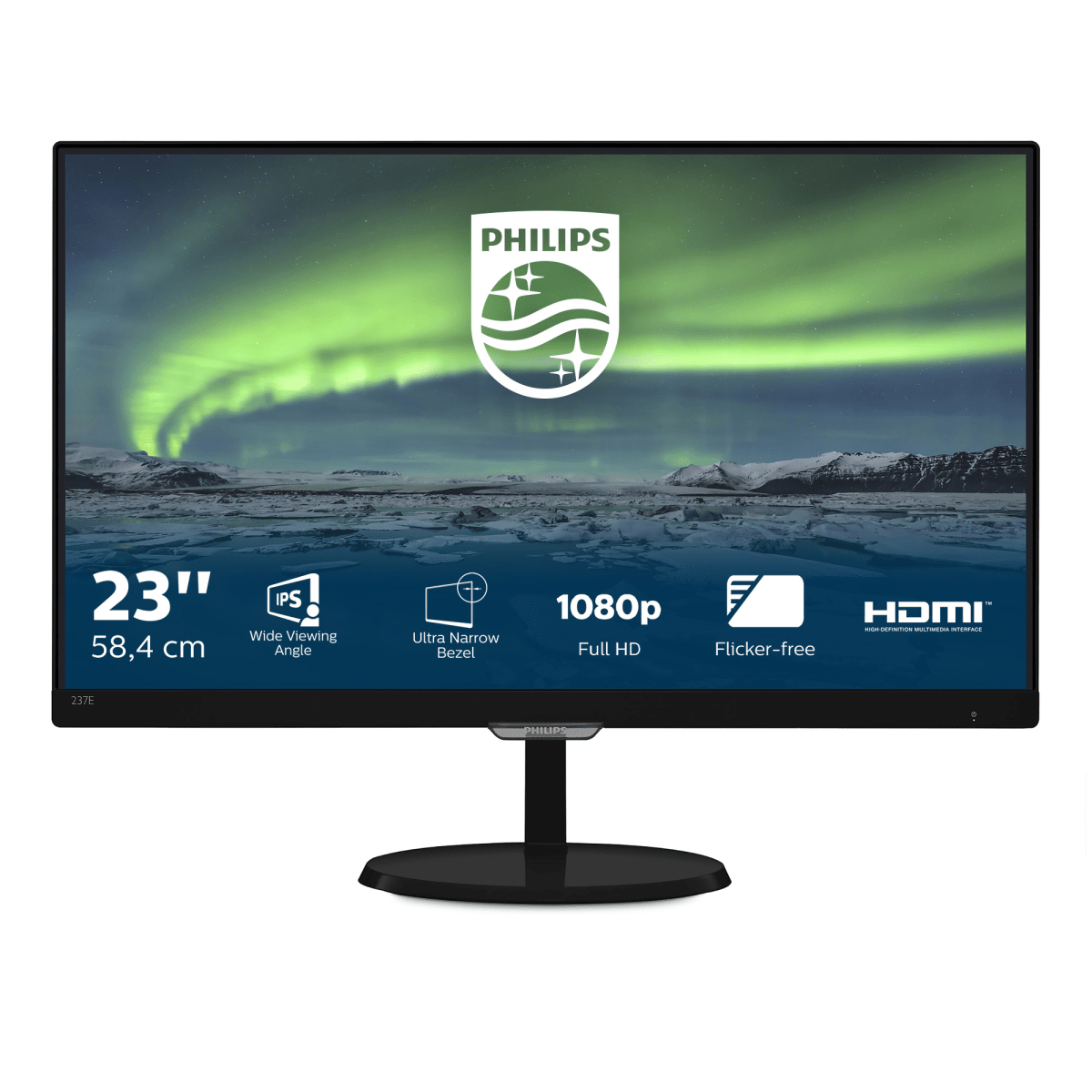

E Line LCD monitor 237E7QDSB/00

Model 237E7QDSB/00EAN 5057103032822

103 specifications Checked today

Display58.4 cm (23")
Resolution1920 x 1080 pixels
Energy classA
ColourBlack
Flicker-free technologyYes
Built-in speaker(s)No

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Energy class: A
Colour: Black
Flicker-free technology: Yes
Built-in speaker(s): No

Brand: Philips
Category: Monitor
Model: 237E7QDSB/00
Part number: 237E7QDSB/00
EAN / UPC: 5057103032822, 8712581736316
Also known as: Philips E Line LCD monitor 237E7QDSB/00

Specifications

103 specifications in 14 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	AH-IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Dynamic contrast ratio marketing name	SmartContrast
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.265 x 0.265 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	50.9 cm
Viewable size, vertical	28.6 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes

Performance

Specification	Value
Component video sync	Separate Sync, Sync-on-green (SOG)
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	0
Audio input	No
Headphone out	No
HDCP	Yes
DC-in jack	Yes
Mobile High-Definition Link (MHL)	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	17.94 W
Power consumption (standby)	0.5 W
Power consumption (max)	23 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	34 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	532 mm
Depth (with stand)	213 mm
Height (with stand)	414 mm
Weight (with stand)	3.21 kg
Width (without stand)	532 mm
Depth (without stand)	49 mm
Height (without stand)	326 mm
Weight (without stand)	2.96 kg

Packaging data

Specification	Value
Package width	567 mm
Package depth	124 mm
Package height	478 mm
Package weight	5.23 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Energy efficiency class (legacy scale)	A
Heavy metals free	Hg (mercury), Pb (lead)
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, FCC Class B, VCCI, C-Tick, CECP, CU, SASO, KUCAS, cETLus, TUV/ISO9241-307, EPA, WEEE, PSB, TCO Certified
Supplied AC adapter type	AC

Recycling data

Specification	Value
Packaging recyclability rate	100%
