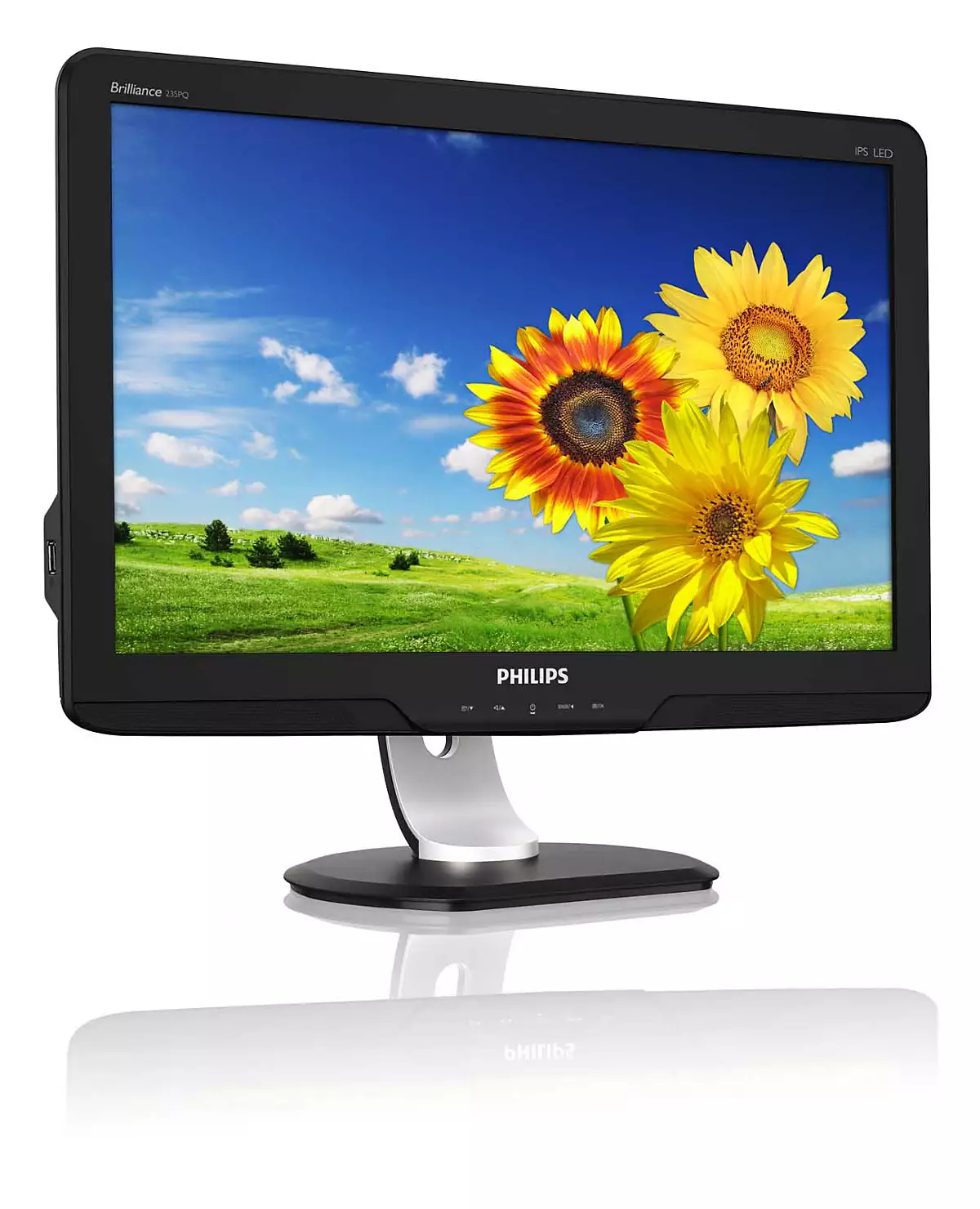

Brilliance IPS LCD monitor, LED backlight 235PQ2EB/00

Model 235PQ2EB/00EAN 8712581625498

111 specifications Checked today

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ColourBlack
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)27.6 W

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Colour: Black
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 27.6 W

Brand: Philips
Category: Monitor
Model: 235PQ2EB/00
Part number: 235PQ2EB/00
EAN / UPC: 8712581625498
Also known as: Philips Brilliance IPS LCD monitor, LED backlight 235PQ2EB/00

Specifications

111 specifications in 15 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	14 ms
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.265 x 0.265 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	58.4 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	23 inch / 58.4 cm

Performance

Specification	Value
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	10 W
Built-in camera	No

Design

Specification	Value
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone outputs	1
PC Audio in	Yes
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm

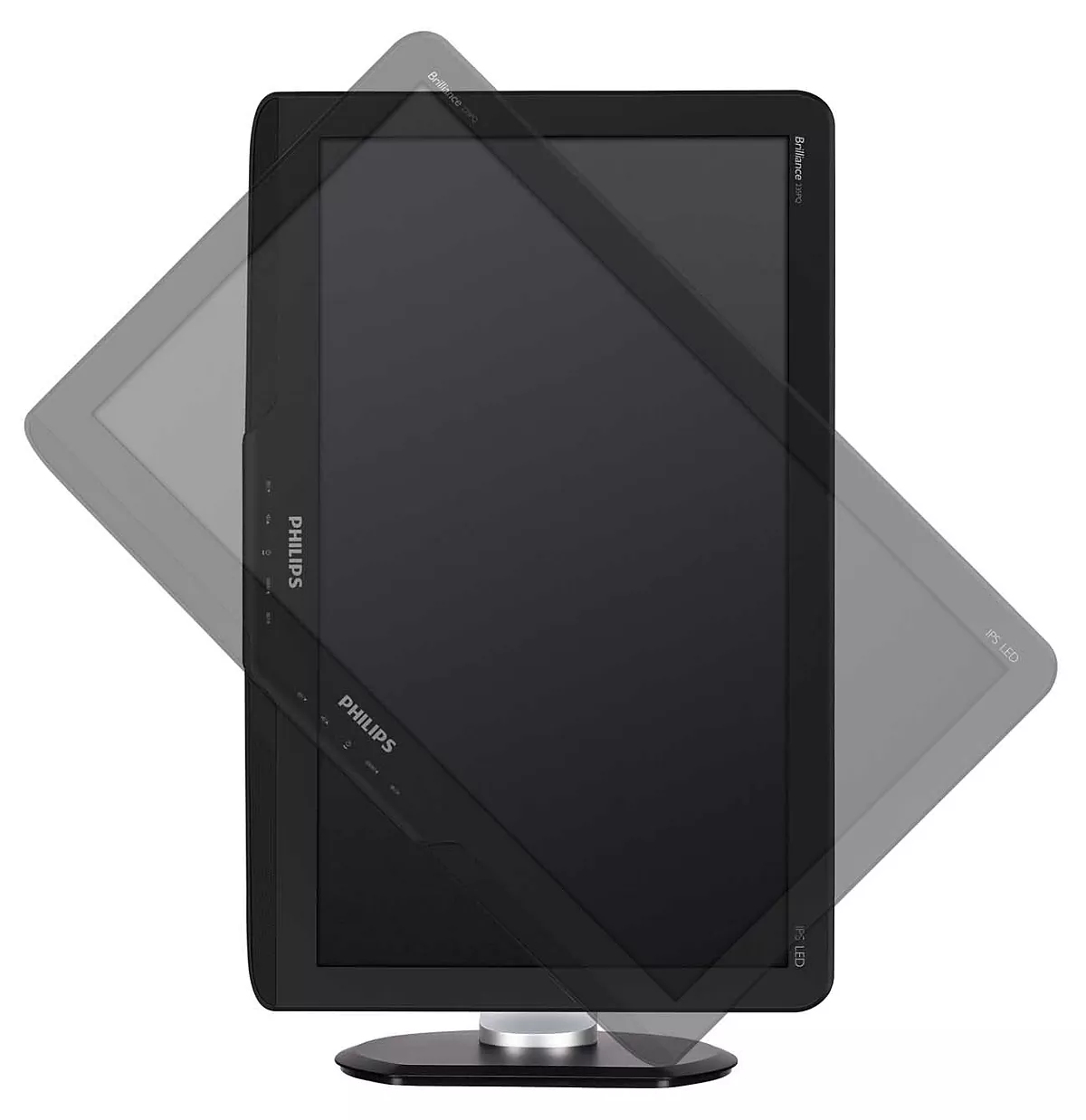

Pivot	Yes
Swivelling	Yes
Swivel angle range	-65 - 65°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Picture-in-Picture	No
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, English, French, German, Italian, Russian, Simplified Chinese, Spanish
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	27.6 W
Power consumption (standby)	0.1 W
Power consumption (off)	0.1 W
Power consumption (PowerSave)	18.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	566 mm
Depth (with stand)	250 mm
Height (with stand)	517 mm
Weight (with stand)	6.4 kg
Width (without stand)	566 mm
Depth (without stand)	57 mm
Height (without stand)	360 mm
Weight (without stand)	4.2 kg

Packaging data

Specification	Value
Package width	672 mm
Package depth	434 mm
Package height	268 mm
Package weight	8.1 kg
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Bundled software	SmartControl Premium

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 7/Vista/XP
On/off switch	Yes
Screen format adjustments	16:9
TV tuner integrated	No
Exterior finish type	Textured
Monitor sync input signal	Separate Sync; Sync on Green
Placement supported	Horizontal
Screen saving functions	Yes
Signal input	DisplayPort x 1; DVI-D (digital, HDCP); VGA (Analog )
Mean time between failures (MTBF)	30000 h
Certification	TCO edge, RoHS, BSMI, CE Mark, FCC B, GOST, SASO, SEMKO, TCO 5.2, TUV/GS, TUV Ergo, UL/cUL, WEEE
Picture enhancement	SmartImage
User controls	SmartImage; PowerSensor; Volume; Menu; Power On/Off
Supplied AC adapter type	LED

Recycling data

Specification	Value
Packaging recyclability rate	100%
Product post-consumer recycled plastic	65%

Thin Client

Specification	Value
Thin client installed	No
