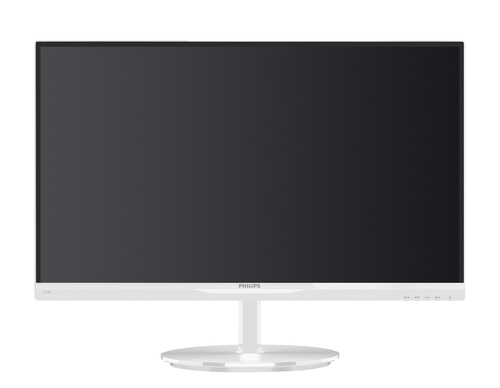

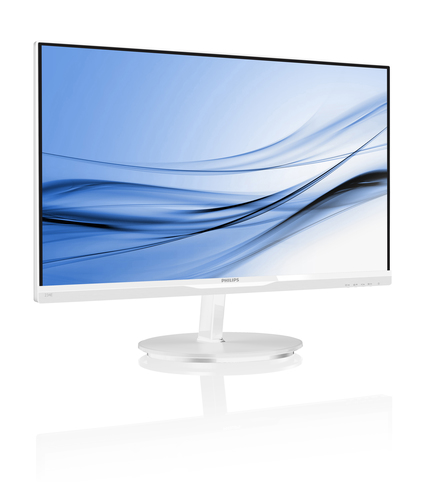

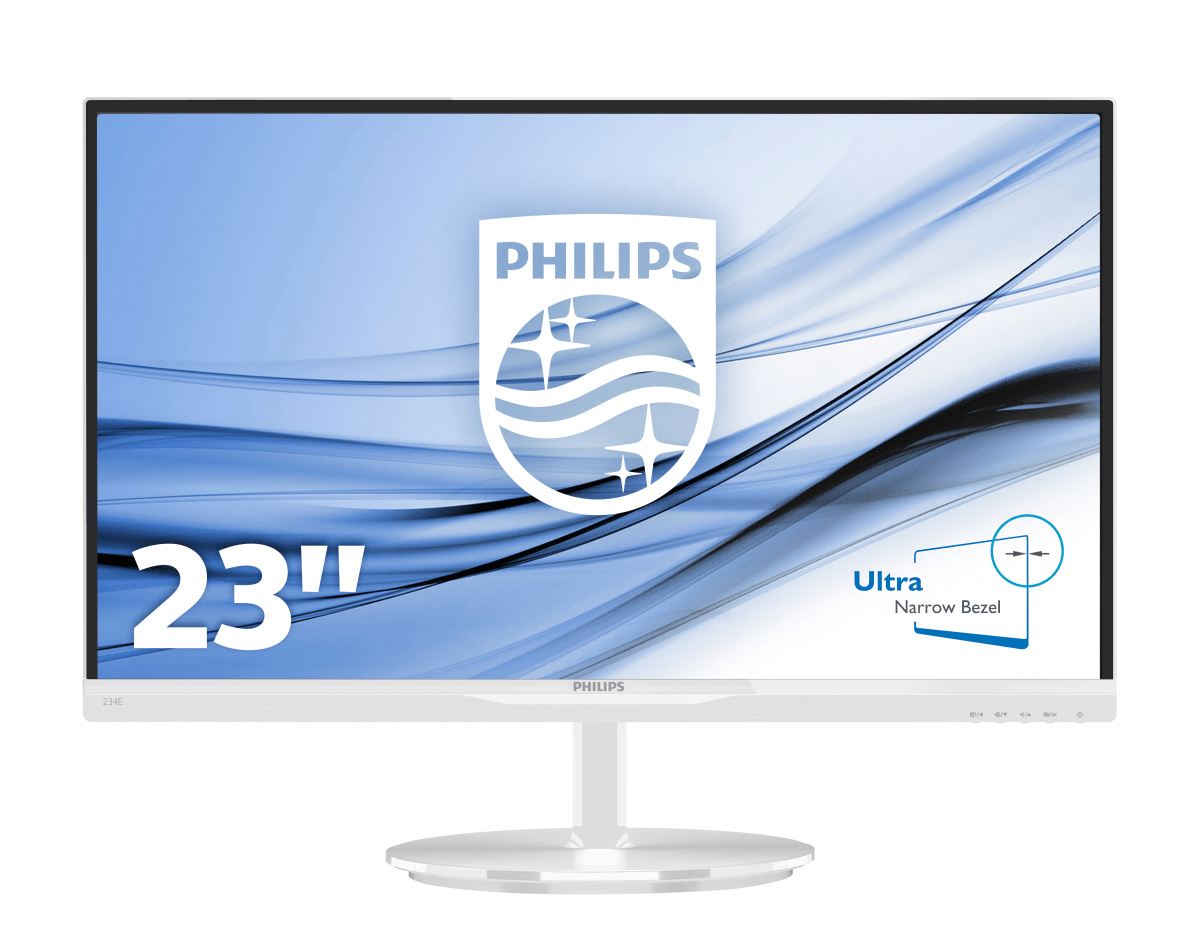

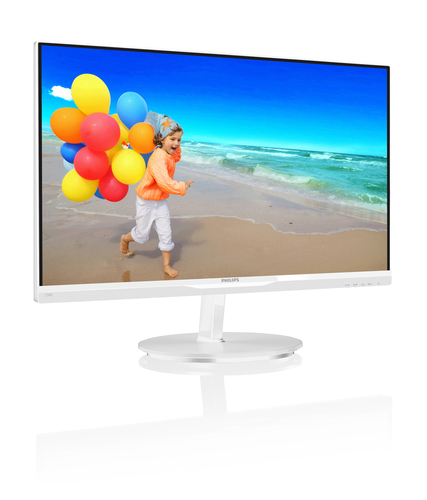

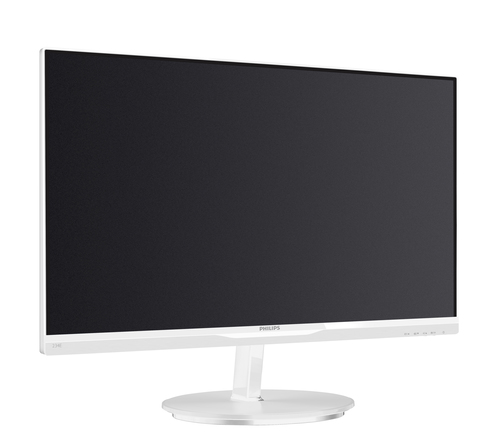

E Line LCD monitor with SmartImage lite 234E5QHAW/01
Model 234E5QHAW/01EAN 8712581717209
91 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- Energy classB
- ColourWhite
- Windows operating systems supportedYes
- Market positioningHome
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Energy class
- B
- Colour
- White
- Windows operating systems supported
- Yes
- Market positioning
- Home
- Brand
- Philips
- Category
- Monitor
- Model
- 234E5QHAW/01
- Part number
- 234E5QHAW/01
- EAN / UPC
- 8712581717209
- Also known as
- Philips E Line LCD monitor with SmartImage lite 234E5QHAW/01
Specifications
91 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | AH-IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| SmartResponse | 5 ms |
| Pixel pitch | 0.265 x 0.265 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 50.9 cm |
| Viewable size, vertical | 28.6 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | White |

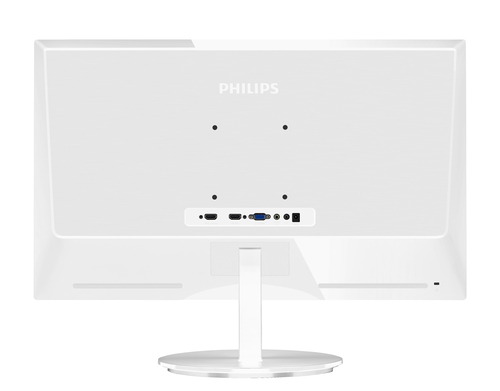

Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 2 |
| Headphone out | Yes |
| PC Audio in | Yes |
| HDCP | Yes |

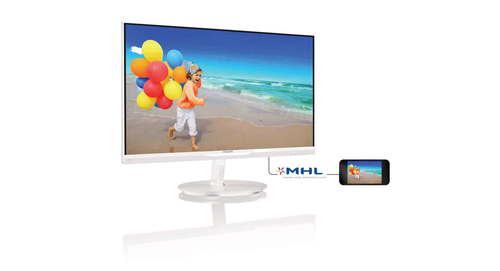

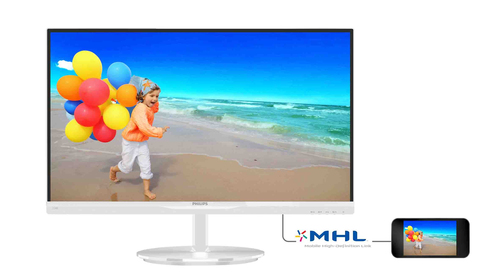

| Mobile High-Definition Link (MHL) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Annual energy consumption | 39 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 532 mm |
| Depth (with stand) | 213 mm |
| Height (with stand) | 414 mm |
| Weight (with stand) | 3.46 kg |
| Width (without stand) | 532 mm |
| Depth (without stand) | 45 mm |
| Height (without stand) | 325 mm |
| Weight (without stand) | 3.11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 105 mm |
| Package height | 475 mm |
| Package weight | 5.16 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Energy efficiency class (legacy scale) | B |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Mean time between failures (MTBF) | 30000 h |
| Compliance industry standards | BSMI, CE Mark, cETLus, FCC Class B, GOST, SASO, SEMKO, TUV/ ISO9241-307, WEEE |
| Certification | BSMI, CE Mark, cETLus, FCC Class B, GOST, SASO, SEMKO, TUV/ISO9241-307, WEEE |
| Supplied AC adapter type | AC |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
