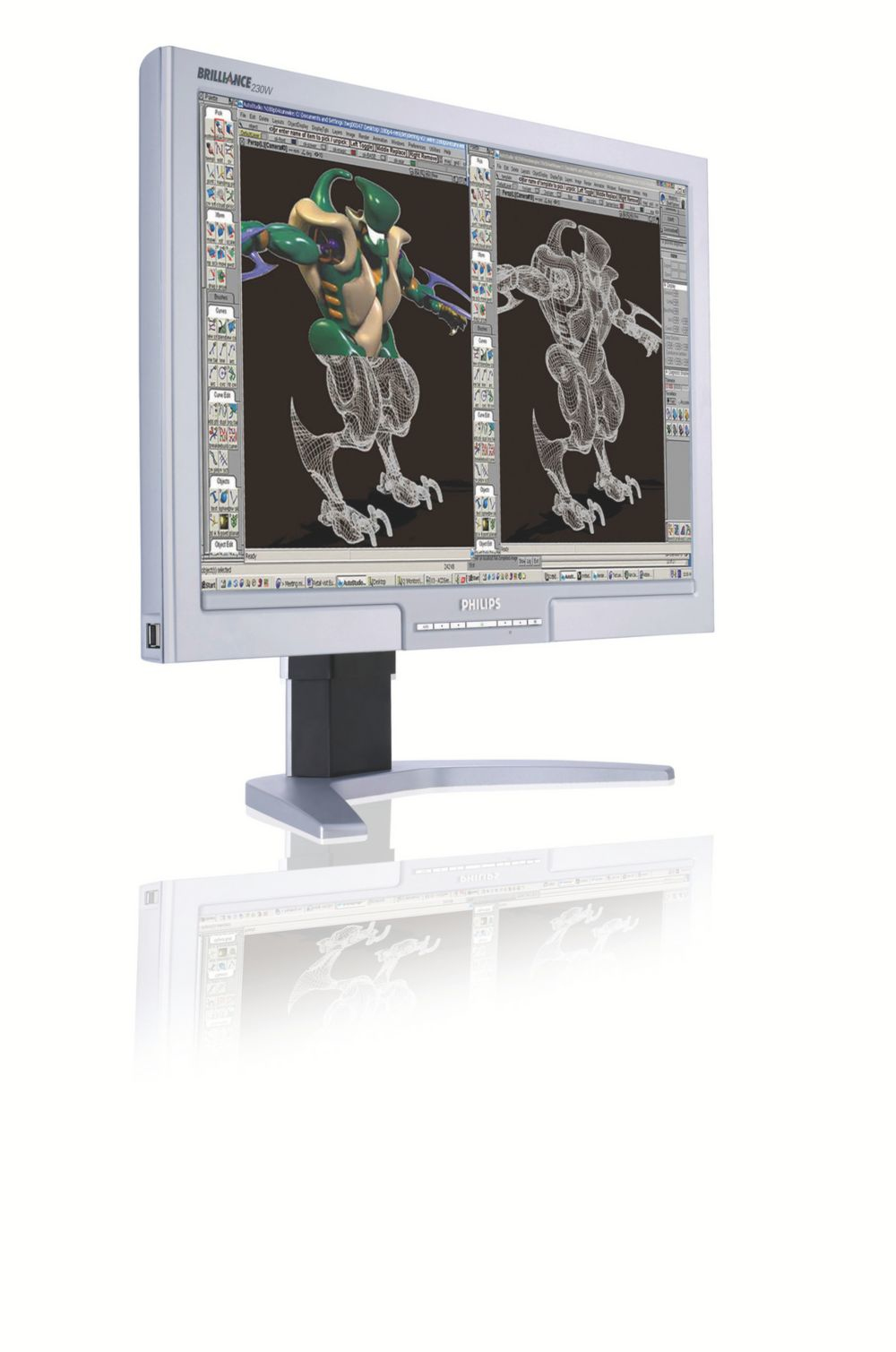

Brilliance LCD widescreen monitor 230WP7NS/00
Model 230WP7NS/00EAN 8710895945127
67 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1200 pixels
- ColourBlue
- USB hub version2.0
- Panel mounting interface100 x 100 mm
- Power consumption (standby)2 W
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1200 pixels
- Colour
- Blue
- USB hub version
- 2.0
- Panel mounting interface
- 100 x 100 mm
- Power consumption (standby)
- 2 W
- Brand
- Philips
- Category
- Monitor
- Model
- 230WP7NS/00
- Part number
- 230WP7NS/00
- EAN / UPC
- 8710895945127
- Also known as
- Philips Brilliance LCD widescreen monitor 230WP7NS/00
Specifications
67 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 12 ms |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.258 x 0.258 mm |
| Horizontal scan range | 30 - 94 kHz |
| Vertical scan range | 56 - 85 Hz |
| Digital horizontal frequency | 30 - 94 kHz |
| Digital vertical frequency | 56 - 85 Hz |
| Colour gamut standard | sRGB |
| Pixel frequency | 205 MHz |
| Display panel size | 23" / 58.4 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Adjustable height (max) | 13 cm |
| Swivel angle range | 45 - 45° |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 2 W |
| Power consumption (off) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 548 mm |
| Depth (with stand) | 234.6 mm |
| Height (with stand) | 422.6 mm |
| Weight (with stand) | 9.6 kg |
| Width (without stand) | 548 mm |
| Depth (without stand) | 87.6 mm |
| Height (without stand) | 380.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 655 x 305 x 547 mm |
| Package width | 655 mm |
| Package depth | 305 mm |
| Package height | 547 mm |
| Package weight | 11.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 495.4 x 309.6 mm |
| Effective viewing area | 495.4 x 309.6 mm |
| Height adjustment range (imperial) | 5.1 |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 100-240VAC, 50/60Hz |
| Signal input | Analog (VGA) DVI-I DVI-D |
| Sync input impedance | 2200 Ω |
| Compliance industry standards | Energy Star |
| Certification | CE Mark Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo |
| Additional accessories | AC Power Cord DVI-D cable USB cable VGA cable |
| Box depth (imperial) | 30.5 cm (12") |
| Box height (imperial) | 54.6 cm (21.5") |
| Convenience enhancements | Kensington lock compatible On-screen Display SmartManage enabled |
| Set depth (inch) | 8.89 cm (3.5") |
| Set depth (with stand) (inch) | 21.6 cm (8.5") |
| Set height (inch) | 38.1 cm (15") |
| Set height (with stand) (inch) | 42.2 cm (16.6") |
| User controls | Auto Brightness Control (Up/Down) Left/Right Menu (OK) Power On/Off |
