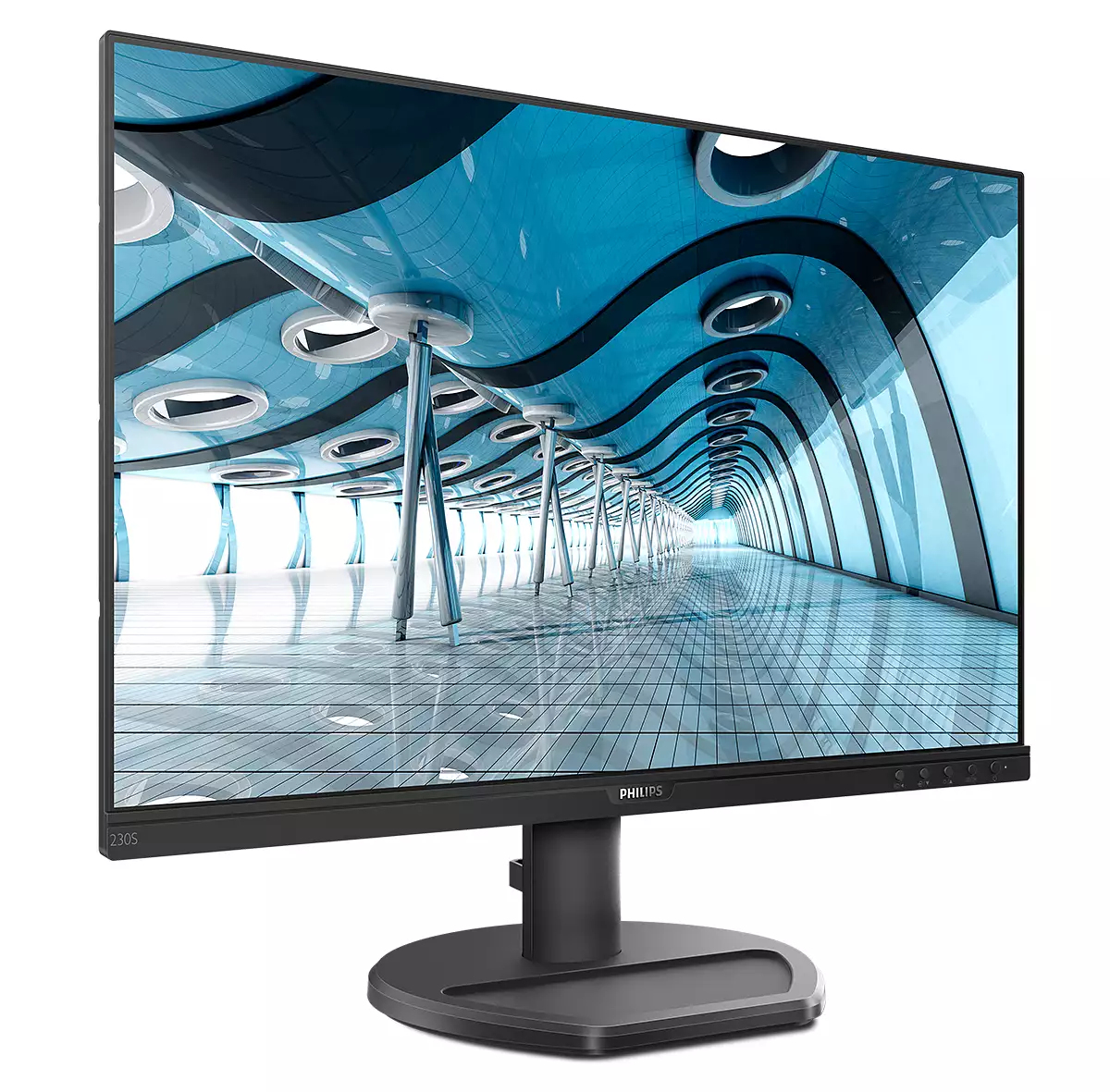

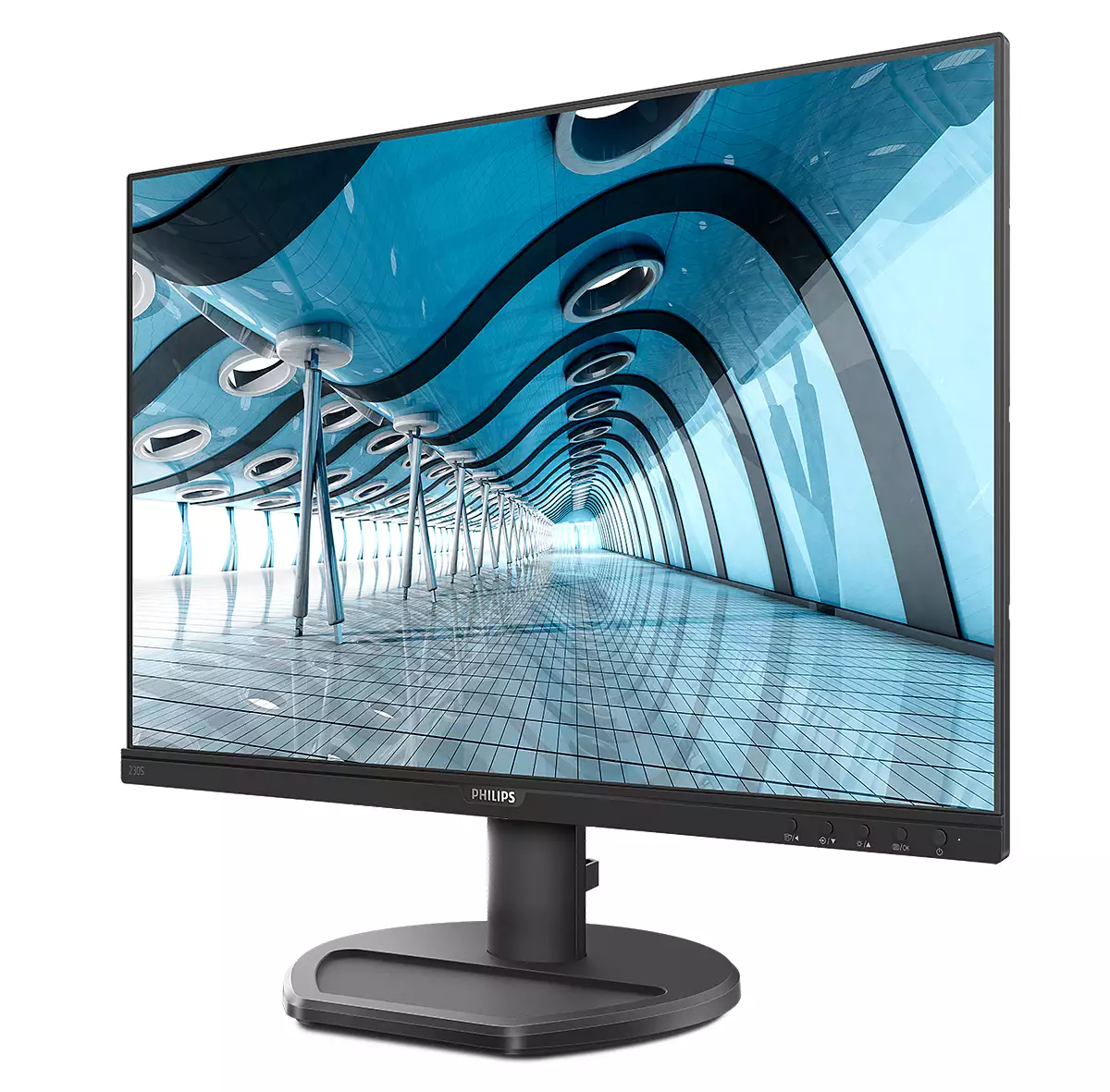

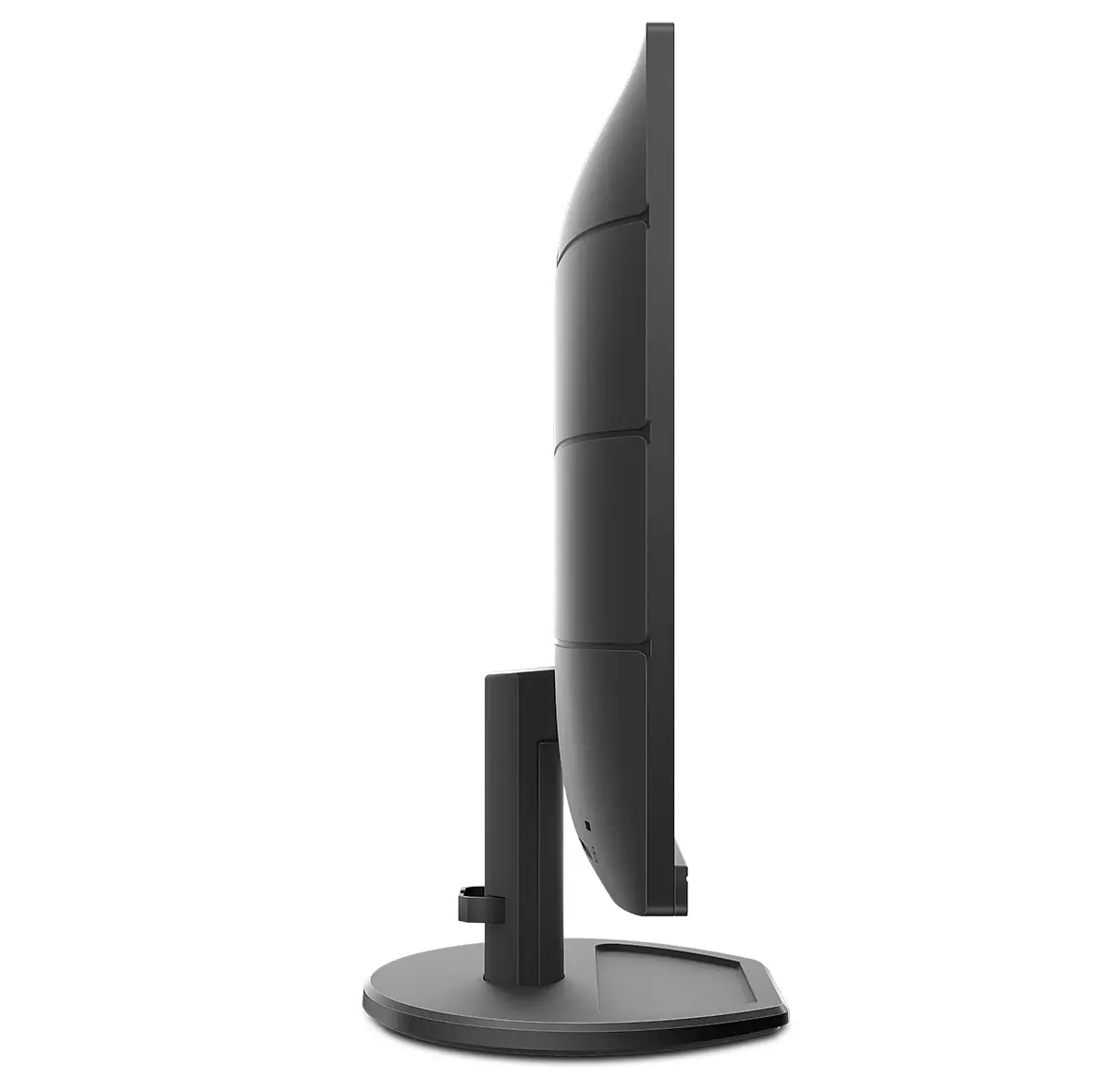

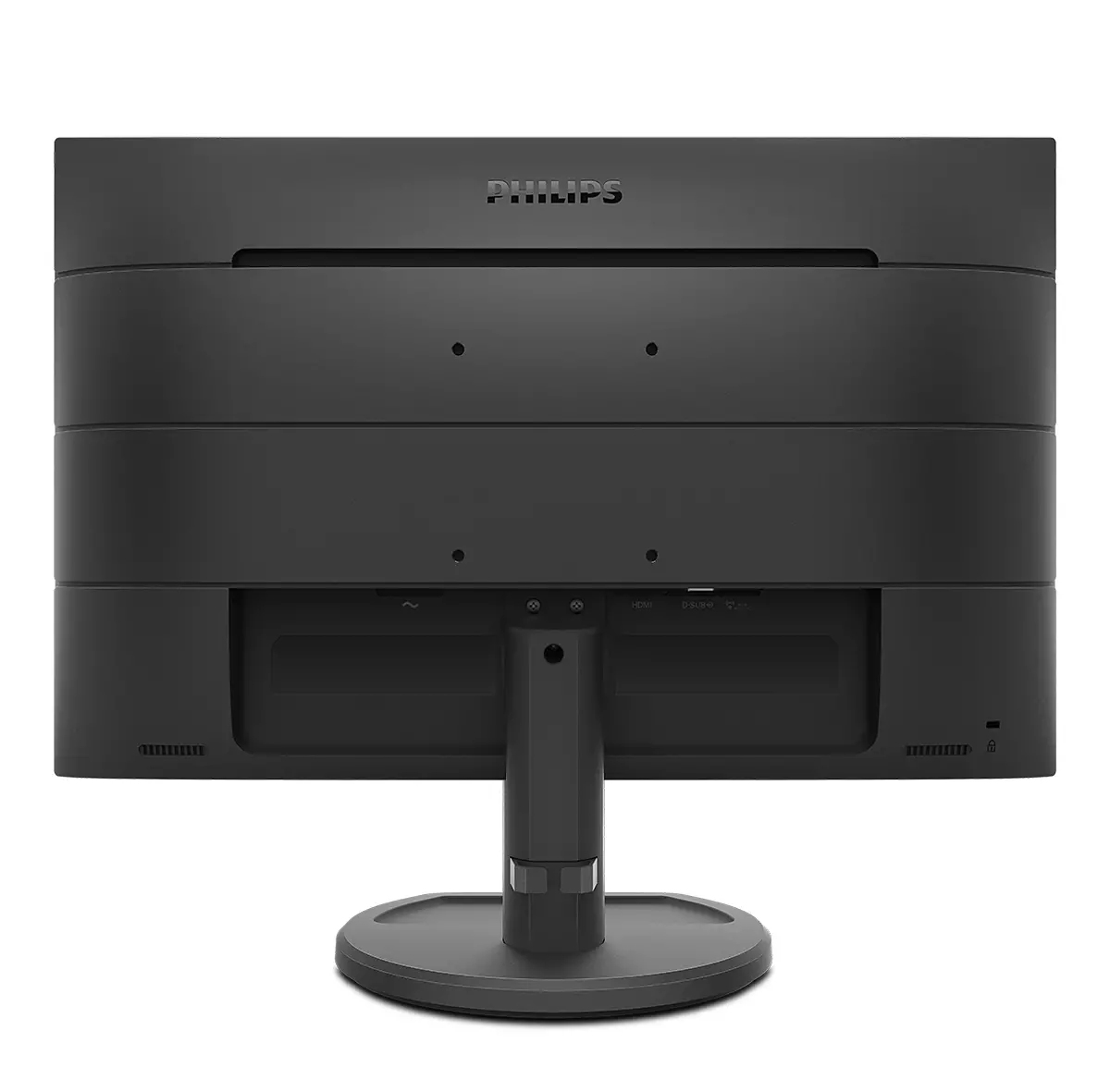

S Line 230S8QHSB/11 computer monitor
57.1 cm (22.5") 1920 x 1200 pixels WUXGA LCD Black
Model 230S8QHSB/11EAN 609585252530
109 specifications Checked today
- Display57.1 cm (22.5")
- Resolution1920 x 1200 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningOffice
- VESA mountingYes
Overview
- Display
- 57.1 cm (22.5")
- Resolution
- 1920 x 1200 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Office
- VESA mounting
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 230S8QHSB/11
- Part number
- 230S8QHSB/11
- EAN / UPC
- 609585252530
- Also known as
- Philips S Line 230S8QHSB/11 computer monitor 57.1 cm (22.5") 1920 x 1200 pixels WUXGA LCD Black
Specifications
109 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.25425 x 0.24765 mm |
| Pixel density | 101 ppi |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 48.8 cm |
| Viewable size, vertical | 29.7 cm |
| Sync-on-green (SOG) | Yes |
| Display diagonal (metric) | 57.2 cm |
| DDC/CI | Yes |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour gamut standard | sRGB, NTSC |
| Colour gamut | 85% |
| sRGB coverage (typical) | 101.8% |
| NTSC coverage (typical) | 85% |
| Display sRGB | Yes |
| Display panel size | 22.5 inch / 57.2 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black, Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| Audio output | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.99 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 9.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 499 mm |
| Depth (with stand) | 208 mm |
| Height (with stand) | 414 mm |
| Weight (with stand) | 3 kg |
| Width (without stand) | 499 mm |
| Depth (without stand) | 42 mm |
| Height (without stand) | 323 mm |
| Weight (without stand) | 2.58 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 559 mm |
| Package depth | 136 mm |
| Package height | 481 mm |
| Package weight | 4.53 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | SmartControl |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS X; Windows 10 / 8.1 / 8 / 7 |
| Exterior finish type | Textured |
| Compliance certificates | CE, RoHS, WEEE |
| EasyRead mode | Yes |
| Heavy metals free | Hg (mercury) |
| LowBlue mode | Yes |
| Monitor sync input signal | Separate Sync; Sync on Green |
| No flickering | Yes |
| Signal input | VGA (Analog ); HDMI 1.4 |
| Mean time between failures (MTBF) | 70000 h |
| Picture enhancement | SmartImage |
| Regulatory Approvals | CE Mark; J-MOSS; PSE; VCCI |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
Recycling data
| Specification | Value |
|---|---|
| Overall recycled content | 25% |
| Packaging recyclability rate | 100% |
