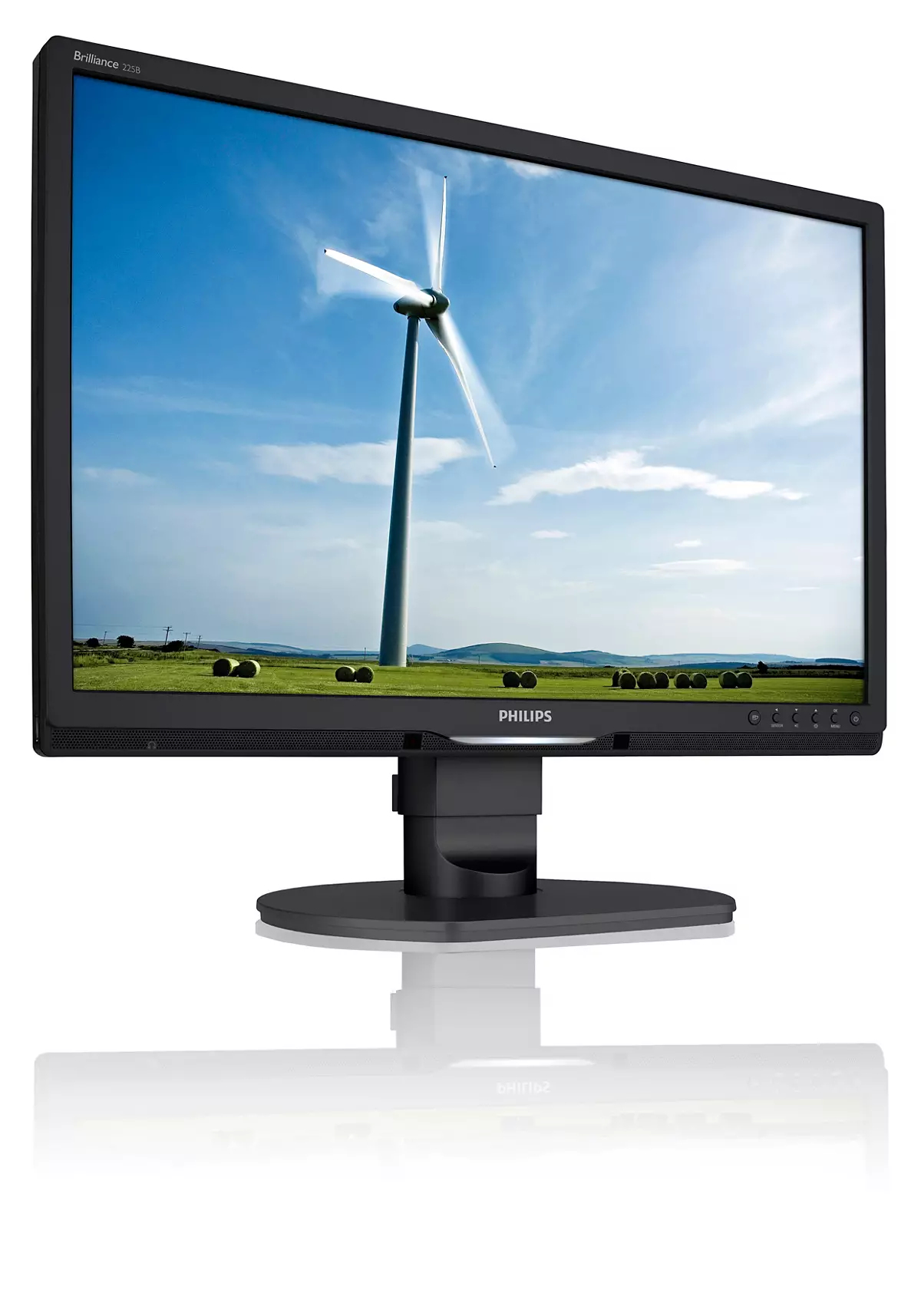

Brilliance LCD monitor 225B1CB/00

Model 225B1CB/00EAN 8712581481704

104 specifications Checked today

Overview

104 specifications in 13 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (dynamic)	25000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.7 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	55.9 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	22 inch / 55.9 cm

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Audio input	Yes
Audio output	Yes
HDCP	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	7 cm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, English, French, German, Italian, Russian, Simplified Chinese, Spanish
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Power consumption (typical)	22.37 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
Power consumption (PowerSave)	17.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Specification	Value
Compatible operating systems	Mac OS X; Windows 7/Vista/XP/2000/98
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Colour	No
Monitor sync input signal	Separate Sync; Sync on Green
Package weight	6.8 kg
Power consumption (economy mode)	17.5 W
Signal input	VGA (Analog ); DVI-D (digital, HDCP)
Mean time between failures (MTBF)	50000 h
Certification	RoHS
Package dimensions (W x D x H)	5562.6 x 4749.8 x 1676.4 mm (219 x 187 x 66")
Picture enhancement	SmartImage
Regulatory Approvals	BSMI, CE Mark, FCC, Class B, GOST, SEMKO, TCO '03, TUV/GS, TUV Ergo, UL/cUL
User controls	Sensor; SmartImage; Brightness; Menu; Audio; Power On/Off
Weight (with stand) (imperial)	5.17 kg (11.4 lbs)
