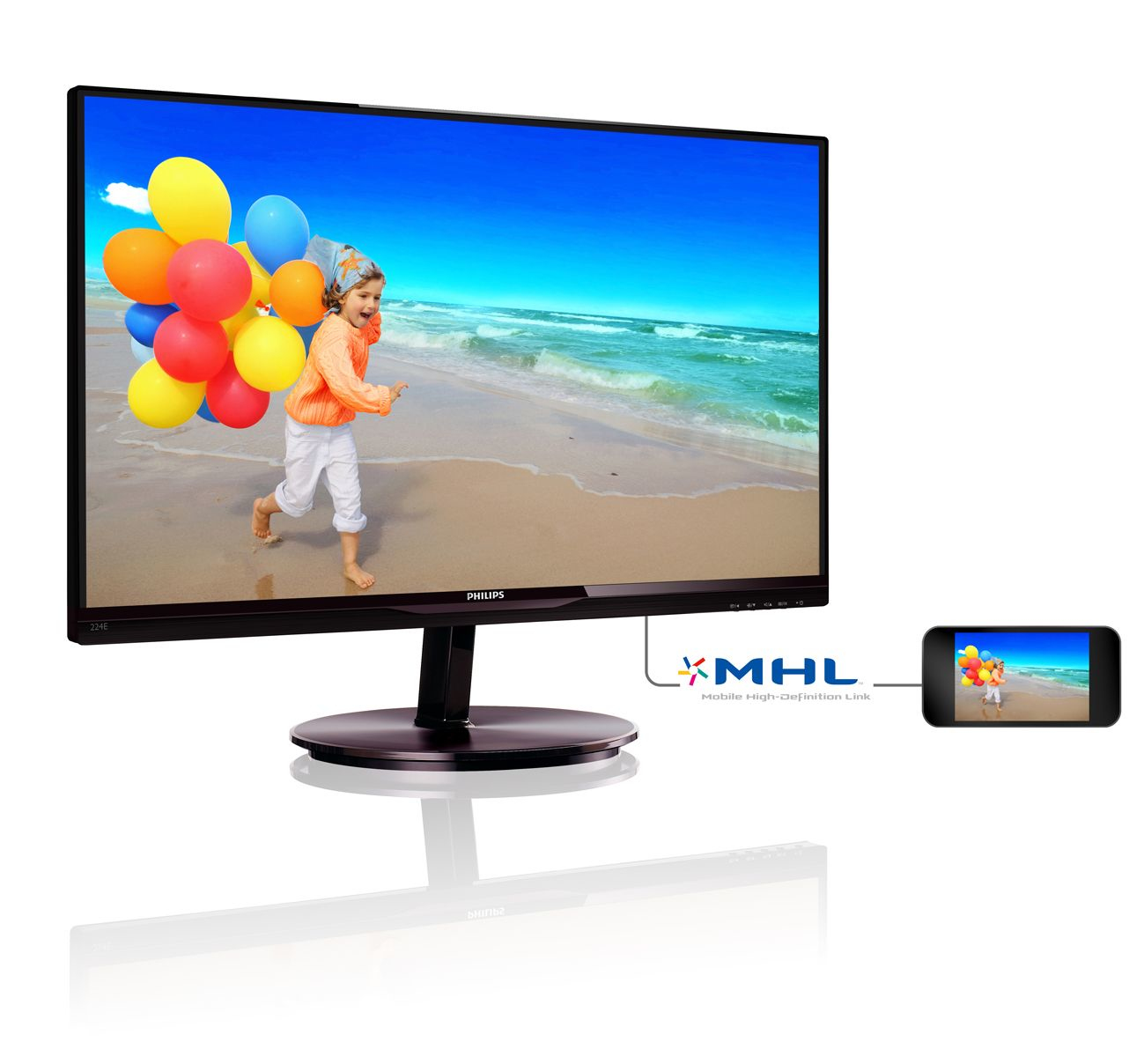

Philips 224E5QDAB/01 computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
Model 224E5QDAB/01EAN 8712581704995
82 specifications Checked 22 days ago
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Power consumption (typical)17.46 W
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Power consumption (typical)
- 17.46 W
- Brand
- Philips
- Category
- Monitor
- Model
- 224E5QDAB/01
- Part number
- 224E5QDAB/01
- EAN / UPC
- 8712581704995
- Also known as
- Philips 224E5QDAB/01 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
Specifications
82 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Gloss |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| PC Audio in | Yes |
| HDCP | Yes |
| Mobile High-Definition Link (MHL) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Pivot | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 22 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 17.46 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 500 mm |
| Depth (with stand) | 213 mm |
| Height (with stand) | 394 mm |
| Weight (with stand) | 3.14 kg |
| Width (without stand) | 500 mm |
| Depth (without stand) | 47 mm |
| Height (without stand) | 306 mm |
| Weight (without stand) | 2.82 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 562 mm |
| Package depth | 106 mm |
| Package height | 466 mm |
| Package weight | 5.01 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 30000 h |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
