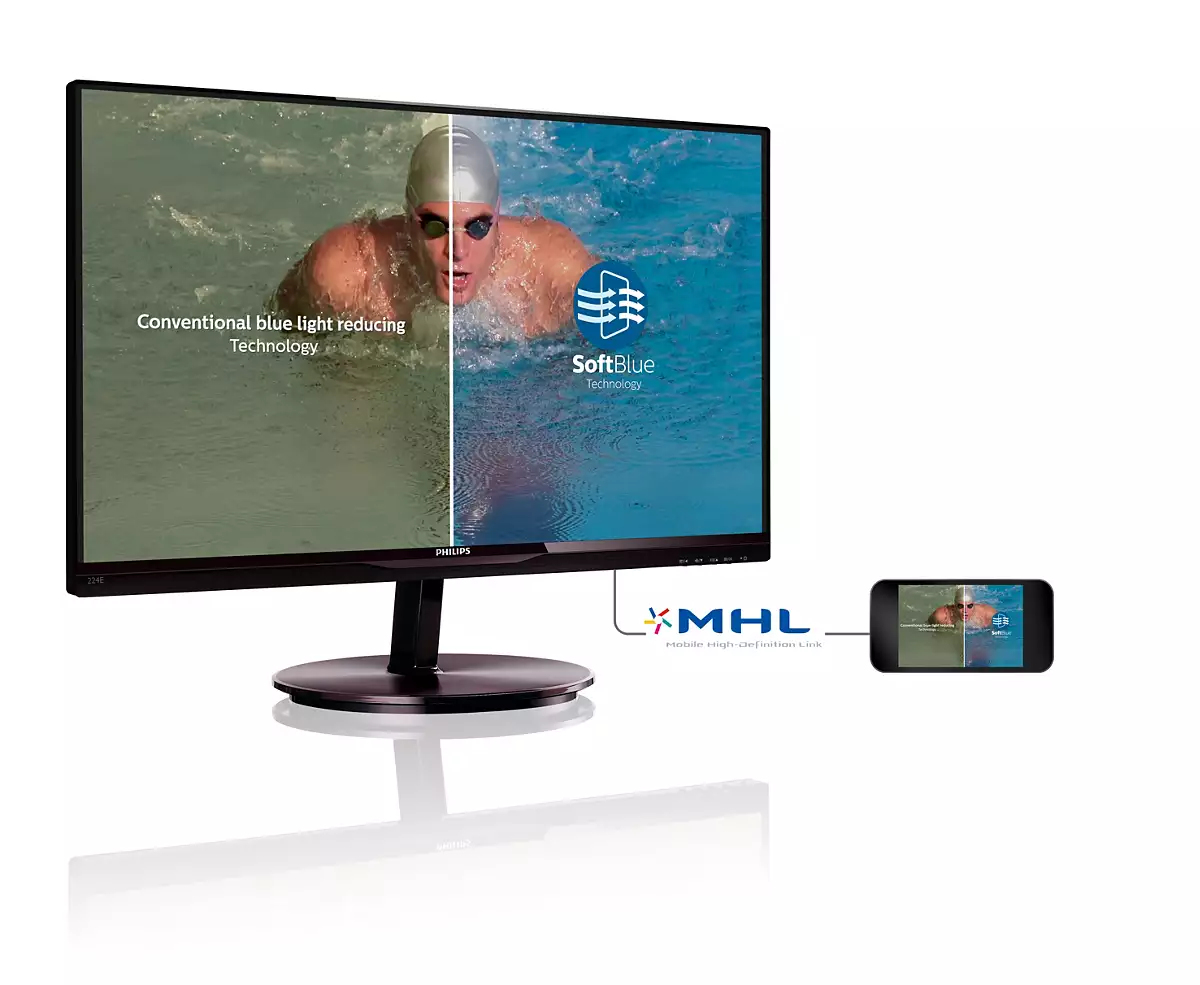

E Line 224E5EDSB/11 computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Model 224E5EDSB/11EAN 609585248656

95 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
NVIDIA G-SYNCNo
Market positioningHome
VESA mountingYes

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Home
VESA mounting: Yes

Brand: Philips
Category: Monitor
Model: 224E5EDSB/11
Part number: 224E5EDSB/11
EAN / UPC: 609585248656
Also known as: Philips E Line 224E5EDSB/11 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Specifications

95 specifications in 13 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	AH-IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	14 ms
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Dynamic contrast ratio marketing name	SmartContrast
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
SmartResponse	5 ms
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
Sync-on-green (SOG)	Yes
Display diagonal (metric)	54.6 cm
DDC/CI	Yes
Colour gamut standard	sRGB
Display sRGB	Yes
Display panel size	21.5 inch / 54.6 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Component video sync	Separate Sync, Sync-on-green (SOG)
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDCP	Yes
Mobile High-Definition Link (MHL)	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages	21
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	15.25 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	500 mm
Depth (with stand)	213 mm
Height (with stand)	394 mm
Weight (with stand)	3.14 kg
Width (without stand)	500 mm
Depth (without stand)	47 mm
Height (without stand)	306 mm
Weight (without stand)	2.82 kg

Packaging data

Specification	Value
Package width	562 mm
Package depth	106 mm
Package height	466 mm
Package weight	5.01 kg

Sustainability

Specification	Value
Doesn't contain	Mercury

Other features

Specification	Value
Compatible operating systems	Mac OS X; Windows 7; Windows 8
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, WEEE
Heavy metals free	Hg (mercury)
Monitor sync input signal	Separate Sync; Sync on Green
No flickering	Yes
Signal input	MHL-HDMI (digital, HDCP); VGA (Analog ); DVI-D (digital, HDCP)
SoftBlue	Yes
Mean time between failures (MTBF)	50000 h
Picture enhancement	SmartImage Lite
Regulatory Approvals	CE Mark; FCC Class B; CU; EAC; SASO; KUCAS; cETLus; SEMKO; TUV/ISO9241-307; EPA; WEEE; PSB; CECP; VCCI; KCC; KC; TUV Cert. - blue light cut-off
User controls	Power On/Off; Menu; Volume; Input; SmartImage lite

Recycling data

Specification	Value
Packaging recyclability rate	100%
