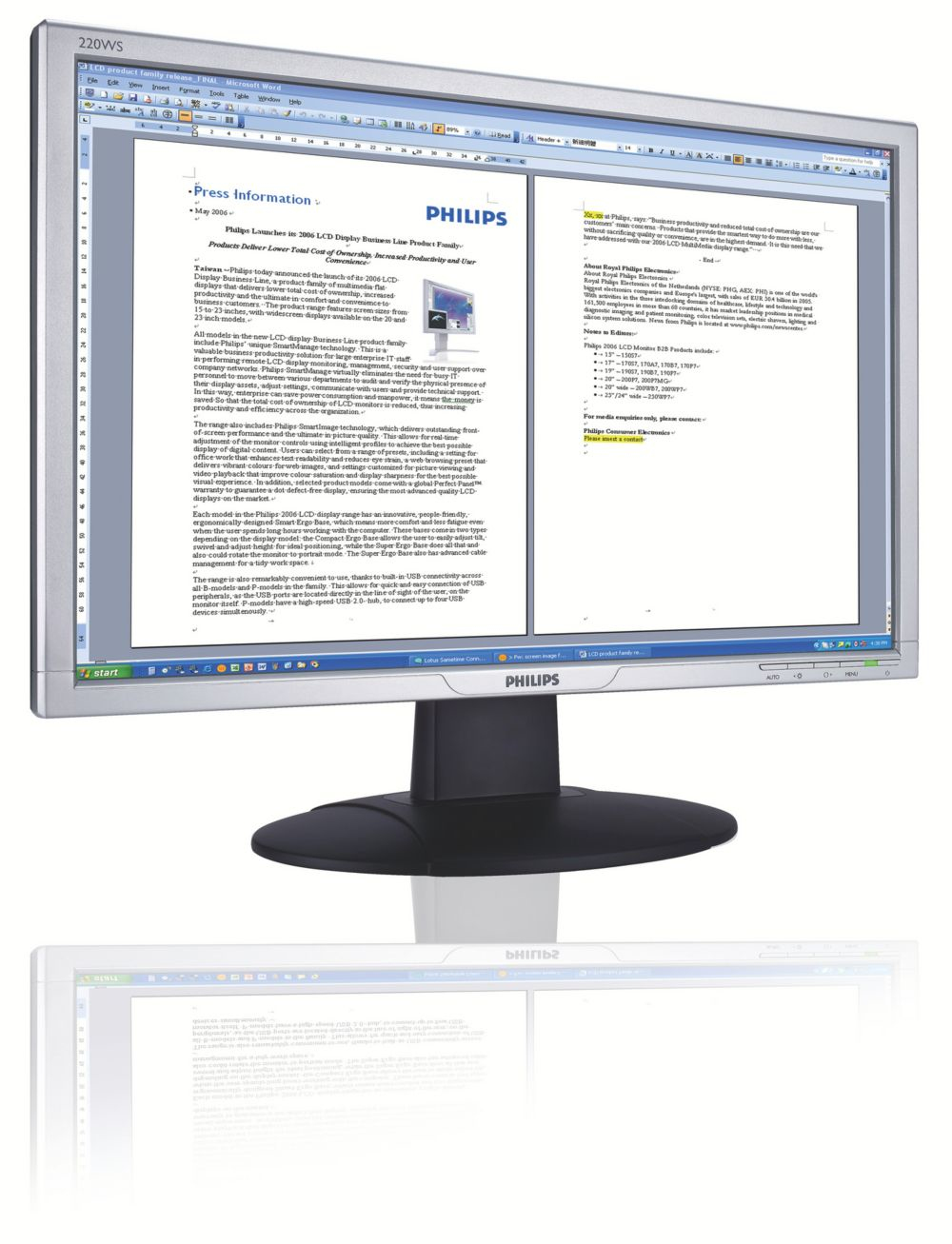

Philips LCD widescreen monitor 220WS8FS/00

Philips LCD widescreen monitor 220WS8FS/00

Model 220WS8FS/00EAN 8712581301347

71 specifications Checked 3 days ago
  • Display55.9 cm (22")
  • Resolution1680 x 1050 pixels
  • VGA (D-Sub) ports quantity1
  • Panel mounting interface100 x 100 mm
  • Power consumption (standby)1 W
  • Operating temperature (T-T)5 - 35 °C
See all specifications

Overview

Display
55.9 cm (22")
Resolution
1680 x 1050 pixels
VGA (D-Sub) ports quantity
1
Panel mounting interface
100 x 100 mm
Power consumption (standby)
1 W
Operating temperature (T-T)
5 - 35 °C
Brand
Philips
Category
Monitor
Model
220WS8FS/00
Part number
220WS8FS/00
EAN / UPC
8712581301347
Also known as
Philips LCD widescreen monitor 220WS8FS/00

Specifications

71 specifications in 10 groups

Display

Display diagonal55.9 cm (22")
Display resolution1680 x 1050 pixels
Native aspect ratio16:10
TouchscreenNo
Display brightness (typical)300 cd/m²
Response time5 ms
Aspect ratio16:10
Contrast ratio (typical)1000:1
Viewing angle, horizontal160°
Viewing angle, vertical160°
Pixel pitch0.282 x 0.282 mm
Horizontal scan range30 - 93 kHz
Vertical scan range56 - 75 Hz
Viewable size diagonal55.9 cm
Digital horizontal frequency30 - 93 kHz
Digital vertical frequency56 - 76 Hz
Sync-on-green (SOG)Yes
Colour gamut standardsRGB
Pixel frequency205 MHz
Separate H/V syncYes
Composite syncYes
Display panel size22" / 55.9 cm
Video input impedance75 Ω
Video input signal levels0.7 Vpp
White Chromaticity, 6500Kx = 0.313 / y = 0.329
White Chromaticity, 9300Kx = 0.283 / y = 0.297

Ports & interfaces

VGA (D-Sub) ports quantity1
DVI-D ports quantity1

Ergonomics

Panel mounting interface100 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Tilt angle range-5 - 25°
LED indicatorsStand-by

Power

Power consumption (standby)1 W
Power consumption (off)1 W

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)513.8 mm
Depth (with stand)213.6 mm
Height (with stand)416.2 mm
Weight (with stand)5.6 kg
Width (without stand)513.8 mm
Depth (without stand)67.3 mm
Height (without stand)336.1 mm

Packaging data

Package dimensions (WxDxH)565 x 174 x 472 mm
Package width565 mm
Package depth472 mm
Package height174 mm
Package weight7.4 kg

Packaging content

ManualYes

Sustainability

Sustainability certificatesENERGY STAR

Other features

Display viewable area (HxV)473 x 291 mm
Effective viewing area473 x 291 mm
Monitor sync input signalComposite Sync Separate Sync Sync on Green
Power requirementsBuilt-in 100-240VAC, 50/60Hz
Signal inputAnalog (VGA) DVI-D
Sync input impedance2200 Ω
Compliance industry standardsEnergy Star
CertificationCE Mark Energy Star FCC Class B SEMKO TCO '03 TÜV/GS, TÜV Ergo UL/cUL
Additional accessoriesAC Power Cord VGA cable
Box depth (imperial)47.2 cm (18.6")
Box height (imperial)17.5 cm (6.9")
Convenience enhancementsKensington lock compatible On-screen Display
Set depth (inch)6.86 cm (2.7")
Set depth (with stand) (inch)21.3 cm (8.4")
Set height (inch)33.5 cm (13.2")
Set height (with stand) (inch)41.7 cm (16.4")
User controlsAuto Brightness (Left) Contrast (Right) Menu Power On/Off
Supplied AC adapter typeLCD, 1680 x 1050, 1680 x 1050 @ 60Hz
