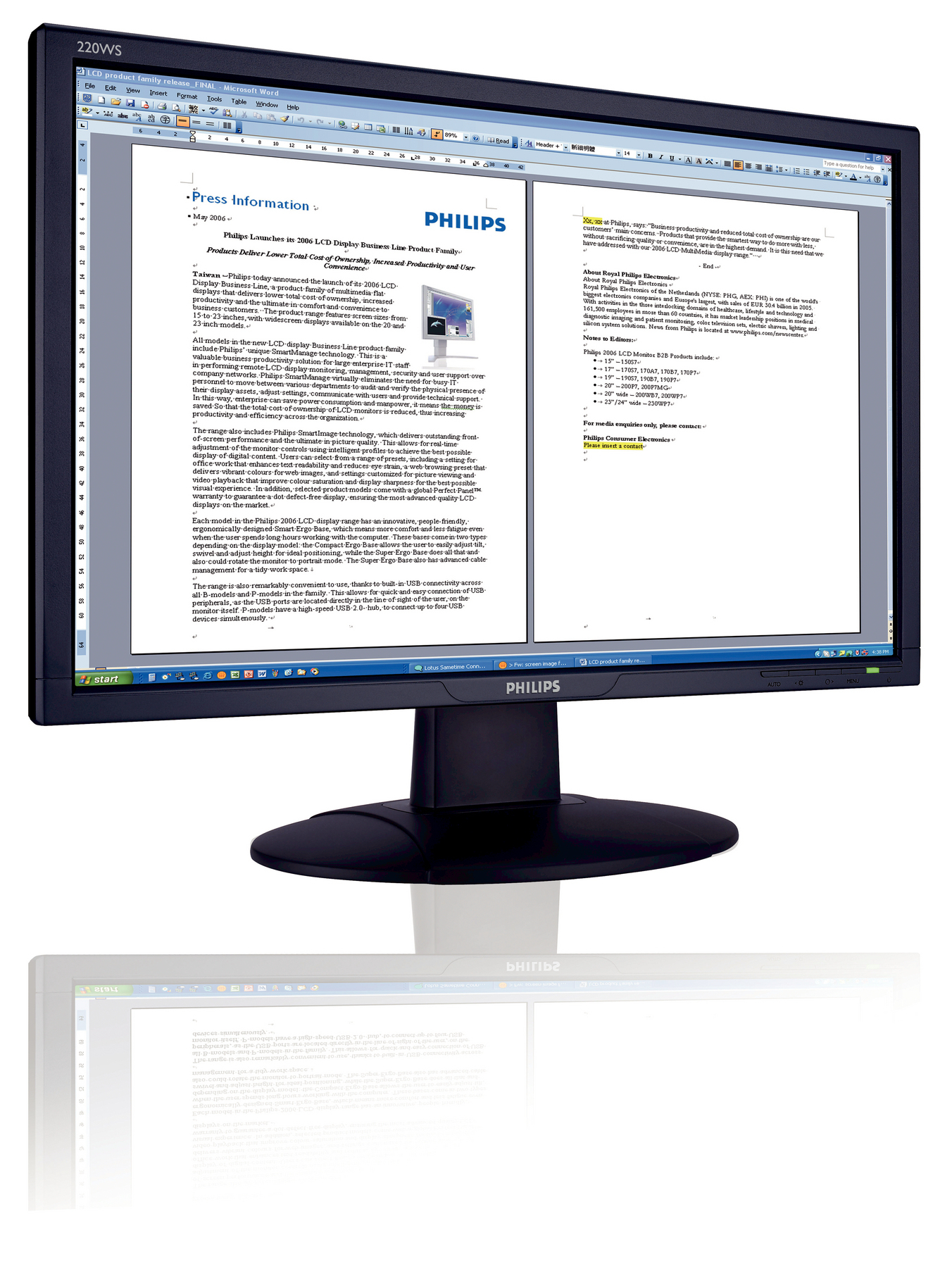

LCD widescreen monitor 220WS8FB/00
Model 220WS8FB/00EAN 8712581342371
70 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (off)1 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (off)
- 1 W
- Brand
- Philips
- Category
- Monitor
- Model
- 220WS8FB/00
- Part number
- 220WS8FB/00
- EAN / UPC
- 8712581342371
- Also known as
- Philips LCD widescreen monitor 220WS8FB/00
Specifications
70 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 93 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 47.3 cm |
| Viewable size, vertical | 29.1 cm |
| Viewable size diagonal | 55.9 cm |
| Digital horizontal frequency | 30 - 93 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| Pixel frequency | 205 MHz |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| Display panel size | 22" / 55.9 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 513.8 mm |
| Depth (with stand) | 213.6 mm |
| Height (with stand) | 416.2 mm |
| Weight (with stand) | 5.6 kg |
| Width (without stand) | 513.8 mm |
| Depth (without stand) | 67.3 mm |
| Height (without stand) | 336.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 472 mm |
| Package height | 174 mm |
| Package weight | 7.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 473 x 291 mm |
| Effective viewing area | 473 x 291 mm |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 100-240VAC, 50/60Hz |
| Signal input | Analog (VGA) DVI-D |
| Sync input impedance | 2200 Ω |
| Compliance industry standards | Energy Star |
| Certification | CE Mark Energy Star FCC Class B SEMKO TCO '03 TÜV/GS, TÜV Ergo UL/cUL |
| Additional accessories | AC Power Cord VGA cable |
| Box depth (imperial) | 47.2 cm (18.6") |
| Box height (imperial) | 17.5 cm (6.9") |
| Convenience enhancements | Kensington lock compatible On-screen Display |
| Set depth (inch) | 6.86 cm (2.7") |
| Set depth (with stand) (inch) | 21.3 cm (8.4") |
| Set height (inch) | 33.5 cm (13.2") |
| Set height (with stand) (inch) | 41.7 cm (16.4") |
| User controls | Auto Brightness (Left) Contrast (Right) Menu Power On/Off |
| Supplied AC adapter type | LCD |
