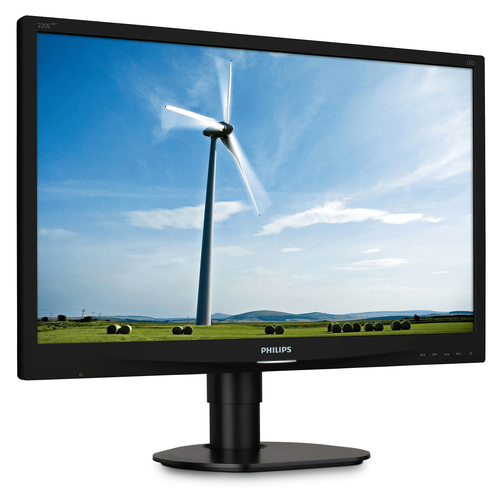

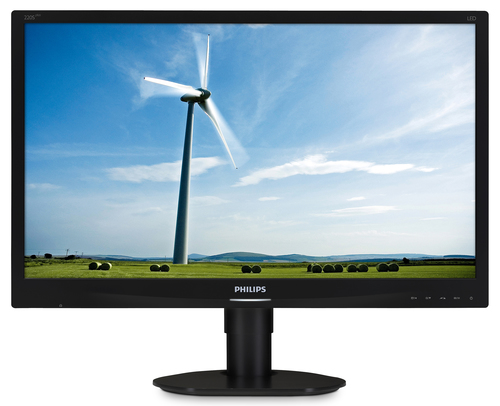

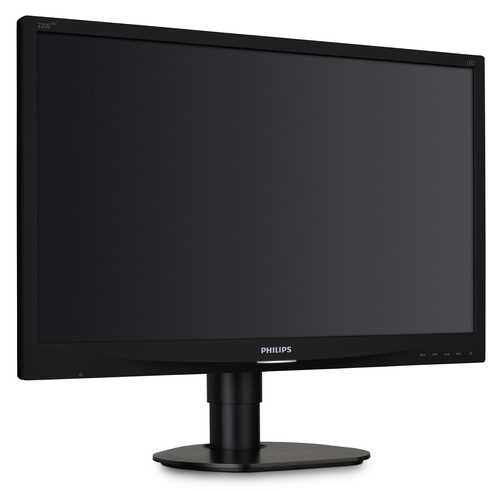

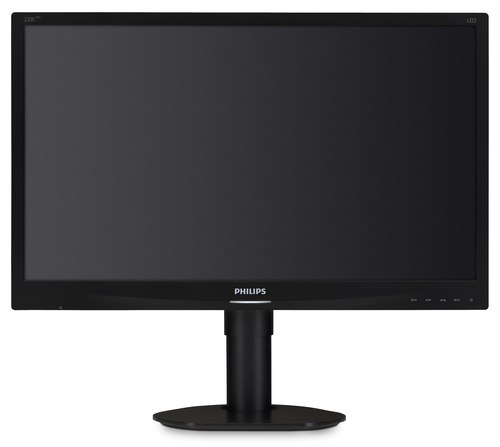

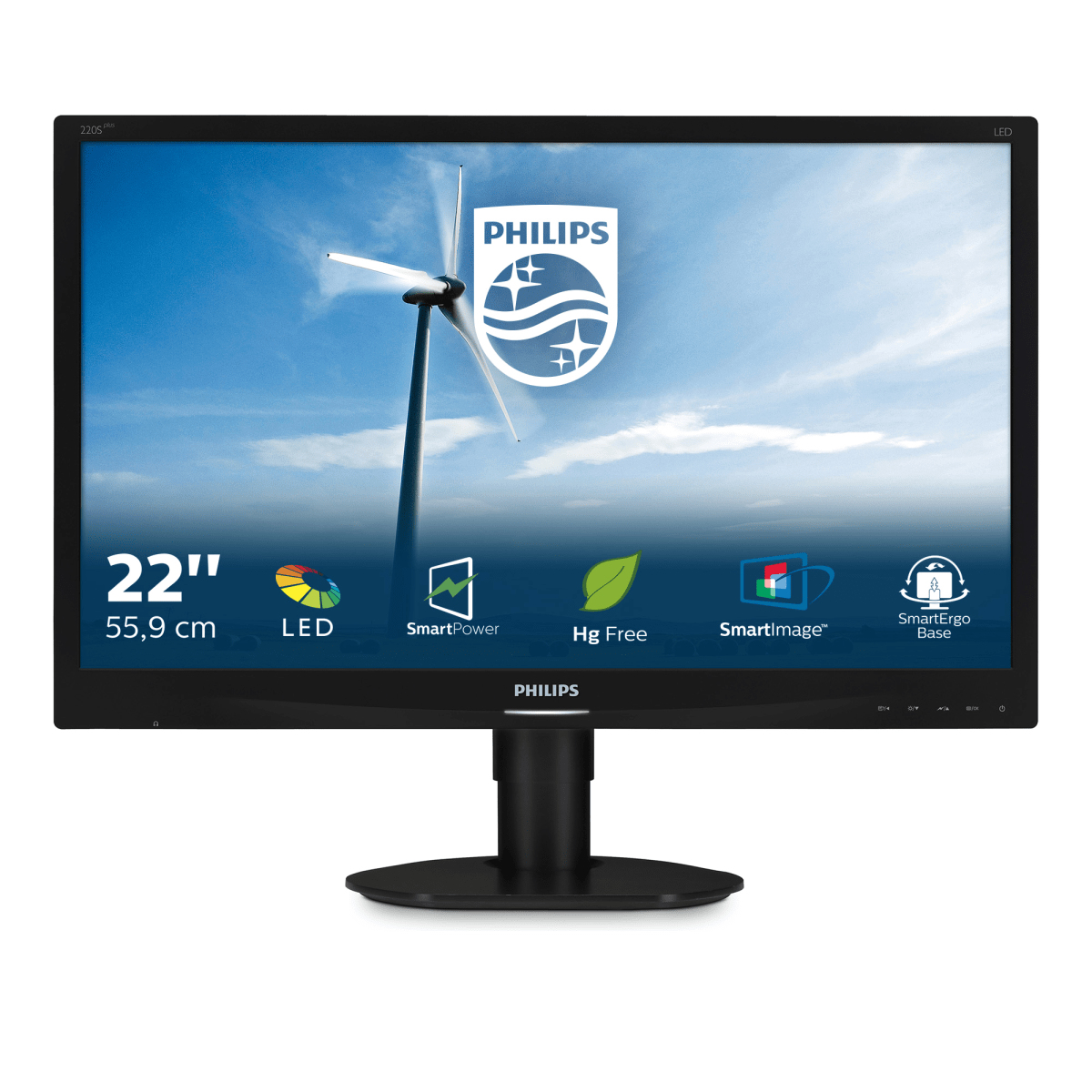

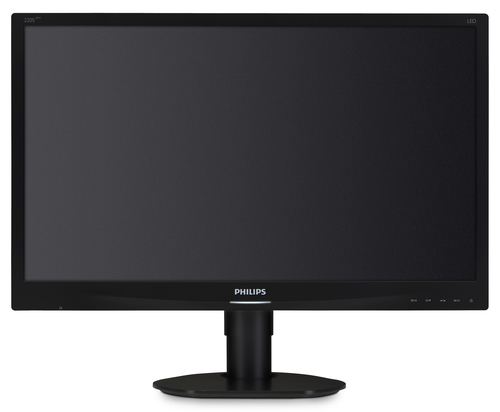

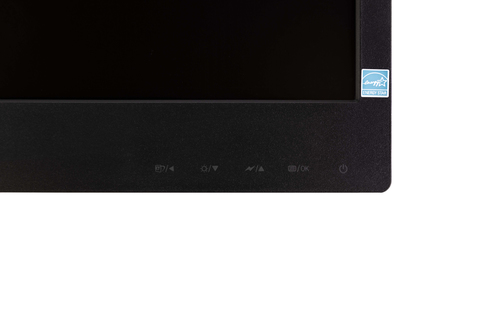

S Line LCD monitor with SmartImage 220S4LYCB/00
Model 220S4LYCB/00EAN 5057454634065
110 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
- Market positioningHome
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Market positioning
- Home
- Brand
- Philips
- Category
- Monitor
- Model
- 220S4LYCB/00
- Part number
- 220S4LYCB/00
- EAN / UPC
- 5057454634065, 8712581641542
- Also known as
- Philips S Line LCD monitor with SmartImage 220S4LYCB/00
Specifications
110 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | WSXGA+ |
| Panel type | TFT |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Colour gamut standard | sRGB |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
| Front bezel colour | Black |
| Detachable stand | Yes |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | No |
| DisplayPorts quantity | 1 |
| Audio input | No |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|

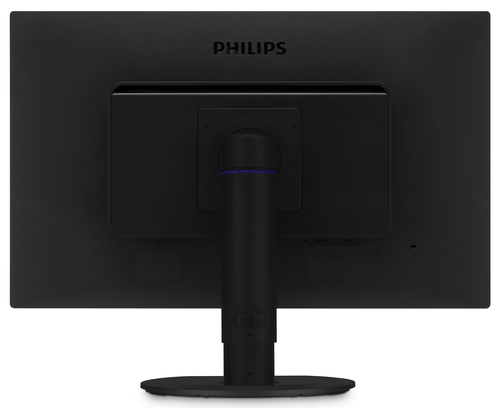

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |

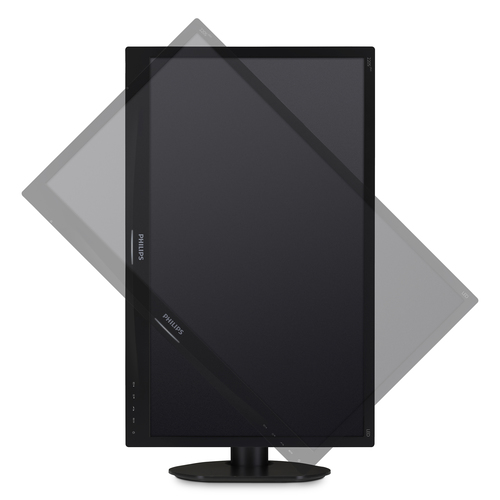

| Pivot | Yes |
| Pivot angle | 90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -65 - 65° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 15.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 504 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 509 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 504 mm |
| Depth (without stand) | 59 mm |
| Height (without stand) | 349 mm |
| Weight (without stand) | 3.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 186 mm |
| Package height | 391 mm |
| Package weight | 7.05 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Bundled software | SmartControl |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Doesn't contain | BRF, PVC |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Mean time between failures (MTBF) | 70000 h |
| Certification | CE Mark, FCC Class B, SEMKO, UL/cUL, BSMI, CU-EAC, TUV Ergo, TUV/GS, CECP |
| Supplied AC adapter type | AC |
Recycling data
| Specification | Value |
|---|---|
| Overall recyclability rate | 25% |
| Overall recycled content | 25% |
| Packaging recyclability rate | 100% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
