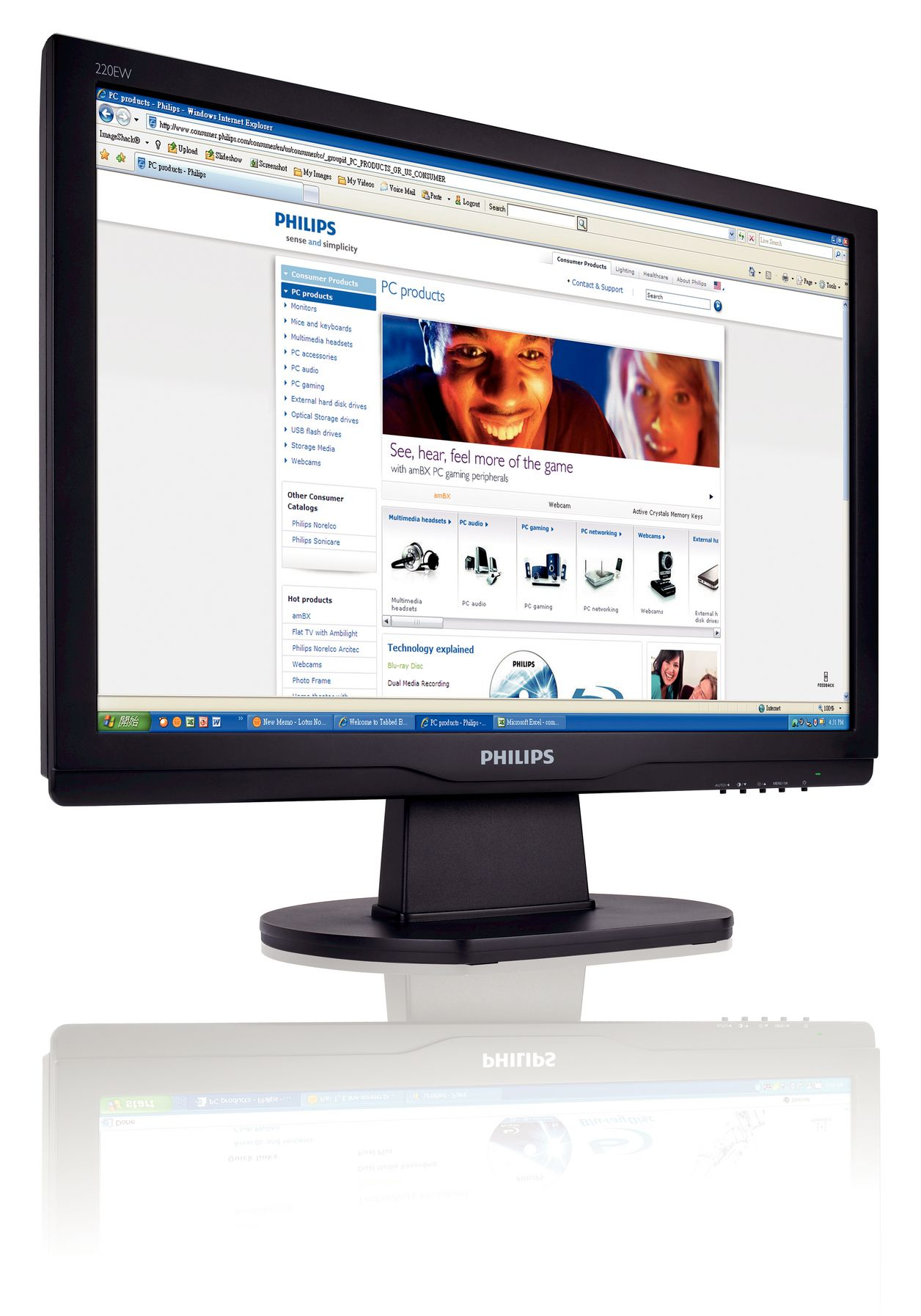

Philips 220EW9FB 22" wide 21.6"w Display WSXGA+ LCD widescreen monitor

Model 220EW9FB/93EAN 8712581428457

81 specifications Checked 8 days ago

Overview

Brand: Philips
Category: Monitor
Model: 220EW9FB/93
Part number: 220EW9FB/93
EAN / UPC: 8712581428457
Also known as: Philips 220EW9FB 22" wide 21.6"w Display WSXGA+ LCD widescreen monitor

81 specifications in 12 groups

Specification	Value
Display diagonal	54.9 cm (21.6")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WXGA+
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.277 x 0.277 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
Pixel frequency	165 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp

Specification	Value
Windows operating systems supported	Yes

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-4 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian, Turkish
Number of OSD languages	9
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Relative humidity	20 - 90%

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	464.9 x 290.6 mm
Effective viewing area	464.9 x 290.6 mm
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, Energy Star, FCC Class B, UL/cUL, RoHS
Box depth (imperial)	14 cm (5.5")
Box height (imperial)	48 cm (18.9")
Set depth (inch)	5.59 cm (2.2")
Set depth (with stand) (inch)	22.6 cm (8.9")
Set height (inch)	34.8 cm (13.7")
Set height (with stand) (inch)	42.4 cm (16.7")
Weight (with stand) (imperial)	4.49 kg (9.9 lbs)
