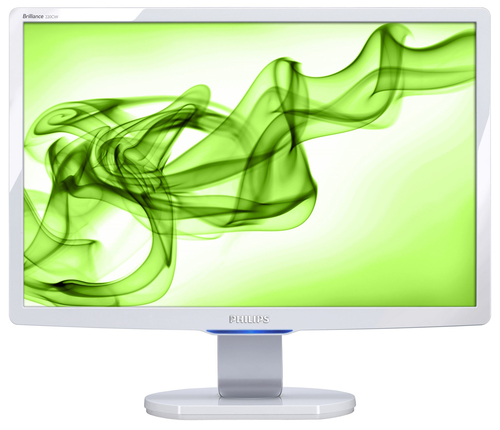

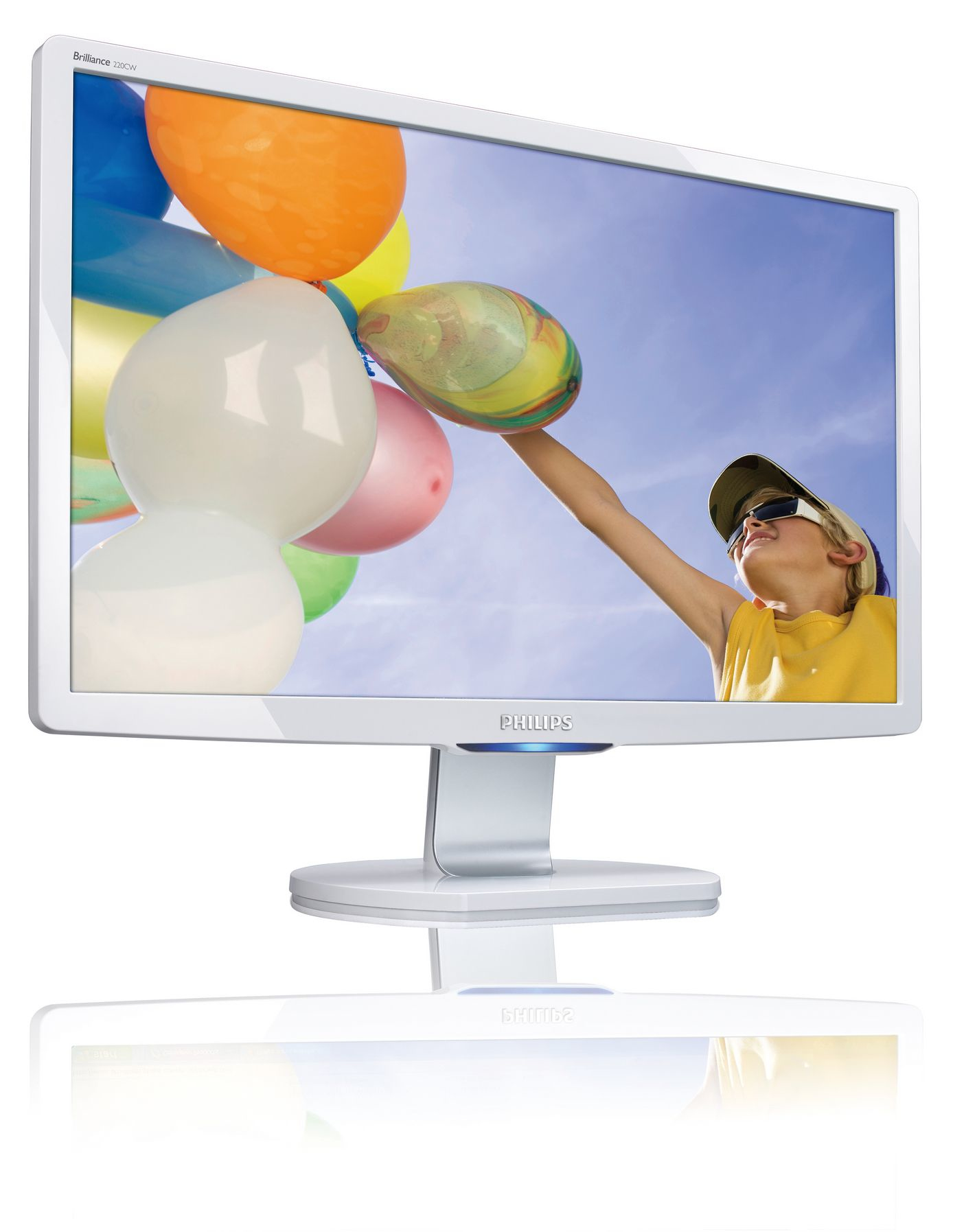

Philips Brilliance 220CW9FW

22" wide WSXGA+ LCD widescreen monitor

Model 220CW9FW/93EAN 8712581452087

88 specifications Checked 9 days ago

Overview

Brand: Philips
Category: Monitor
Model: 220CW9FW/93
Part number: 220CW9FW/93
EAN / UPC: 8712581452087
Also known as: Philips Brilliance 220CW9FW 22" wide WSXGA+ LCD widescreen monitor

88 specifications in 12 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WSXGA+
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	12000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
SmartResponse	2 ms
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Pixel frequency	165 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	White

Specification	Value
VESA mounting	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Power consumption (typical)	45 W
Power consumption (off)	0.8 W
Power consumption (PowerSave)	34 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	474 x 296 mm
Effective viewing area	474 x 296 mm
Power consumption (economy mode)	34 W
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark Energy Star FCC Class B SEMKO UL/cUL TCO '06
Box depth (imperial)	14.5 cm (5.71")
Box height (imperial)	49.2 cm (19.4")
Set depth (inch)	6.91 cm (2.72")
Set depth (with stand) (inch)	20.1 cm (7.91")
Set height (inch)	34.3 cm (13.5")
Set height (with stand) (inch)	42.4 cm (16.7")
Weight (with stand) (imperial)	4.4 kg (9.7 lbs)
