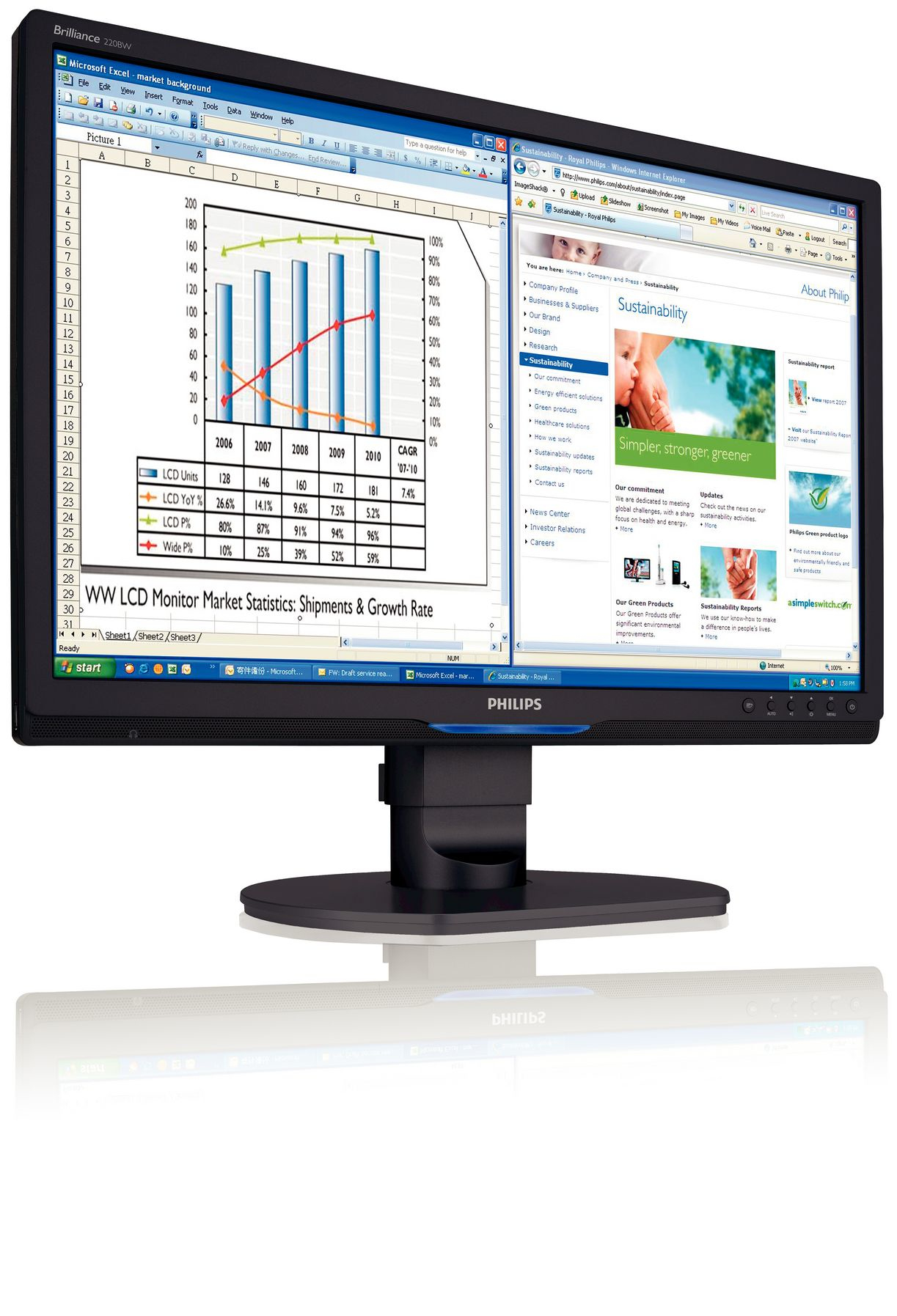

Philips Brilliance 220BW9CB

22" wide WSXGA+ LCD widescreen monitor

Model 220BW9CB/93EAN 8712581410834

92 specifications Checked 4 days ago

Overview

Brand: Philips
Category: Monitor
Model: 220BW9CB/93
Part number: 220BW9CB/93
EAN / UPC: 8712581410834
Also known as: Philips Brilliance 220BW9CB 22" wide WSXGA+ LCD widescreen monitor

92 specifications in 12 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WSXGA+
Display brightness (typical)	300 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	10000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Product colour	Black
Feet colour	Black

Specification	Value
Built-in USB hub	No
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
PC Audio in	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	7 cm
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	474 x 296 mm
Effective viewing area	474 x 296 mm
Power consumption (economy mode)	34 W
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, Energy Star, FCC Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL
Box depth (imperial)	17.3 cm (6.81")
Box height (imperial)	49 cm (19.3")
Set depth (inch)	5.74 cm (2.26")
Set depth (with stand) (inch)	22.8 cm (8.98")
Set height (inch)	34.5 cm (13.6")
Set height (with stand) (inch)	44.7 cm (17.6")
Weight (with stand) (imperial)	5.13 kg (11.3 lbs)
