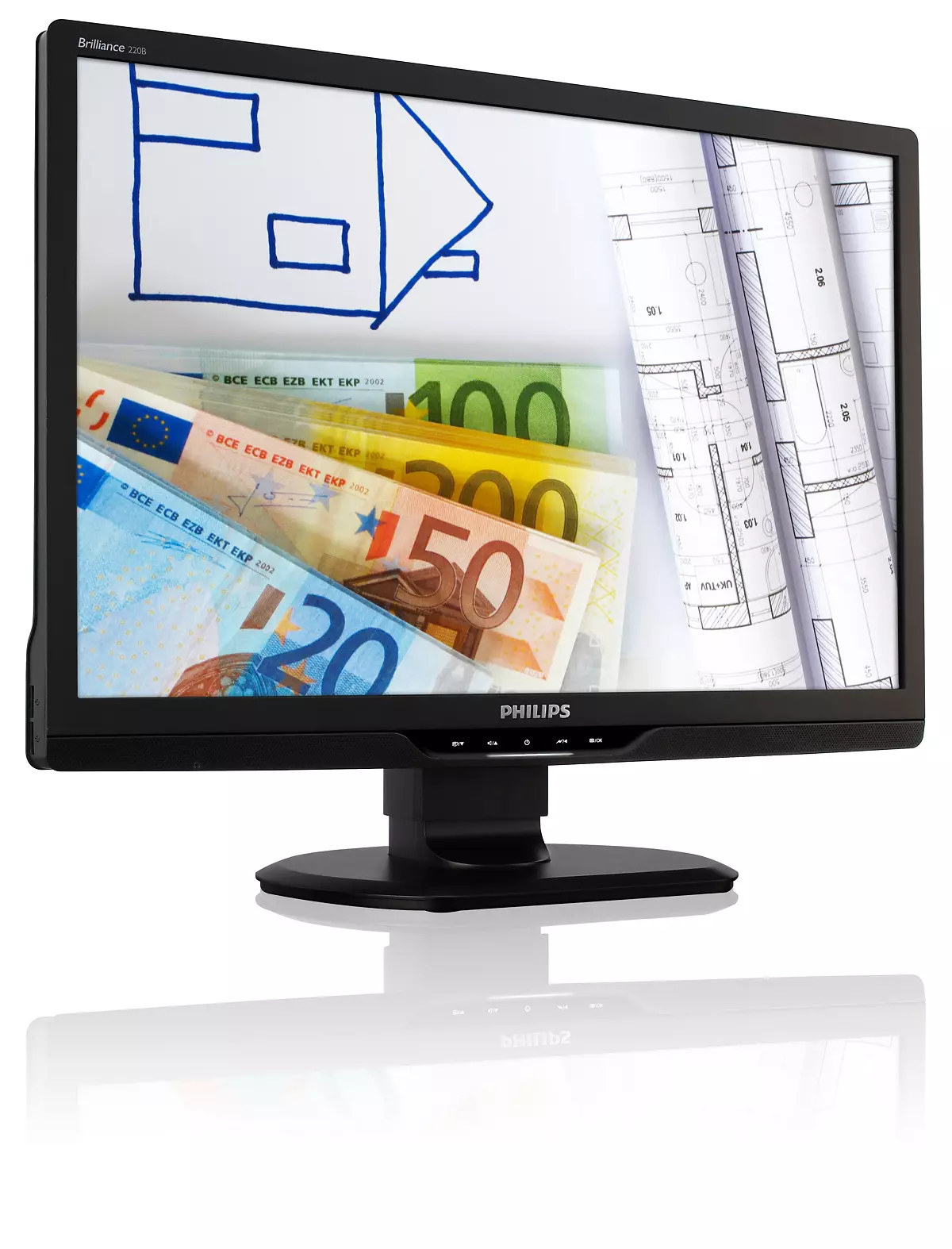

Brilliance 220B2CB/73 computer monitor

55.9 cm (22") 1680 x 1050 pixels WSXGA+ LCD Black

Model 220B2CB/73EAN 8712581535223

99 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Power consumption (typical)22.5 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Power consumption (typical): 22.5 W

Brand: Philips
Category: Monitor
Model: 220B2CB/73
Part number: 220B2CB/73
EAN / UPC: 8712581535223
Also known as: Philips Brilliance 220B2CB/73 computer monitor 55.9 cm (22") 1680 x 1050 pixels WSXGA+ LCD Black

Specifications

99 specifications in 14 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WSXGA+
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (dynamic)	500000:1
Dynamic contrast ratio marketing name	SmartContrast
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.7 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 75 Hz
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
Display diagonal (metric)	55.9 cm
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Display sRGB	Yes
Display panel size	22 inch / 55.9 cm

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	7 cm
Swivelling	Yes
Swivel angle range	-65 - 65°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Portuguese, English, French, German, Italian, Russian, Simplified Chinese, Spanish
Number of OSD languages	8
Plug and Play	Yes
LED indicators	Operation, Stand-by

Power

Specification	Value
Power consumption (typical)	22.5 W
Power consumption (standby)	0.1 W
Power consumption (off)	0 W
AC input voltage	100 - 240 V
Power supply type	Internal

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	484 x 505 x 249 mm
Width (with stand)	484 mm
Depth (with stand)	249 mm
Height (with stand)	505 mm
Weight (with stand)	5.17 kg
Width (without stand)	351 mm
Depth (without stand)	59 mm
Height (without stand)	505 mm
Weight (without stand)	4.15 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	468 x 565 x 175 mm
Package width	468 mm
Package depth	175 mm
Package height	565 mm
Package weight	6.92 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Compatible operating systems	Windows 7/Vista/XP/2000/98; Mac OS X
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Monitor sync input signal	Separate Sync; Sync on Green
Signal input	VGA (Analog ); DVI-D (digital, HDCP)
Mean time between failures (MTBF)	50000 h
Certification	RoHS
Picture enhancement	SmartImage
Regulatory Approvals	BSMI; CE Mark; FCC; Class B; GOST; SEMKO; TCO 5.0; TUV/GS; TUV Ergo; UL/cUL
User controls	SmartPower; SmartImage; Volume; PowerSensor; Menu; Power On/Off

Recycling data

Specification	Value
Packaging recyclability rate	100%

Thin Client

Specification	Value
Thin client installed	No
