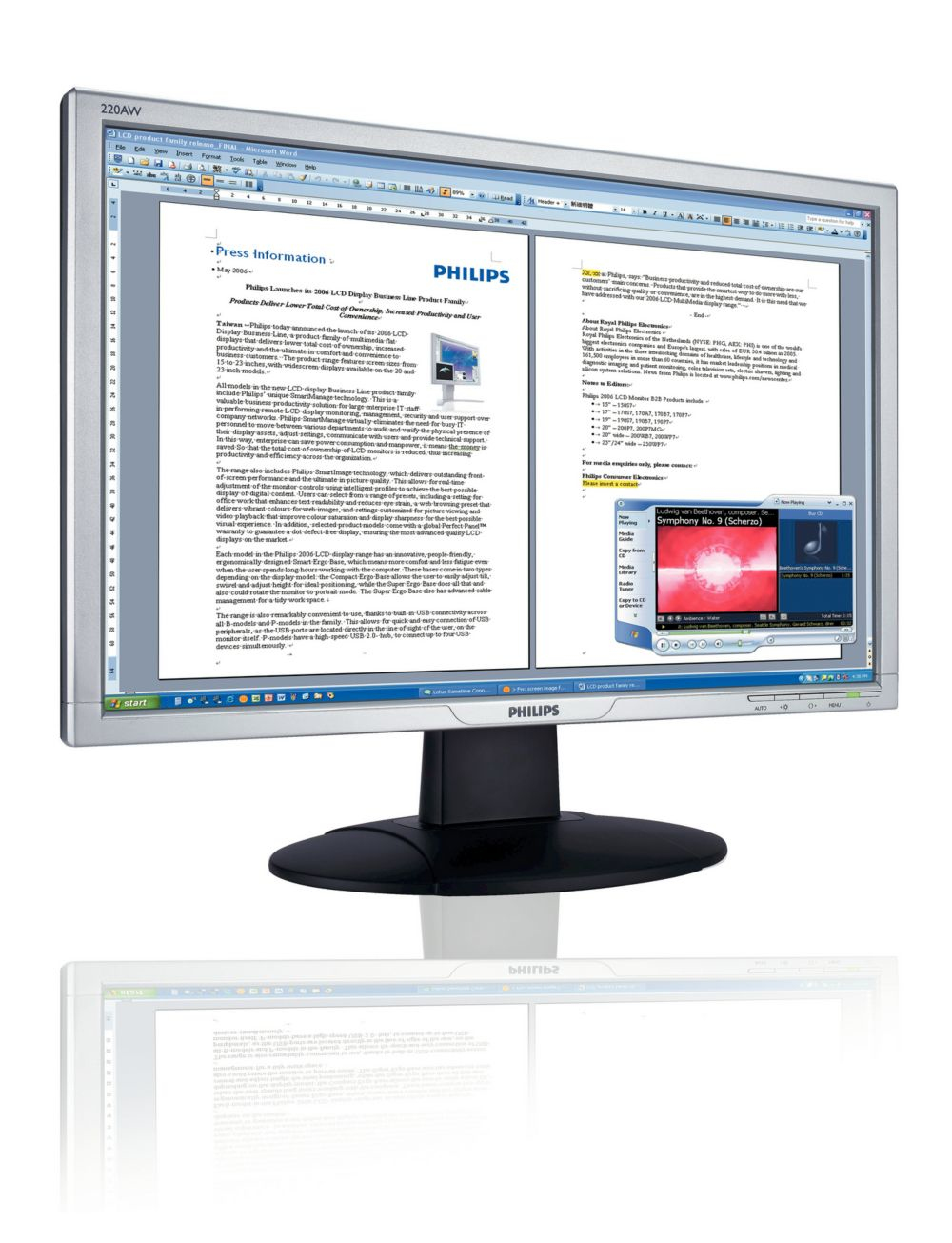

Philips 220AW8FS 22" wide WSXGA LCD widescreen monitor
Model 220AW8FS/00EAN 8712581355425
79 specifications Checked 4 days ago
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Power consumption (typical)49 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Power consumption (typical)
- 49 W
- Brand
- Philips
- Category
- Monitor
- Model
- 220AW8FS/00
- Part number
- 220AW8FS/00
- EAN / UPC
- 8712581355425
- Also known as
- Philips 220AW8FS 22" wide WSXGA LCD widescreen monitor
Specifications
79 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| HD type | HD |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 93 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| Pixel frequency | 205 MHz |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| Video input impedance | 75 Ω |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 1 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| PC Audio in | Yes |
| HDCP | Yes |
| Card reader integrated | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Russian |
| Number of OSD languages | 6 |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 49 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 513.8 mm |
| Depth (with stand) | 213.6 mm |
| Height (with stand) | 416.2 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 513.8 mm |
| Depth (without stand) | 67.3 mm |
| Height (without stand) | 336.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 472 mm |
| Package height | 174 mm |
| Package weight | 7.6 kg |
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Placement supported | Horizontal |
| Sync input impedance | 2200 Ω |
| Mean time between failures (MTBF) | 50000 h |
| Compliance industry standards | RoHS |
| Certification | CE, FCC, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,UL/cUL |
| Supplied AC adapter type | AC |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
