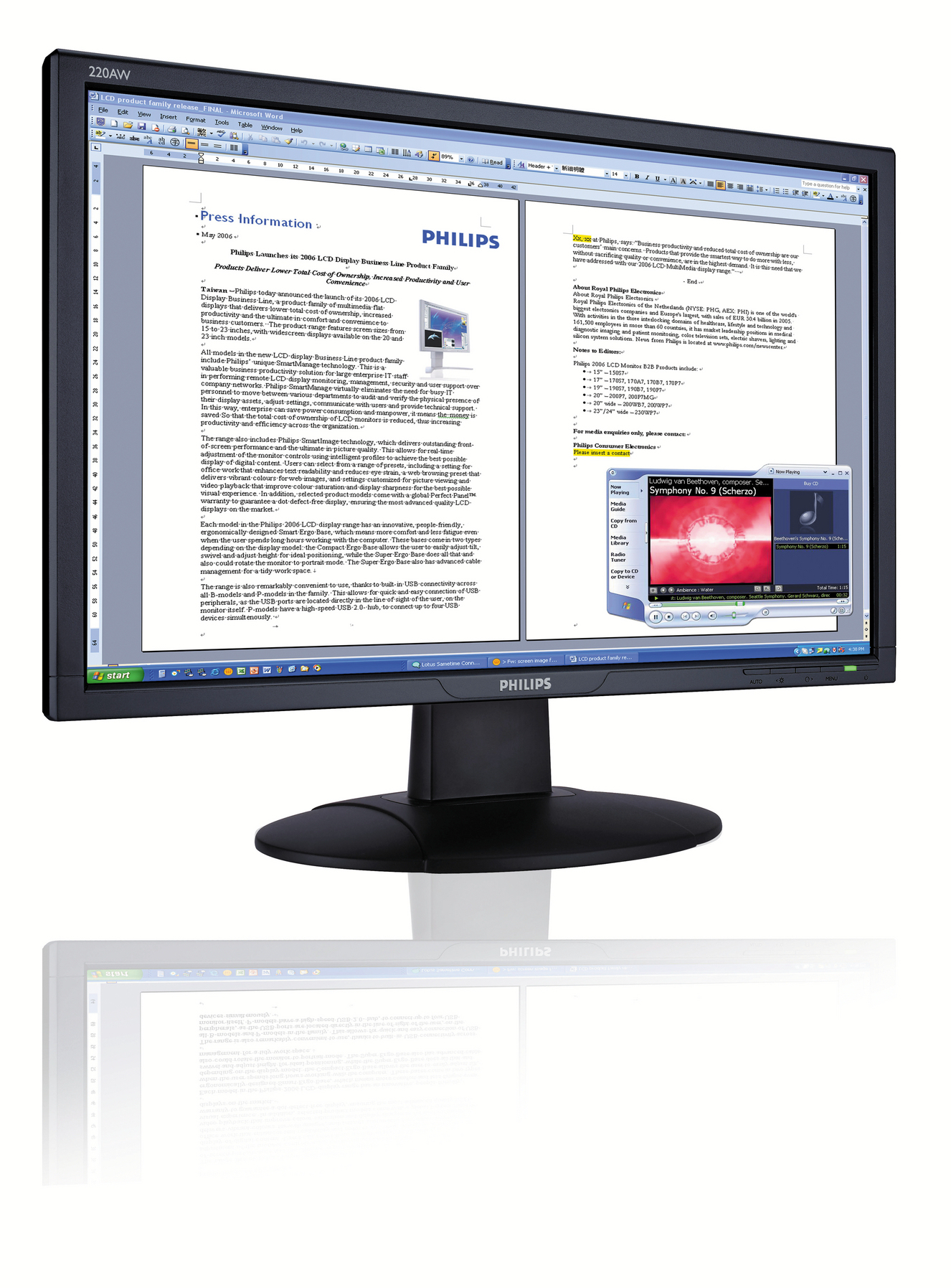

Philips 22" LCD widescreen monitor

Philips 22" LCD widescreen monitor

Model 22" LCD widescreen monitorPart no. 220AW8FB/00EAN 8712581355418

57 specifications Checked 4 days ago
  • Display55.9 cm (22")
  • Resolution1680 x 1050 pixels
  • ColourBlack
  • VGA (D-Sub) ports quantity1
  • Panel mounting interface100 x 100 mm
  • Power consumption (typical)49 W
See all specifications

Overview

Display
55.9 cm (22")
Resolution
1680 x 1050 pixels
Colour
Black
VGA (D-Sub) ports quantity
1
Panel mounting interface
100 x 100 mm
Power consumption (typical)
49 W
Brand
Philips
Category
Monitor
Model
22" LCD widescreen monitor
Part numbers
220AW8FB/00, 194706
EAN / UPC
8712581355418
Also known as
Philips 220AW8FB 22

Specifications

57 specifications in 9 groups

Display

Display diagonal55.9 cm (22")
Display resolution1680 x 1050 pixels
Native aspect ratio16:10
TouchscreenNo
Display brightness (typical)300 cd/m²
Response time5 ms
Aspect ratio16:10
Contrast ratio (typical)1000:1
Viewing angle, horizontal160°
Viewing angle, vertical160°
Pixel pitch0.282 x 0.282 mm
Viewable size, horizontal47.3 cm
Viewable size, vertical29.1 cm
Digital horizontal frequency30 - 93 kHz
Digital vertical frequency56 - 76 Hz
Sync-on-green (SOG)Yes
Pixel frequency205 MHz
Separate H/V syncYes
Composite syncYes
Video input impedance75 Ω
Video input signal levels0.7 Vpp
White Chromaticity, 6500Kx = 0.313 / y = 0.329
White Chromaticity, 9300Kx = 0.283 / y = 0.297

Design

Product colourBlack

Ports & interfaces

VGA (D-Sub) ports quantity1
DVI-D ports quantity1
PC Audio inYes

Ergonomics

Panel mounting interface100 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Tilt angle range-5 - 25°
Plug and PlayYes

Power

Power consumption (typical)49 W
Power consumption (off)1 W

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)513.8 mm
Depth (with stand)213.6 mm
Height (with stand)416.2 mm
Weight (with stand)5.8 kg
Width (without stand)513.8 mm
Depth (without stand)67.3 mm
Height (without stand)336.1 mm

Packaging data

Package width565 mm
Package depth472 mm
Package height174 mm
Package weight7.6 kg

Other features

Power requirements100-240VAC, 50/60Hz
Mean time between failures (MTBF)50000 h
CertificationCE Mark, Energy Star, FCC Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL
Box depth (imperial)47.2 cm (18.6")
Box height (imperial)17.5 cm (6.9")
Set depth (inch)6.86 cm (2.7")
Set depth (with stand) (inch)21.3 cm (8.4")
Set height (inch)33.5 cm (13.2")
Set height (with stand) (inch)41.7 cm (16.4")
