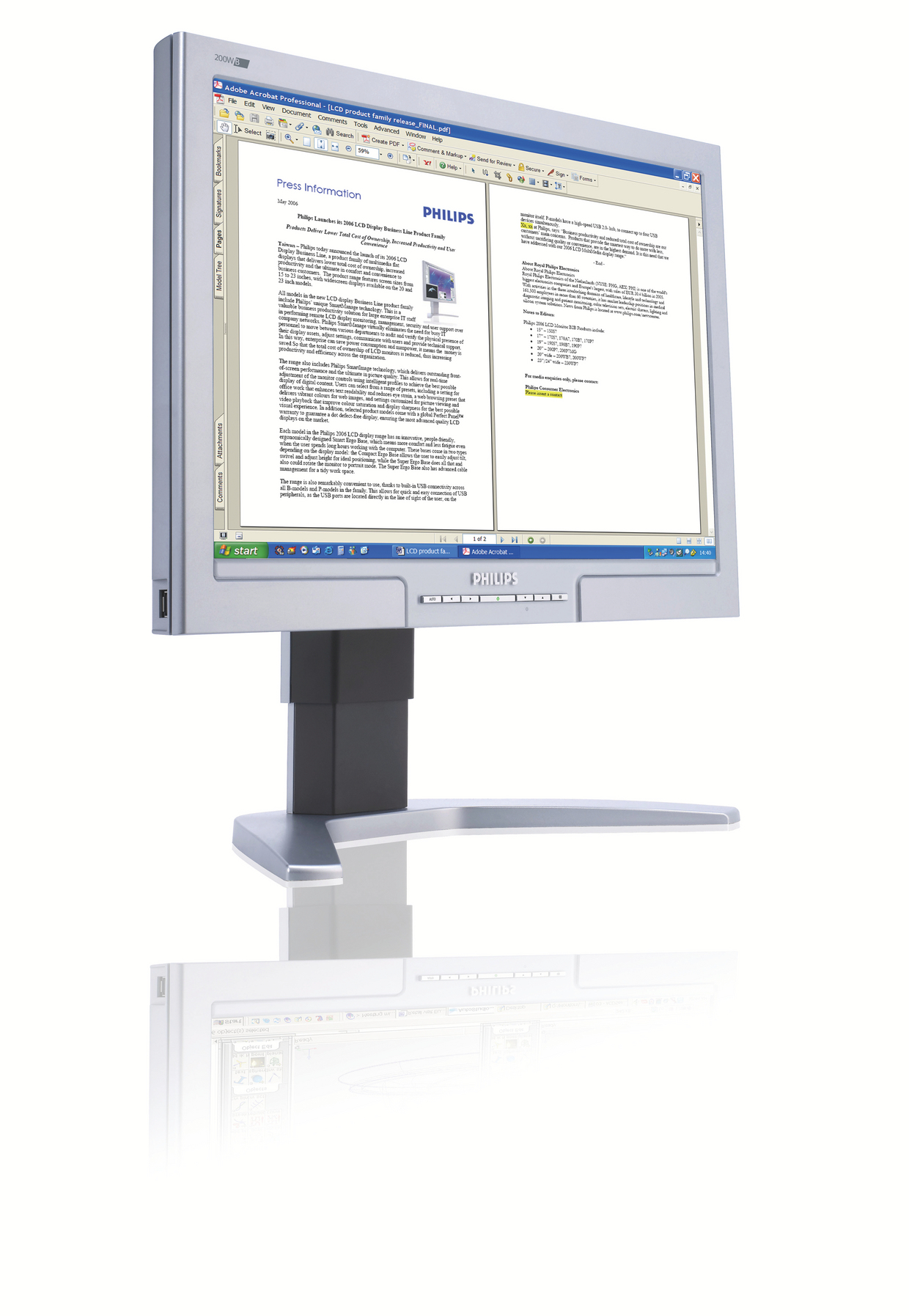

Philips 200WB7ES 20" WSXGA LCD widescreen monitor

Model 200WB7ES/96

93 specifications Checked 4 days ago

Overview

93 specifications in 13 groups

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	600:1
Viewing angle, horizontal	160°
Viewing angle, vertical	145°
Display number of colours	16.78 million colours
Pixel pitch	0.258 x 0.258 mm
Horizontal scan range	30 - 98 kHz
Vertical scan range	56 - 76 Hz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Pixel frequency	205 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
Video input signal levels	0.7 Vpp
White Chromaticity, 6500K	x = 0.313 / y = 0.329
White Chromaticity, 9300K	x = 0.283 / y = 0.297

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Product colour	Black, Silver

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian
Number of OSD languages	6
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Cables included	AC, DVI, USB, VGA
Manual	Yes

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	433.4 x 270.9 mm
Effective viewing area	433.4 x 270.9 mm
Height adjustment range (imperial)	5.1
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Box depth (imperial)	26.7 cm (10.5")
Box height (imperial)	51.3 cm (20.2")
Set depth (inch)	6.86 cm (2.7")
Set depth (with stand) (inch)	21.6 cm (8.5")
Set height (inch)	33.8 cm (13.3")
Set height (with stand) (inch)	40.1 cm (15.8")
Weight (with stand) (imperial)	8.57 kg (18.9 lbs)
Supplied AC adapter type	AC
