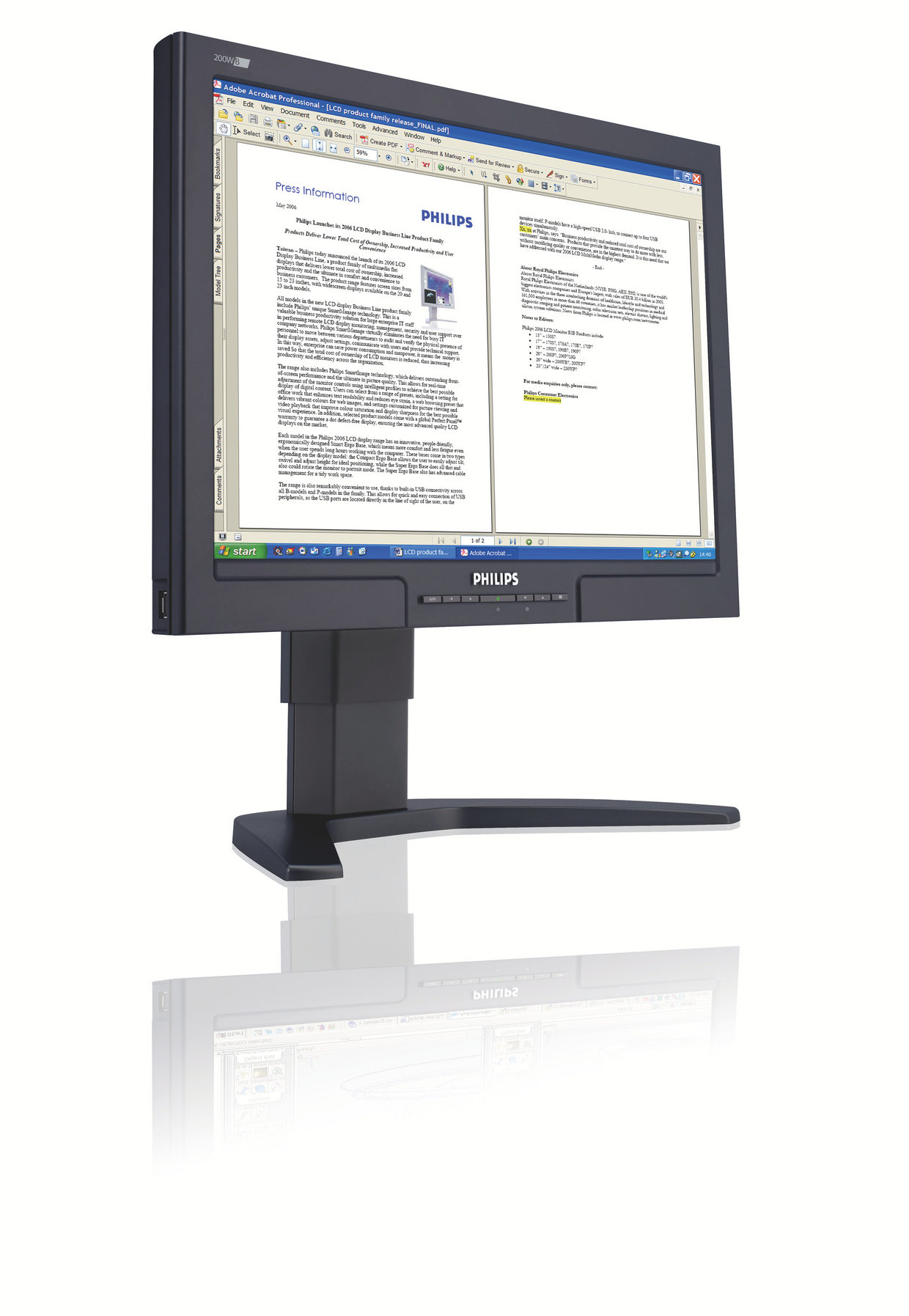

200WB7EB 20" WSXGA LCD widescreen monitor

Model 200WB7EB/27EAN 609585111622

90 specifications Checked today

Display51 cm (20.1")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
USB hub version2.0
VESA mountingYes

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
USB hub version: 2.0
VESA mounting: Yes

Brand: Philips
Category: Monitor
Model: 200WB7EB/27
Part number: 200WB7EB/27
EAN / UPC: 609585111622
Also known as: Philips 200WB7EB 20" WSXGA LCD widescreen monitor

Specifications

90 specifications in 14 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Display surface	Matt
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	600:1
Viewing angle, horizontal	160°
Viewing angle, vertical	145°
Display number of colours	16.78 million colours
Pixel pitch	0.258 x 0.258 mm
Horizontal scan range	30 - 98 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	43.4 cm
Viewable size, vertical	27.2 cm
Viewable size diagonal	51 cm
Digital horizontal frequency	30 - 98 kHz
Digital vertical frequency	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Pixel frequency	205 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω

Performance

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Hom

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
HDCP	No
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, English, Spanish, French, Portuguese
Number of OSD languages	5
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	50 W
Power consumption (standby)	1 W
Power consumption (off)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	483 mm
Depth (with stand)	215.3 mm
Height (with stand)	402 mm
Weight (with stand)	8.6 kg
Width (without stand)	483 mm
Depth (without stand)	68.7 mm
Height (without stand)	338.5 mm

Packaging data

Specification	Value
Package width	579 mm
Package depth	267 mm
Package height	513 mm
Package weight	10.7 kg

Packaging content

Specification	Value
Cables included	AC, DVI, USB, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Effective viewing area	434.34 x 271.78 mm
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, FCC-B, UL, CSA, SEMKO, TCO 03, TUV/GS, TUV Erg
Dimensions (W x D x H) (imperial)	482.6 x 68.6 x 337.8 mm (19 x 2.7 x 13.3")
Box dimensions (W x D x H)	579 x 267 x 513 mm
Weight (with stand) (imperial)	8.57 kg (18.9 lbs)
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
