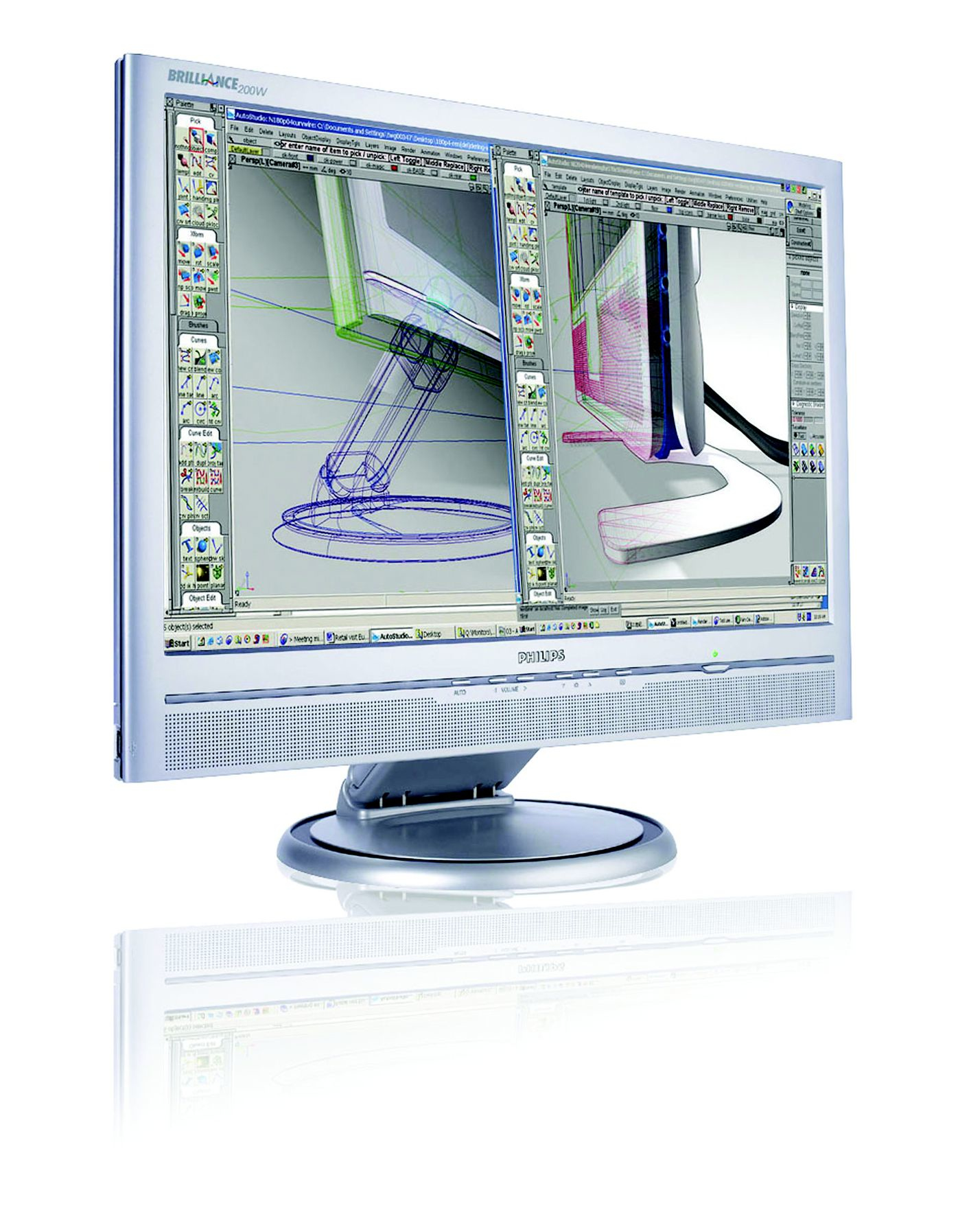

Brilliance 200W6CS
20" WSXGA LCD widescreen monitor
Model 200W6CS/00EAN 8710895889728
64 specifications Checked today
- Display50.8 cm (20")
- Resolution1680 x 1050 pixels
- ColourSilver
- RMS rated power2 W
- Built-in USB hubYes
- Panel mounting interface100 x 100 mm
Overview
- Display
- 50.8 cm (20")
- Resolution
- 1680 x 1050 pixels
- Colour
- Silver
- RMS rated power
- 2 W
- Built-in USB hub
- Yes
- Panel mounting interface
- 100 x 100 mm
- Brand
- Philips
- Category
- Monitor
- Model
- 200W6CS/00
- Part number
- 200W6CS/00
- EAN / UPC
- 8710895889728
- Also known as
- Philips Brilliance 200W6CS 20" WSXGA LCD widescreen monitor
Specifications
64 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 50.8 cm (20") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.258 x 0.258 mm |
| Horizontal scan range | 30 - 93 kHz |
| Vertical scan range | 56 - 85 Hz |
| Viewable size, horizontal | 43.3 cm |
| Viewable size, vertical | 27.1 cm |
| Digital horizontal frequency | 30 - 93 kHz |
| Digital vertical frequency | 56 - 85 Hz |
| Colour gamut standard | sRGB |
| Pixel frequency | 165 MHz |
| Display panel size | 20.1"/ 51 cm |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Multimedia
| Specification | Value |
|---|---|
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Audio input | Yes |
| I/O ports | USB 2.0 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 4.5 cm |
| Tilt angle range | -5 - 20° |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
| Maximum operating temperature range (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 478 mm |
| Depth (with stand) | 235 mm |
| Height (with stand) | 423.5 mm |
| Width (without stand) | 478 mm |
| Depth (without stand) | 235 mm |
| Height (without stand) | 423.5 mm |
| Weight (without stand) | 7.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Audio system | 2W RMS x 2 stereo speakers |
| Display modes | 39 |
| Display viewable area (HxV) | 433.4 x 270.9 mm |
| Effective viewing area | 433.4 x 270.9 mm |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 90-264 VAC, 50/60 Hz |
| Signal input | Analog (VGA) DVI-D PC Audio in |
| Video in | Composite Sync, Separate sync, Sync on green |
| Compliance industry standards | NUTEK |
| Certification | CE Mark FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo |
| Additional accessories | AC Power Cord DVI cable PC audio cable USB cable VGA cable |
| Convenience enhancements | Kensington lock compatible On-screen Display SmartManage enabled |
| Factory preload modes | 15 |
| User controls | Auto Brightness Control Left/Right Menu (OK) Power On/Off Up/Down Volume control Input Size |
| Supplied AC adapter type | LCD, 39 modes, Super Ergo Base |
