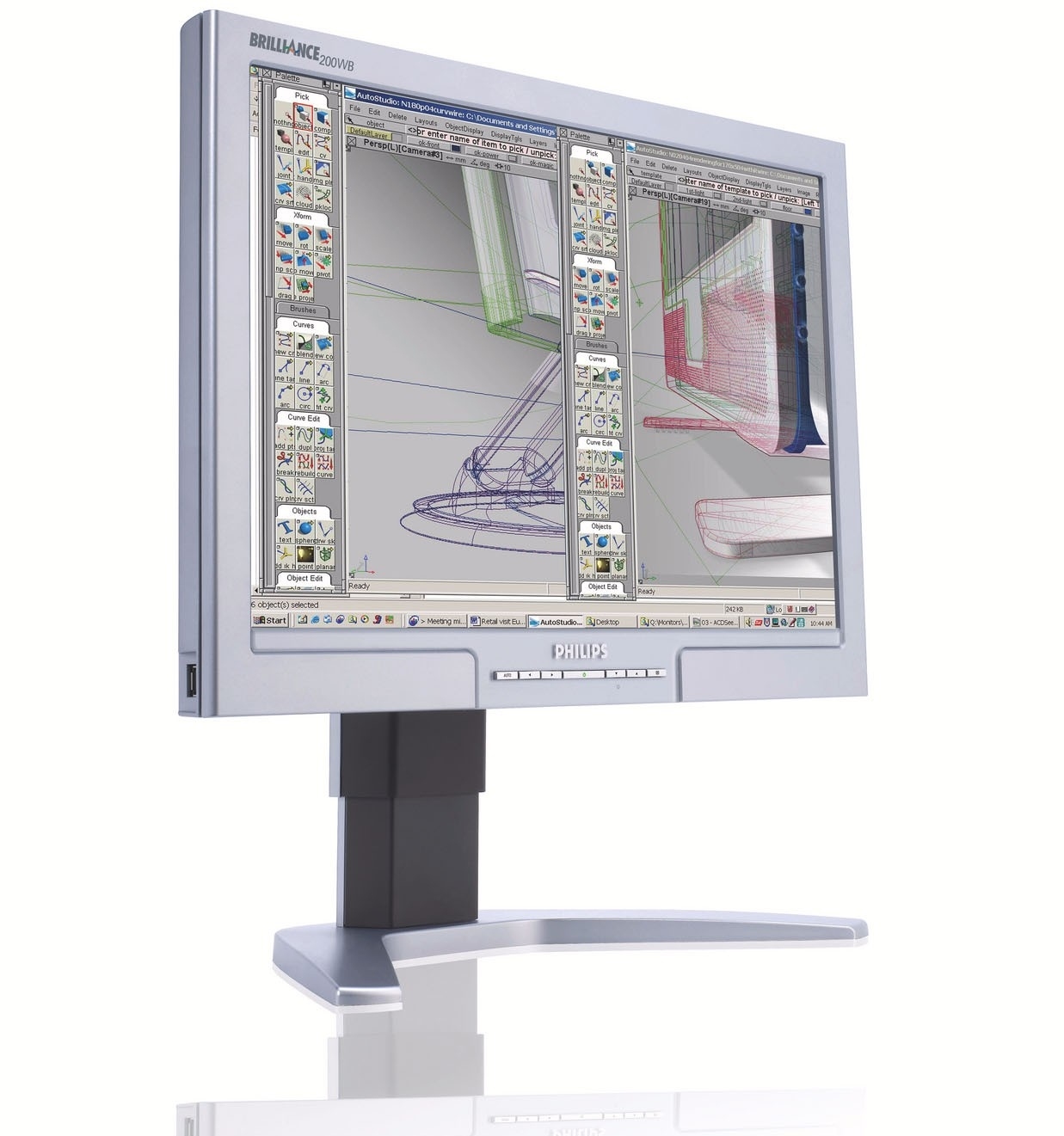

Philips 20" TFT Display

20" TFT Display

Model 20" TFT DisplayPart no. 200WB7ES/PH

43 specifications Checked today

Display51 cm (20.1")
Resolution1680 x 1050 pixels
ColourSilver
USB hub version2.0
Panel mounting interface100 x 100 mm
Power consumption (typical)50 W

See all specifications

Overview

Display: 51 cm (20.1")
Resolution: 1680 x 1050 pixels
Colour: Silver
USB hub version: 2.0
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 50 W

Brand: Philips
Category: Monitor
Model: 20" TFT Display
Part number: 200WB7ES/PH
Also known as: Philips 20" TFT Display computer monitor 51 cm (20.1") 1680 x 1050 pixels Silver

Specifications

43 specifications in 8 groups

Display

Specification	Value
Display diagonal	51 cm (20.1")
Display resolution	1680 x 1050 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	600:1
Viewing angle, horizontal	160°
Viewing angle, vertical	145°
Display number of colours	16.78 million colours
Pixel pitch	0.258 x 0.258 mm
Horizontal scan range	30 - 98 kHz
Vertical scan range	56 - 76 Hz
Viewable size diagonal	51 cm

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
Audio input	No
Audio output	No

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Swivel angle range	45 - 45°
Tilt angle range	-5 - 20°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	50 W
Power consumption (standby)	1 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	483 mm
Depth (with stand)	215.3 mm
Height (with stand)	402 mm
Width (without stand)	483 mm
Depth (without stand)	68.7 mm
Height (without stand)	338.5 mm

Other features

Specification	Value
Display viewable area (HxV)	433.4 x 270.9 mm
Mean time between failures (MTBF)	50000 h
Certification	CE-mark, FCC-B, UL, CSA, SEMKO, TCO'03, TÜV/GS, TÜV Ergo
Supplied AC adapter type	AC
