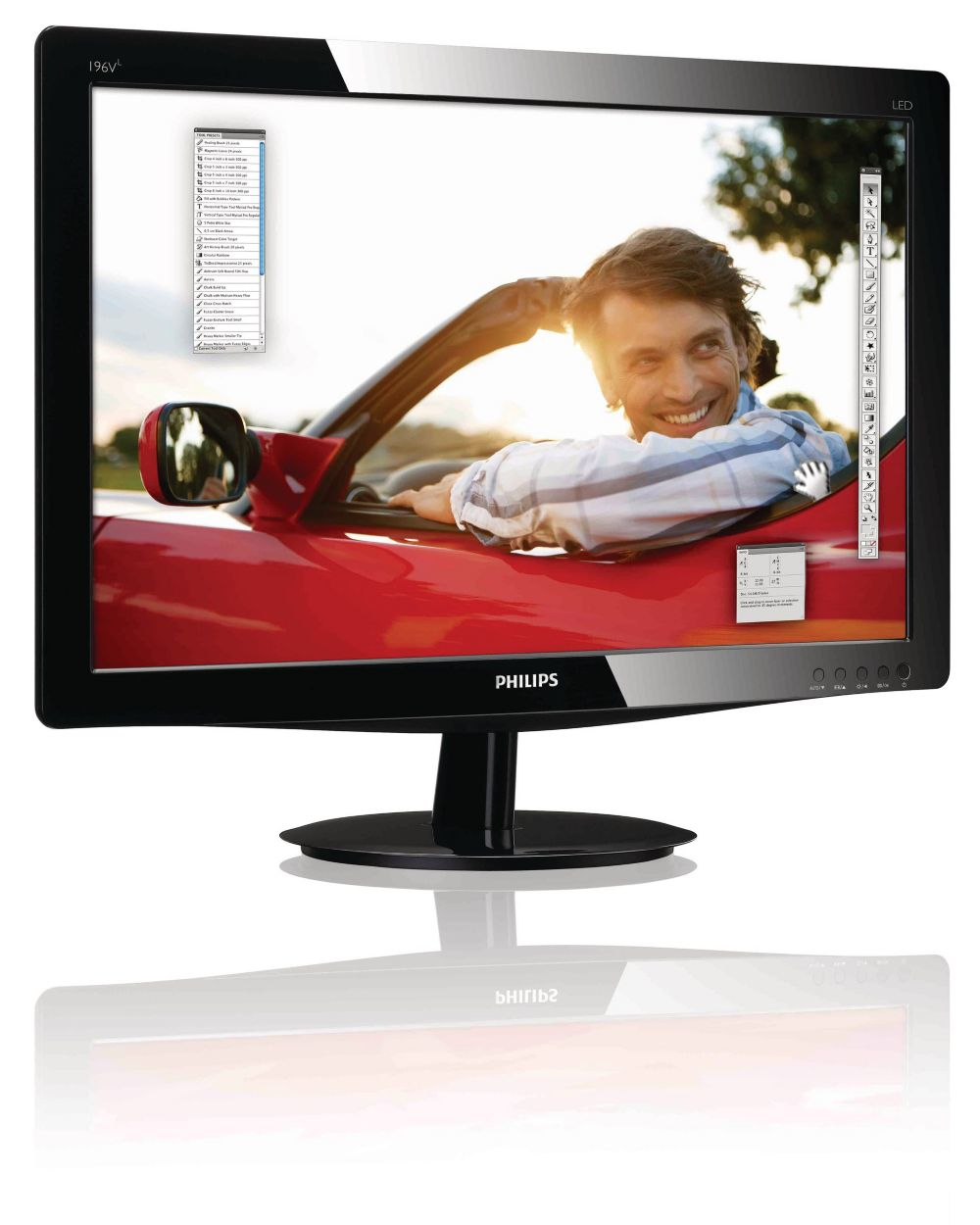

LED monitor 196V3LSB/97
Model 196V3LSB/97EAN 8712581601324
67 specifications Checked today
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ColourBlack
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
- Cable lock slotYes
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- Cable lock slot
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 196V3LSB/97
- Part number
- 196V3LSB/97
- EAN / UPC
- 8712581601324
- Also known as
- Philips LED monitor 196V3LSB/97
Specifications
67 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1366 x 768 |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.30 x 0.30 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 75 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| HDCP | No |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Dutch, English, Spanish, French, Italian, Portuguese, Russian, Turkish |
| Number of OSD languages | 9 |
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.15 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 463 mm |
| Depth (with stand) | 204 mm |
| Height (with stand) | 358 mm |
| Weight (with stand) | 2.39 kg |
| Width (without stand) | 463 mm |
| Depth (without stand) | 44 mm |
| Height (without stand) | 284 mm |
| Weight (without stand) | 2.09 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 507 mm |
| Package depth | 101 mm |
| Package height | 377 mm |
| Package weight | 3.36 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Certification | RoHS |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
