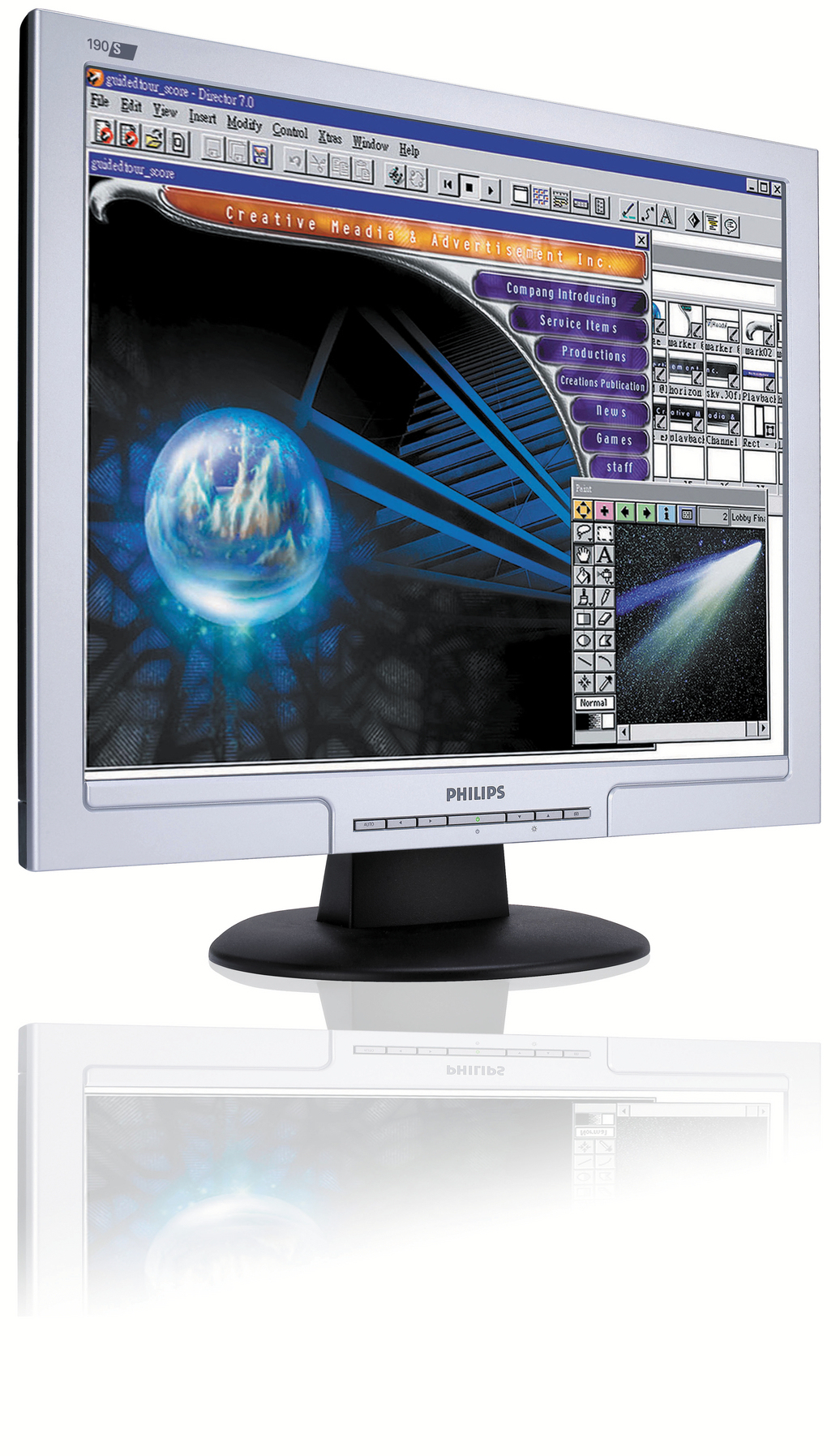

LCD monitor 190S7FS/00
Model 190S7FS/00EAN 8710895956239
69 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourSilver
- USB Type-A downstream ports quantity0
- Panel mounting interface100 x 100 mm
- Power consumption (standby)1 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- USB Type-A downstream ports quantity
- 0
- Panel mounting interface
- 100 x 100 mm
- Power consumption (standby)
- 1 W
- Brand
- Philips
- Category
- Monitor
- Model
- 190S7FS/00
- Part number
- 190S7FS/00
- EAN / UPC
- 8710895956239
- Also known as
- Philips LCD monitor 190S7FS/00
Specifications
69 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size diagonal | 48 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Colour gamut standard | sRGB |
| Pixel frequency | 140 MHz |
| Display panel size | 19"/ 48 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 20° |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 424 mm |
| Depth (with stand) | 235 mm |
| Height (with stand) | 418 mm |
| Weight (with stand) | 4.3 kg |
| Width (without stand) | 424 mm |
| Depth (without stand) | 65.1 mm |
| Height (without stand) | 361 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 505 x 198 x 579 mm |
| Package width | 490 mm |
| Package depth | 159 mm |
| Package height | 451 mm |
| Package weight | 6.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 376.3 x 301.1 mm |
| Effective viewing area | 376.3 x 301.1 mm |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 100-240VAC, 50/60Hz |
| Signal input | Analog (VGA) DVI-D |
| Sync input impedance | 2200 Ω |
| Compliance industry standards | Energy Star |
| Certification | CE Mark EMC FCC-B, UL, CSA Energy Star SEMKO TÜV/GS, TÜV Ergo TCO '03 |
| Additional accessories | AC Power Cord VGA cable |
| Box depth (imperial) | 16 cm (6.3") |
| Box height (imperial) | 45.2 cm (17.8") |
| Convenience enhancements | Kensington lock compatible On-screen Display SmartManage enabled |
| Set depth (inch) | 6.6 cm (2.6") |
| Set depth (with stand) (inch) | 21.1 cm (8.3") |
| Set height (inch) | 36.1 cm (14.2") |
| Set height (with stand) (inch) | 41.9 cm (16.5") |
| User controls | Auto Brightness Control Left/Right Menu (OK) Power On/Off Up/Down |
| Supplied AC adapter type | Super Ergo Base |
