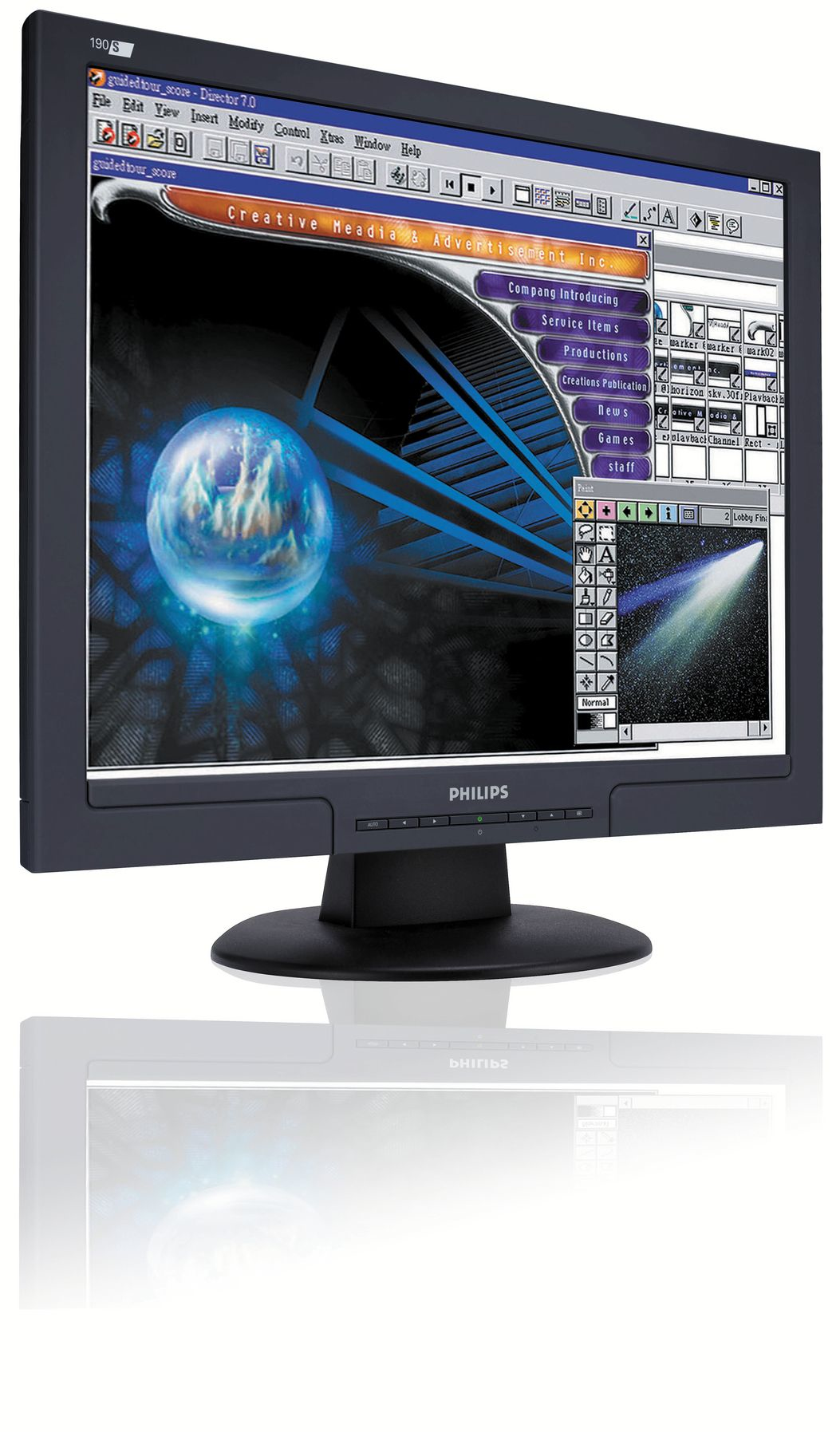

190S7FB 19" SXGA LCD monitor
Model 190S7FB/93EAN 8710895966290
79 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourBlack
- Built-in speaker(s)No
- VESA mountingYes
- Power consumption (typical)34 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- VESA mounting
- Yes
- Power consumption (typical)
- 34 W
- Brand
- Philips
- Category
- Monitor
- Model
- 190S7FB/93
- Part number
- 190S7FB/93
- EAN / UPC
- 8710895966290
- Also known as
- Philips 190S7FB 19" SXGA LCD monitor
Specifications
79 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display technology | LCD |
| Touchscreen | No |
| HD type | SXGA |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| DDC/CI | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Pixel frequency | 140 MHz |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| HDMI ports quantity | 0 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| On Screen Display (OSD) languages | Dutch, English, Spanish, French, Italian, Russian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 34 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 424 mm |
| Depth (with stand) | 211 mm |
| Height (with stand) | 418 mm |
| Weight (with stand) | 4.3 kg |
| Width (without stand) | 424 mm |
| Depth (without stand) | 65.1 mm |
| Height (without stand) | 361 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 174 mm |
| Package height | 451 mm |
| Package weight | 6.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Display viewable area (HxV) | 376.3 x 301.1 mm |
| Effective viewing area | 376.3 x 301.1 mm |
| Signal input | VGA (Analog ), DVI-D |
| Sync input impedance | 2200 Ω |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark EMC FCC-B, UL, CSA Energy Star SEMKO TÜV/GS, TÜV Ergo TCO '03 |
| Box depth (imperial) | 17.5 cm (6.9") |
| Box height (imperial) | 45.2 cm (17.8") |
| Set depth (inch) | 6.6 cm (2.6") |
| Set depth (with stand) (inch) | 21.1 cm (8.3") |
| Set height (inch) | 36.1 cm (14.2") |
| Set height (with stand) (inch) | 41.9 cm (16.5") |
| Weight (with stand) (imperial) | 4.31 kg (9.5 lbs) |
| Supplied AC adapter type | LCD |
