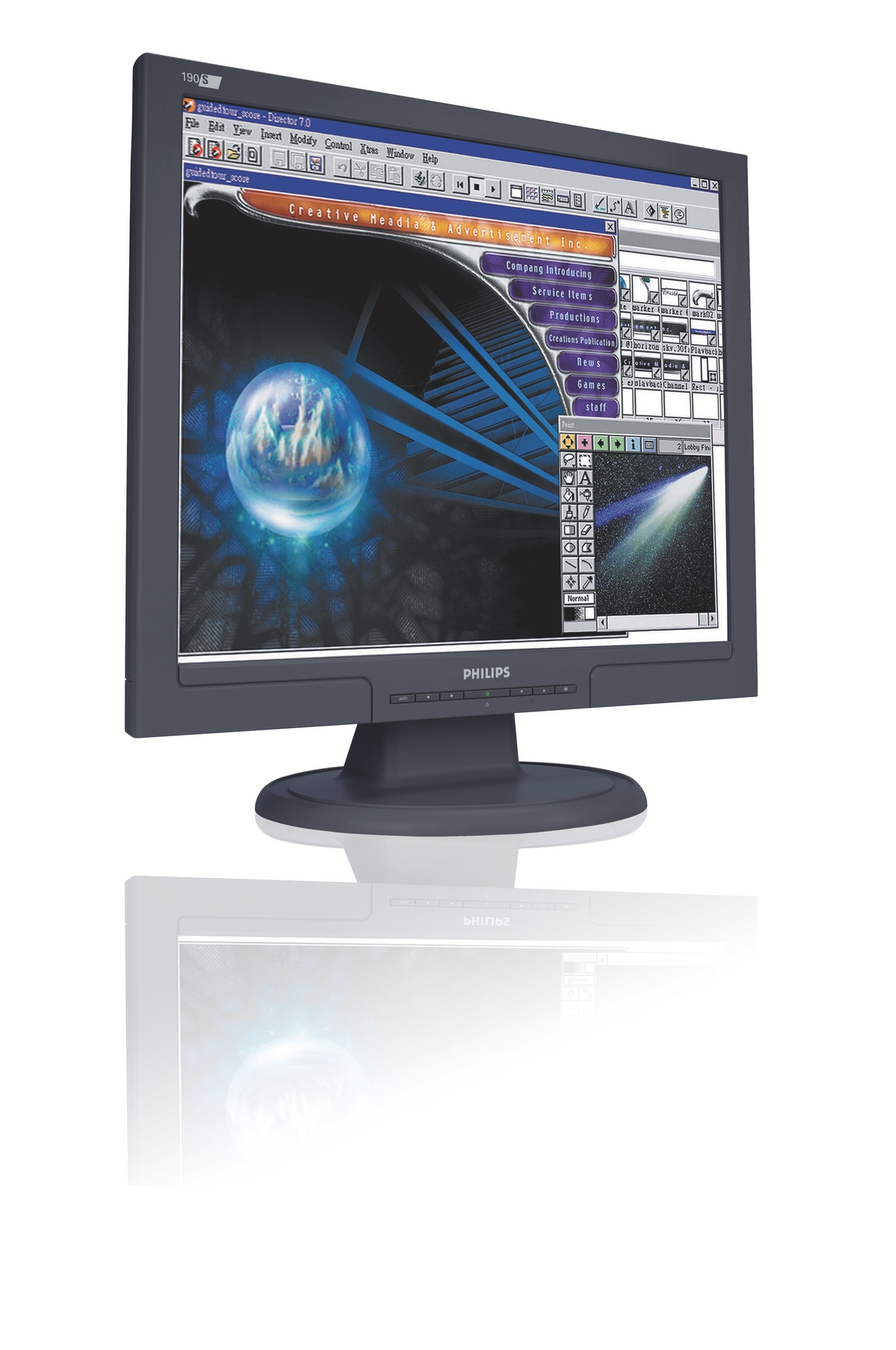

190S7FB 19" SXGA LCD monitor
Model 190S7FB/00EAN 8710895956246
45 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourBlack
- USB Type-A downstream ports quantity0
- Panel mounting interface100 x 100 mm
- Power consumption (typical)34 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- USB Type-A downstream ports quantity
- 0
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 34 W
- Brand
- Philips
- Category
- Monitor
- Model
- 190S7FB/00
- Part number
- 190S7FB/00
- EAN / UPC
- 8710895956246
- Also known as
- Philips 190S7FB 19" SXGA LCD monitor
Specifications
45 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size diagonal | 48 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 25° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 34 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 424 mm |
| Depth (with stand) | 235 mm |
| Height (with stand) | 418 mm |
| Weight (with stand) | 5.5 kg |
| Width (without stand) | 424 mm |
| Depth (without stand) | 65.1 mm |
| Height (without stand) | 361 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 505 x 198 x 579 mm |
| Package weight | 6.8 kg |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 376.3 x 301.1 mm |
| Power requirements | 100-240VAC, 50/60Hz |
| Mean time between failures (MTBF) | 50000 h |
| Special features | SmartManage |
| Certification | CE Mark, EMC, FCC-B, UL, CSA, Energy Star, SEMKO, TÜV/GS, TÜV Ergo, TCO '03 |
| Supplied AC adapter type | AC |
