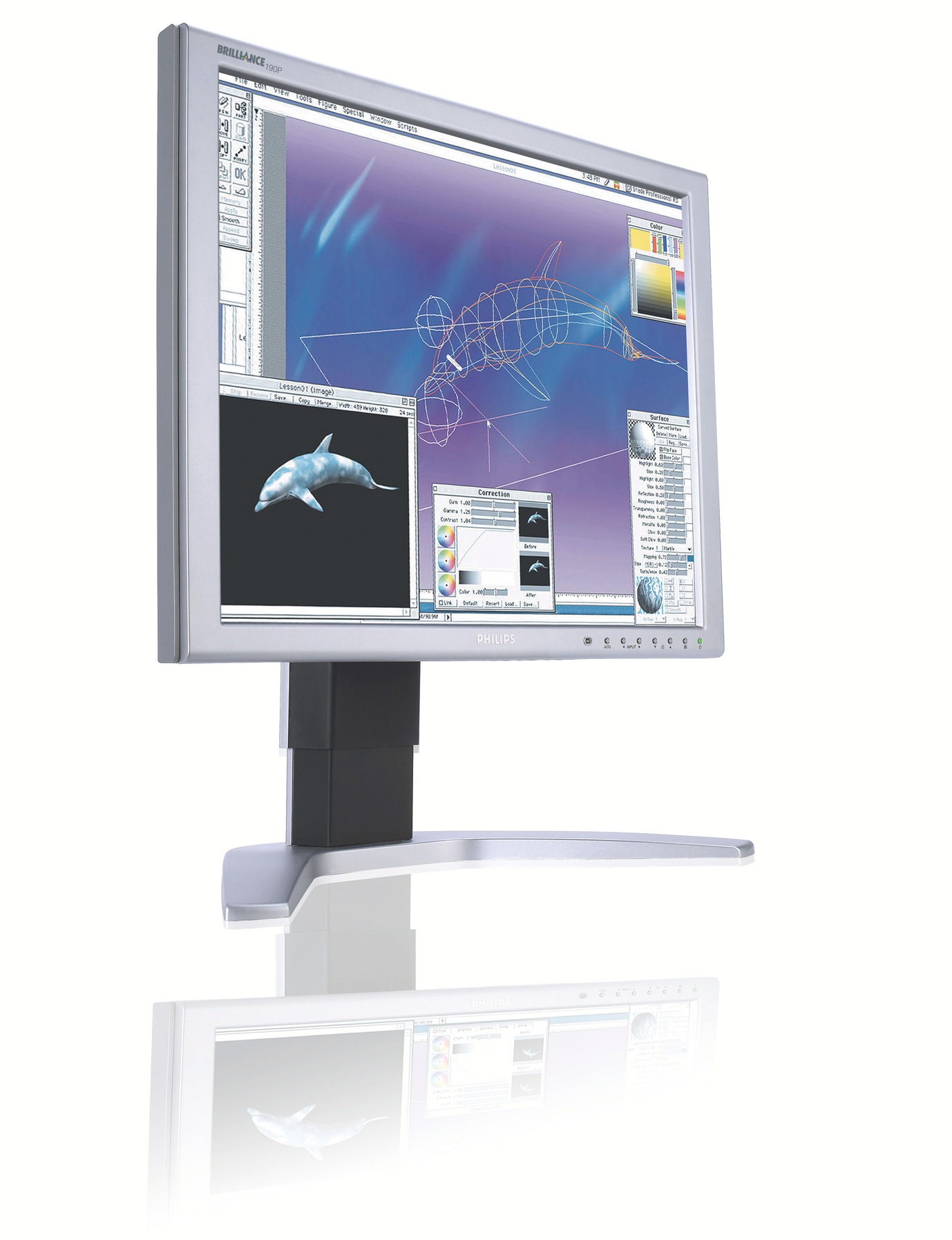

Philips 190P7ES 19" SXGA LCD monitor
Philips

190P7ES 19" SXGA LCD monitor

Model 190P7ES/01

73 specifications Checked today
  • Display48.3 cm (19")
  • Resolution1280 x 1024 pixels
  • ColourSilver
  • USB hub version2.0
  • Panel mounting interface100 x 100 mm
  • Power consumption (standby)1 W
See all specifications

Overview

Display
48.3 cm (19")
Resolution
1280 x 1024 pixels
Colour
Silver
USB hub version
2.0
Panel mounting interface
100 x 100 mm
Power consumption (standby)
1 W
Brand
Philips
Category
Monitor
Model
190P7ES/01
Part number
190P7ES/01
Also known as
Philips 190P7ES 19" SXGA LCD monitor

Specifications

73 specifications in 10 groups

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
TouchscreenNo
Display brightness (typical)250 cd/m²
Response time8 ms
Contrast ratio (typical)800:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.294 x 0.294 mm
Horizontal scan range30 - 83 kHz
Vertical scan range56 - 76 Hz
Viewable size diagonal48 cm
Digital horizontal frequency30 - 83 kHz
Digital vertical frequency56 - 76 Hz
Colour gamut standardsRGB
Pixel frequency140 MHz
Display panel size19"/ 48 cm
Video input impedance75 Ω
Video input signal levels0.7 Vpp
White Chromaticity, 6500Kx = 0.313 / y = 0.329
White Chromaticity, 9300Kx = 0.283 / y = 0.297

Design

Product colourSilver

Ports & interfaces

USB hub version2.0
USB Type-A downstream ports quantity2
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Audio inputNo
Audio outputNo

Ergonomics

Panel mounting interface100 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Adjustable height (max)13 cm
Swivel angle range45 - 45°
Tilt angle range-5 - 25°

Power

Power consumption (standby)1 W
Power consumption (off)1 W

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)429.6 mm
Depth (with stand)215.3 mm
Height (with stand)414 mm
Weight (with stand)8.2 kg
Width (without stand)429.6 mm
Depth (without stand)66.6 mm
Height (without stand)347 mm

Packaging data

Package dimensions (WxDxH)510 x 276 x 511 mm
Package width510 mm
Package depth248 mm
Package height511 mm
Package weight10 kg

Packaging content

ManualYes

Other features

Display viewable area (HxV)376.3 x 301.1 mm
Effective viewing area376.3 x 301.1 mm
Height adjustment range (imperial)5.1
Monitor sync input signalComposite Sync Separate Sync Sync on Green
Power requirementsBuilt-in 100-240VAC, 50/60Hz
Signal input2 x DVI-I
Sync input impedance2200 Ω
Special featuresSmartBright SmartManage
Compliance industry standardsEnergy Star
CertificationCE Mark EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo
Additional accessoriesAC Power Cord DVI-D cable USB cable VGA cable
Box depth (imperial)24.9 cm (9.8")
Box height (imperial)51 cm (20.1")
Convenience enhancementsKensington lock compatible On-screen Display SmartBright SmartManage enabled
Set depth (inch)6.6 cm (2.6")
Set depth (with stand) (inch)21.6 cm (8.5")
Set height (inch)34.8 cm (13.7")
Set height (with stand) (inch)41.4 cm (16.3")
User controlsAuto Brightness Control (Up/Down) Left/Right Menu (OK) Input Power On/Off
Supplied AC adapter typeLCD, 1280 x 1024, 1280 x 1024 @ 60Hz (digital input)
