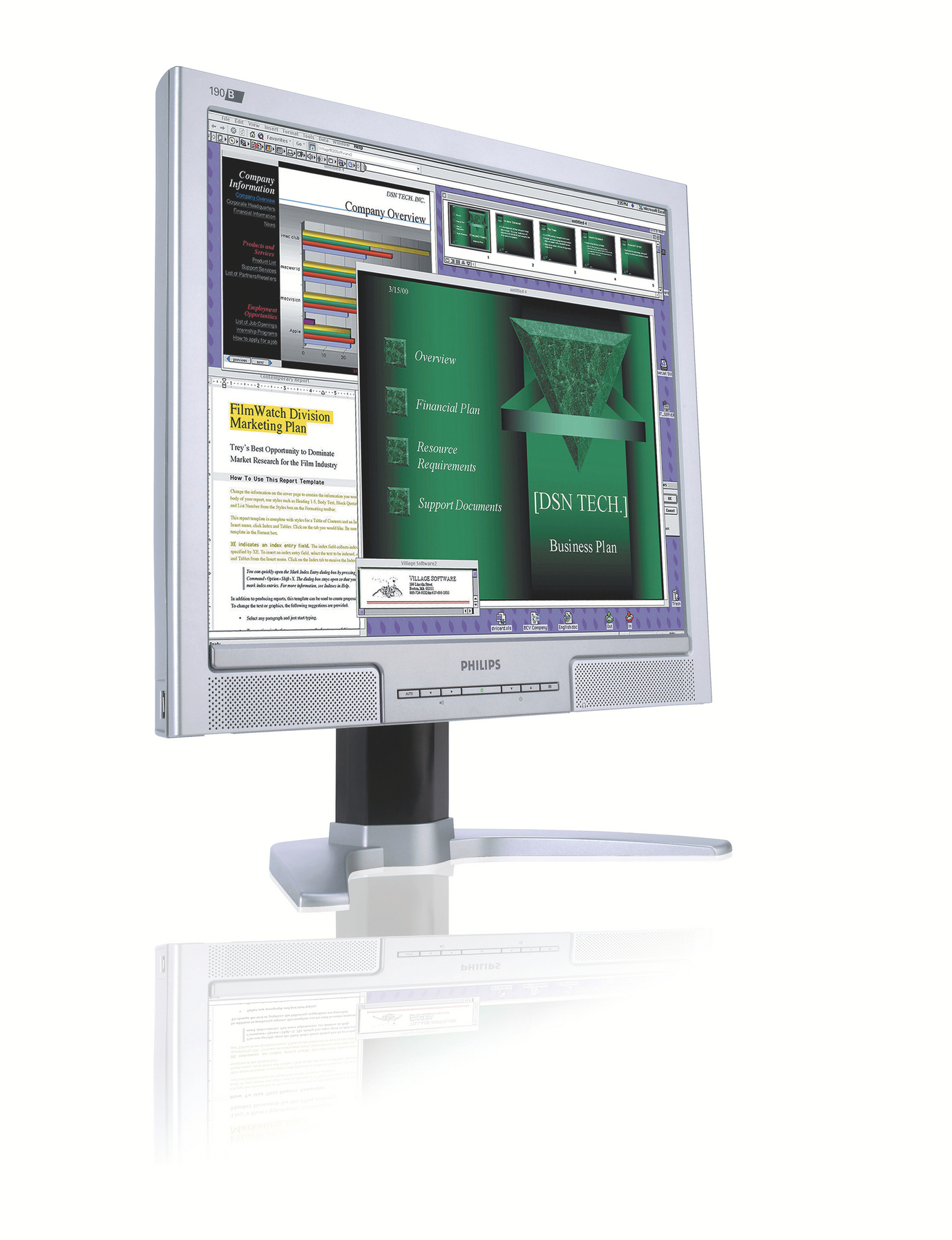

Philips 190B7CS 19" SXGA LCD monitor

190B7CS 19" SXGA LCD monitor

Model 190B7CS/96EAN 8712581306755

75 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ColourBlack, Silver
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)40 W

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Colour: Black, Silver
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 40 W

Brand: Philips
Category: Monitor
Model: 190B7CS/96
Part number: 190B7CS/96
EAN / UPC: 8712581306755
Also known as: Philips 190B7CS 19" SXGA LCD monitor

Specifications

75 specifications in 14 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Display surface	Matt
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	700:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
Viewable size diagonal	48 cm
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Performance

Specification	Value
Windows operating systems supported	Windows 2000, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Product colour	Black, Silver

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Headphone outputs	1
PC Audio in	Yes
HDCP	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	6 cm
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Italian
Number of OSD languages	6

Power

Specification	Value
Power consumption (typical)	40 W
Power consumption (standby)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	422 mm
Depth (with stand)	198.8 mm
Height (with stand)	405 mm
Weight (with stand)	6.14 kg
Width (without stand)	422 mm
Depth (without stand)	68.7 mm
Height (without stand)	374.2 mm

Packaging data

Specification	Value
Package width	503 mm
Package depth	198 mm
Package height	507 mm
Package weight	7.55 kg

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
Built-in subwoofer	No
TV tuner integrated	No
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
