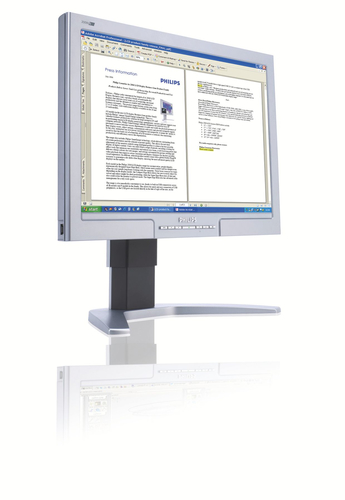

Philips 190B7CS 19" SXGA LCD monitor

Model 190B7CS/27

94 specifications Checked 4 days ago

Overview

94 specifications in 13 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Display technology	LCD
Touchscreen	No
HD type	SXGA
Display brightness (typical)	300 cd/m²
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	700:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Sync-on-green (SOG)	Yes
DDC/CI	Yes
Colour gamut standard	sRGB
3D	No
Pixel frequency	140 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Product colour	Silver
Feet colour	Black

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
Audio input	Yes
Headphone connectivity	3.5 mm

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	6 cm
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, English, Spanish, French, Portuguese
Number of OSD languages	5
Plug and Play	Yes
LED indicators	Operation, Stand-by

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Relative humidity	20 - 80%

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Manual	Yes

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	375.92 x 302.26 mm
Effective viewing area	375.92 x 302.26 mm
Height adjustment range (imperial)	2.4
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, EMC, Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
Dimensions (W x D x H) (imperial)	421.6 x 68.6 x 373.4 mm (16.6 x 2.7 x 14.7")
Box depth (imperial)	50.8 cm (20")
Box dimensions (W x D x H)	503 x 507 x 198 mm
Box height (imperial)	19.8 cm (7.8")
Set depth (inch)	6.86 cm (2.7")
Set depth (with stand) (inch)	19.8 cm (7.8")
Set height (inch)	37.3 cm (14.7")
Set height (with stand) (inch)	40.4 cm (15.9")
Weight (with stand) (imperial)	6.12 kg (13.5 lbs)
