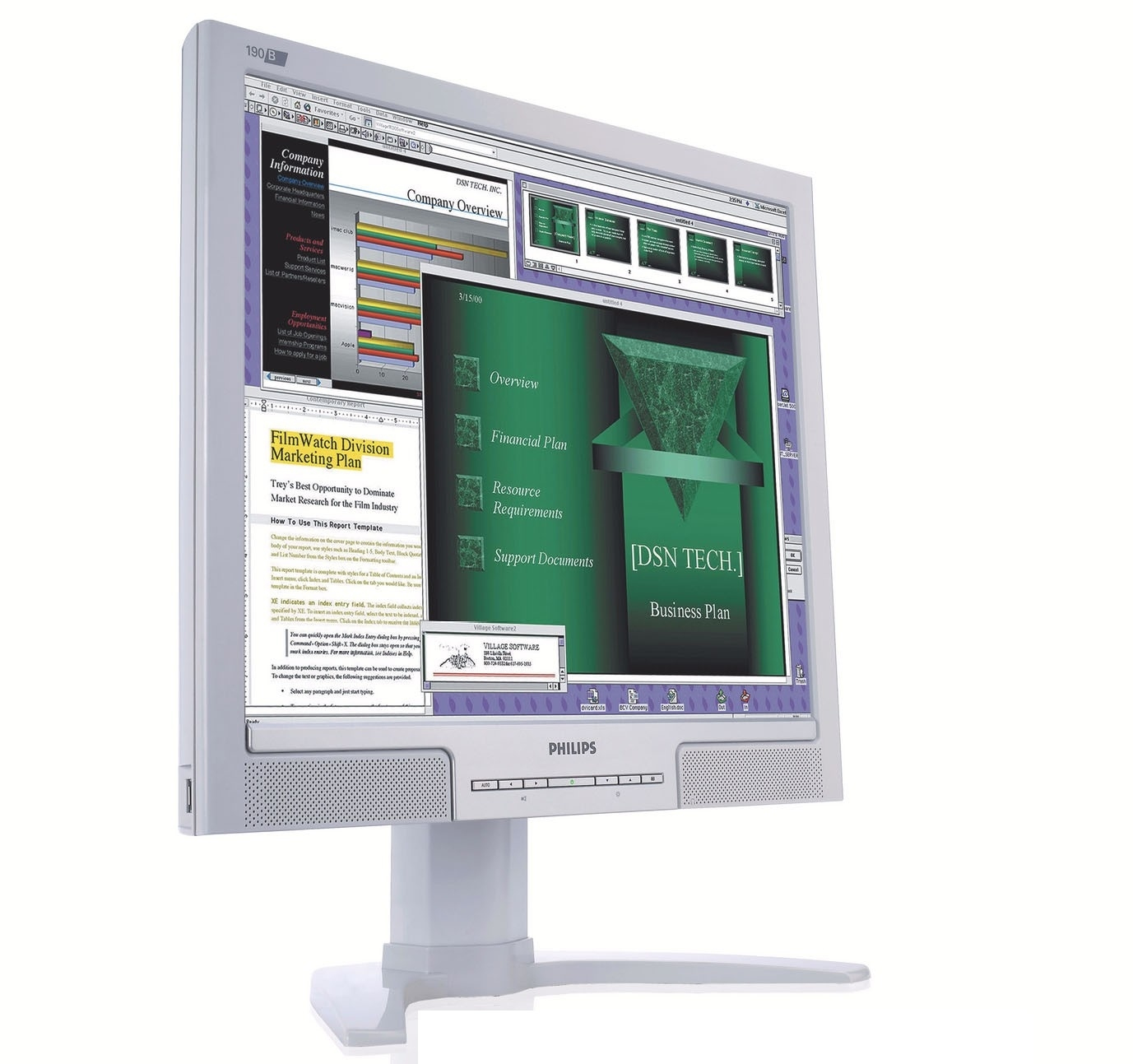

Philips LCD monitor 190B7CG/05

LCD monitor 190B7CG/05

Model 190B7CG/05EAN 8710895965910

78 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ColourSilver
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)40 W

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Colour: Silver
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 40 W

Brand: Philips
Category: Monitor
Model: 190B7CG/05
Part number: 190B7CG/05
EAN / UPC: 8710895965910
Also known as: Philips LCD monitor 190B7CG/05

Specifications

78 specifications in 13 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	4:3
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	4:3
Contrast ratio (typical)	700:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
3D	No
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
Audio input	Yes
Audio output	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	6 cm
Swivelling	Yes
Swivel angle range	60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	40 W
Power consumption (standby)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	422 mm
Depth (with stand)	198.8 mm
Height (with stand)	405 mm
Weight (with stand)	6.14 kg
Width (without stand)	422 mm
Depth (without stand)	68.7 mm
Height (without stand)	374.2 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	503 x 198 x 507 mm
Package width	503 mm
Package depth	507 mm
Package height	198 mm
Package weight	7.55 kg

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), USB, VGA
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Display viewable area (HxV)	376.3 x 301.1 mm
Power requirements	100-240V, 50/60Hz
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, EMC, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
Supplied AC adapter type	AC

Thin Client

Specification	Value
Thin client installed	No
