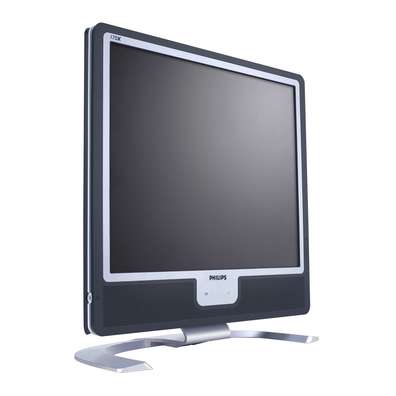

17IN LCD 170X5FB S B
Model 17IN LCD 170X5FB S BPart no. 170X5FB/20
28 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- I/O portsAnalogue (VGA), PC audio in
- Tilt angle range-5 - 25°
- Power consumption (typical)35 W
- Operating temperature (T-T)5 - 35 °C
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- I/O ports
- Analogue (VGA), PC audio in
- Tilt angle range
- -5 - 25°
- Power consumption (typical)
- 35 W
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Philips
- Category
- Monitor
- Model
- 17IN LCD 170X5FB S B
- Part number
- 170X5FB/20
- Also known as
- Philips 17IN LCD 170X5FB S B computer monitor 43.2 cm (17") 1280 x 1024 pixels
Specifications
28 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 260 cd/m² |
| Response time | 16 ms |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Pixel pitch | 0.264 |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Analogue (VGA), PC audio in |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 25° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 35 W |
| Power consumption (standby) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 388 mm |
| Depth (without stand) | 181 mm |
| Height (without stand) | 400 mm |
| Weight (without stand) | 5.5 kg |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington lock |
| Certification | CE Mark, E2000, FCC-B, UL, CSA, MPR-II, low emission, NUTEK, Energy Star, SEMKO, TÜV/GS, TÜV Ergo |
| Speakers and microphone | 2 W RMS x 2 stereo speakers |
