172B9TL computer monitor
43.2 cm (17") 1280 x 1024 pixels Full HD LCD Touchscreen Black
Model 172B9TL
107 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classD
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- D
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 172B9TL
- Part number
- 172B9TL
- Also known as
- Philips 172B9TL computer monitor 43.2 cm (17") 1280 x 1024 pixels Full HD LCD Touchscreen Black
Specifications
107 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | W-LED |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Response time | 1 ms |
| Screen shape | Flat |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Pixel density | 96 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Digital horizontal frequency | 30 - 85 kHz |
| Digital vertical frequency | 48 - 75 Hz |
| Display diagonal (metric) | 43.2 cm |
| DDC/CI | Yes |
| Haze rate | 5% |
| Surface hardness | 7H |
| Colour gamut standard | sRGB |
| Colour gamut | 87% |
| sRGB coverage (typical) | 103% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |

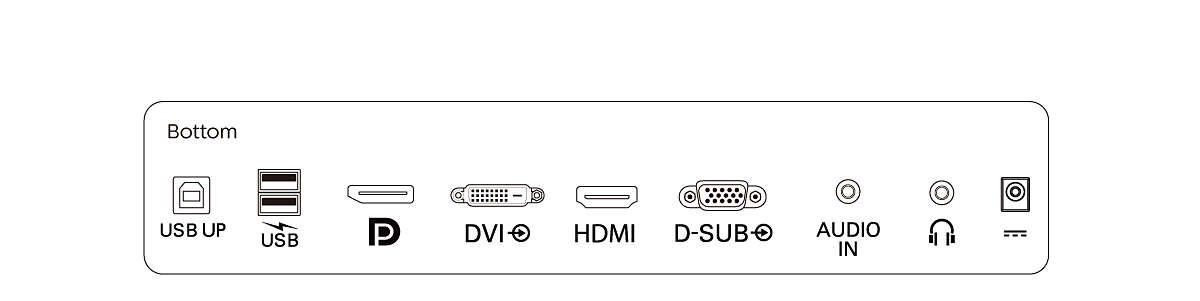

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1.4 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1.2 |
| DisplayPort version | 1.2 |
| Headphone out | Yes |
| PC Audio in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

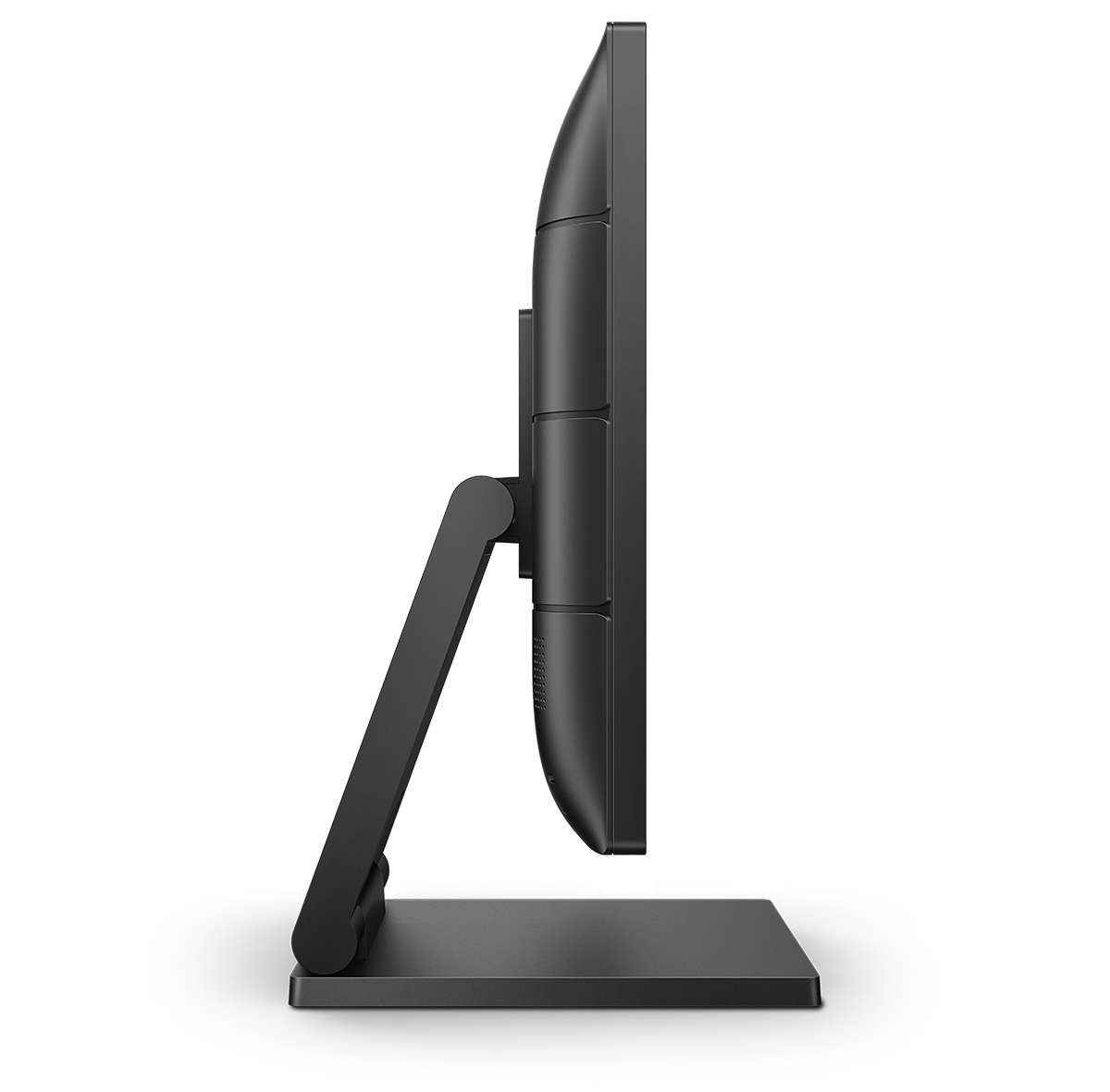

| Height adjustment | Yes |
| Adjustable height (max) | 7.6 cm |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Palm rejection area | 30 x 30 mm |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 9.14 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 7.7 W |
| AC input voltage | 100 - 240 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 376 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 399 mm |
| Weight (with stand) | 6.24 kg |
| Width (without stand) | 376 mm |
| Depth (without stand) | 45 mm |
| Height (without stand) | 322 mm |
| Weight (without stand) | 3.26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 420 mm |
| Package weight | 7.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Manual | Yes |
| Bundled software | SmartControl |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | PVC/BFR, Mercury |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compliance certificates | RoHS, WEEE |
| Heavy metals free | Hg (mercury) |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
