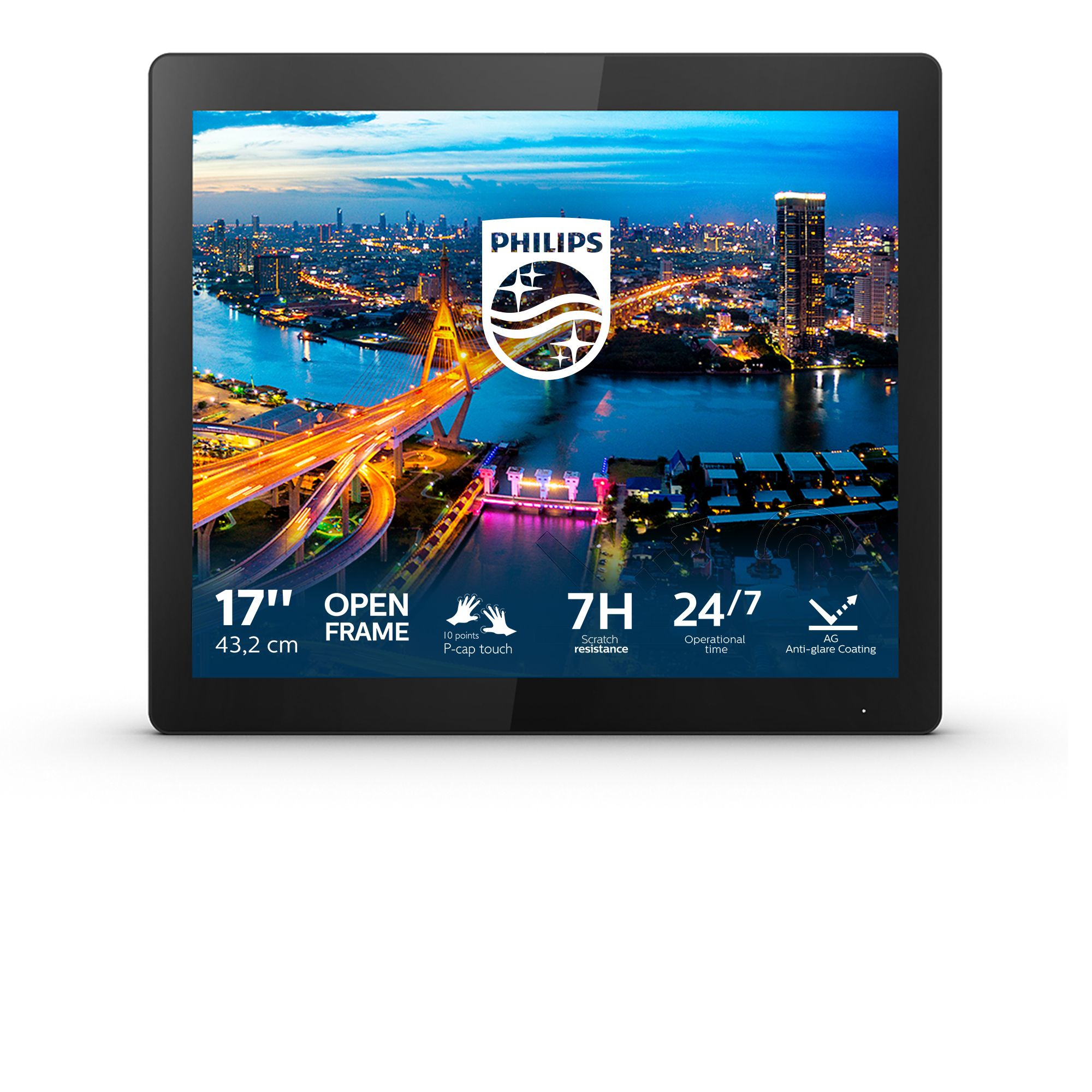

Philips B Line 172B1TFL/00 computer monitor
Philips

B Line 172B1TFL/00 computer monitor

43.2 cm (17") 1280 x 1024 pixels LED Touchscreen Black

Model 172B1TFL/00EAN 8712581772918

120 specifications Checked today
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • Energy classE
  • ColourBlack
  • NVIDIA G-SYNCNo
  • Built-in USB hubYes
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Energy class
E
Colour
Black
NVIDIA G-SYNC
No
Built-in USB hub
Yes
Brand
Philips
Category
Monitor
Model
172B1TFL/00
Part number
172B1TFL/00
EAN / UPC
8712581772918
Also known as
Philips B Line 172B1TFL/00 computer monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen Black

Specifications

120 specifications in 15 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
Native aspect ratio5:4
Display technologyLED
TouchscreenYes
Panel typeTN
LED backlightYes
Backlight typeW-LED
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (typical)400 cd/m²
Display brightness400 cd/m²
Response time4 ms
Screen shapeFlat
Aspect ratio5:4
Contrast ratio (typical)1000:1
Contrast ratio (dynamic)50000000:1
Dynamic contrast ratio marketing nameSmartContrast
Maximum refresh rate75 Hz
Viewing angle, horizontal160°
Viewing angle, vertical140°
Display number of colours16.7 million colours
Pixel pitch0.264 x 0.264 mm
Pixel density96 ppi
Horizontal scan range30 - 83 kHz
Vertical scan range50 - 75 Hz
Viewable size, horizontal33.8 cm
Viewable size, vertical27 cm
Display diagonal (metric)43.2 cm
DDC/CIYes
Haze rate5%
Surface hardness7H
Colour gamut standardsRGB, NTSC
Colour gamut90%
NTSC coverage (typical)90%
Display sRGBYes
Display panel size17 inch/43.2 cm

Performance

NVIDIA G-SYNCNo
AMD FreeSyncNo
Component video syncSeparate Sync, Sync-on-green (SOG)
Flicker-free technologyYes
Low Blue Light technologyYes
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Other operating systems supportedAndroid
Palm rejectionYes

Multimedia

Built-in speaker(s)No
Built-in cameraNo

Design

Product colourBlack
Front bezel colourBlack

Ports & interfaces

Built-in USB hubYes
Number of upstream ports1
USB Type-A downstream ports quantity2
USB Touch portYes
VGA (D-Sub) ports quantity1
DVI portYes
DVI-D ports quantity1
HDMIYes
HDMI ports quantity1.4
HDMI version1.4
DisplayPorts quantity1.2
DisplayPort version1.2
Audio outputYes
I/O portsUSB 3.2 x 1 (Upstream), USB 3.2 x 2 (Downstream with 1 fast charge B.C 1.2), mini USB x 1

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100 mm
Wall mountableYes
Cable lock slotYes
Cable lock slot typeKensington
Height adjustmentNo
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesPortuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages21
Palm rejection area30 x 30 mm
Plug and PlayYes
LED indicatorsOperation, Stand-by

Power

Energy efficiency class (SDR)E
Power consumption (typical)12.1 W
Power consumption (standby)0.4 W
Power consumption (off)0.3 W
Power consumption (PowerSave)7.9 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power supply typeExternal

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Operating altitude0 - 3658 m
Non-operating altitude0 - 12192 m

Weight & dimensions

Width (without stand)383 mm
Depth (without stand)49 mm
Height (without stand)329 mm
Weight (without stand)4.3 kg

Packaging data

Package width465 mm
Package depth123 mm
Package height384 mm
Package weight5.83 kg

Packaging content

Cables includedHDMI, DisplayPort, USB Type-A to USB Type-B, AC
ManualYes
Bundled softwareSmartControl

Sustainability

Doesn't containMercury, PVC/BFR

Other features

International Protection (IP) codeIP65
Compatible operating systemsWindows 10 / 8.1 / 8 / 7
Exterior finish typeTextured
Compliance certificatesRoHS
Display viewable area (HxV)339.72 x 270.336 mm
EasyRead modeYes
Energy efficiency class (legacy scale)E
Heavy metals freeHg (mercury)
LowBlue modeYes
Monitor sync input signalSeparate Sync; Sync on Green
Signal inputVGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4
Mean time between failures (MTBF)70000 h
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Picture enhancementSmartImage
Regulatory ApprovalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
Touch methodStylus, Finger, Glove*
User controlsSmartImage; Input; Brightness; Menu; Power On/Off

Recycling data

Packaging recyclability rate100%

Logistics data

Harmonized System (HS) code85285210
