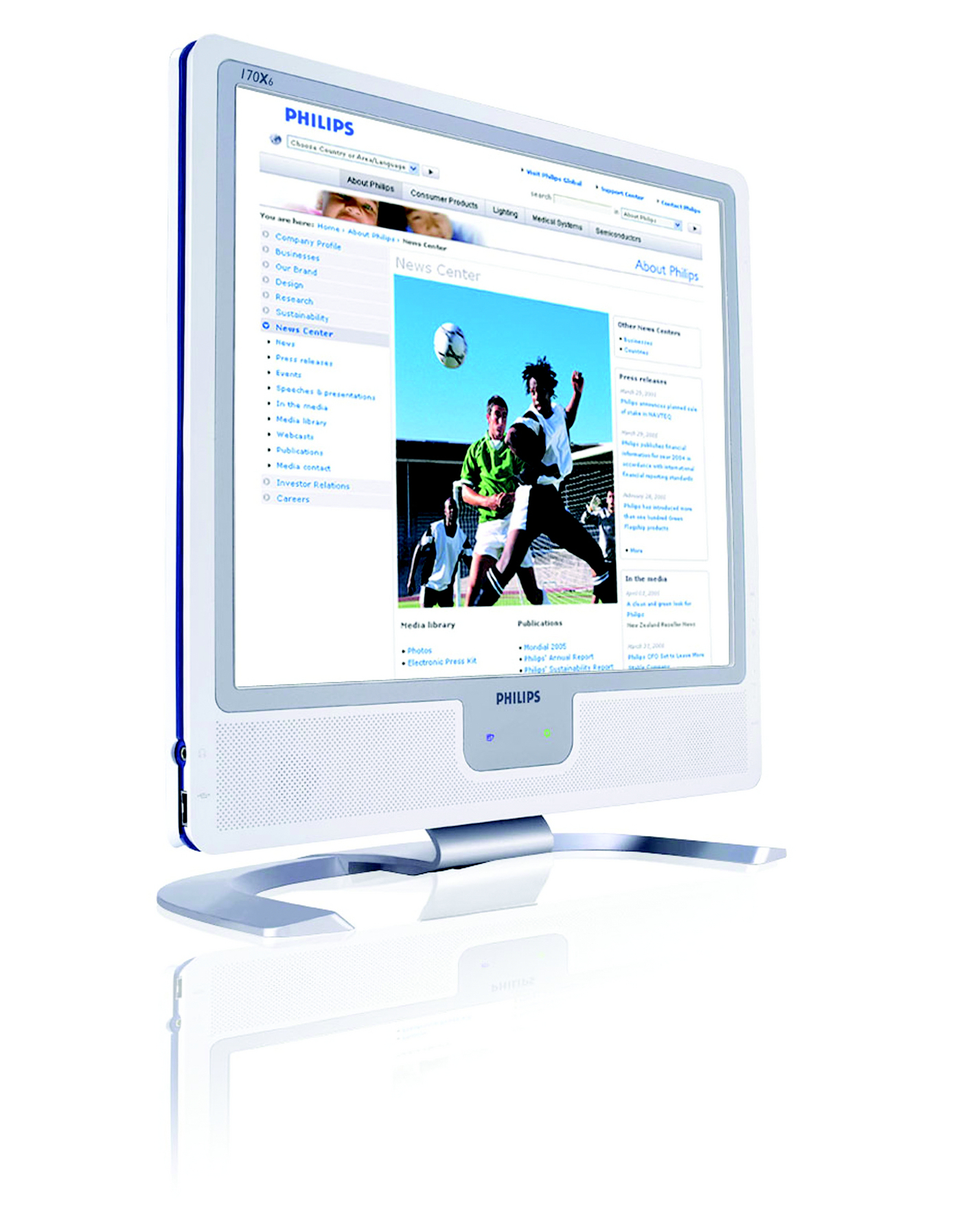

170X6FW 17" SXGA LCD monitor
Model 170X6FWPart no. 170X6FW/00
66 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourWhite
- Built-in speaker(s)Yes
- USB version2.0
- Power consumption (typical)38 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- White
- Built-in speaker(s)
- Yes
- USB version
- 2.0
- Power consumption (typical)
- 38 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170X6FW
- Part number
- 170X6FW/00
- Also known as
- Philips 170X6FW 17" SXGA LCD monitor
Specifications
66 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 8 ms |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 600:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB version | 2.0 |
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| Audio input | Yes |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 38 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 388 mm |
| Depth (without stand) | 181 mm |
| Height (without stand) | 400 mm |
| Weight (without stand) | 5.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark E2000 EMC Energy Star FCC-B UL CSA MPR-II Low Emission SEMKO TÜV-Ergo |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
