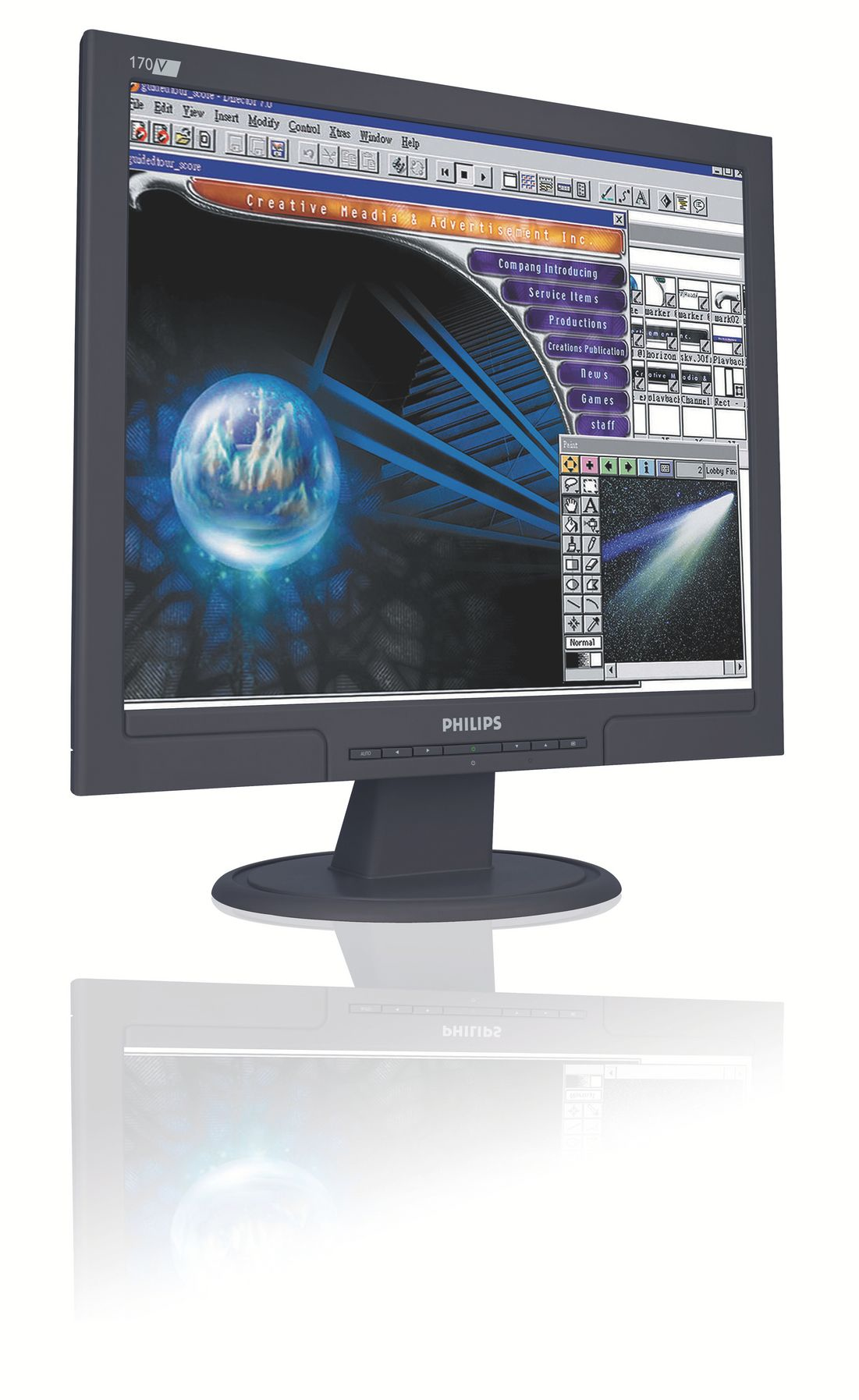

170V7FB 17" SXGA LCD monitor
Model 170V7FB/00EAN 8710895968140
63 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (off)1 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (off)
- 1 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170V7FB/00
- Part number
- 170V7FB/00
- EAN / UPC
- 8710895968140
- Also known as
- Philips 170V7FB 17" SXGA LCD monitor
Specifications
63 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 270 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 145° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Colour gamut standard | sRGB |
| Pixel frequency | 140 MHz |
| Display panel size | 17"/ 43 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 387 mm |
| Weight (with stand) | 4.7 kg |
| Width (without stand) | 380 mm |
| Depth (without stand) | 57.5 mm |
| Height (without stand) | 327 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 449 x 182 x 489 mm |
| Package width | 449 mm |
| Package depth | 489 mm |
| Package height | 182 mm |
| Package weight | 6.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | VGA |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 337.9 x 270.3 mm |
| Effective viewing area | 337.9 x 270.3 mm |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 100-240VAC, 50/60Hz, 100-240VAC, 50/60Hz |
| Signal input | Analog (VGA) |
| Sync input impedance | 2200 Ω |
| Compliance industry standards | Energy Star |
| Certification | CE Mark EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo |
| Additional accessories | AC Power Cord VGA cable |
| Box depth (imperial) | 49 cm (19.3") |
| Box height (imperial) | 18.3 cm (7.2") |
| Convenience enhancements | Kensington lock compatible FlexiHolder On-screen Display |
| Set depth (inch) | 5.84 cm (2.3") |
| Set depth (with stand) (inch) | 20.1 cm (7.9") |
| Set height (inch) | 32.8 cm (12.9") |
| Set height (with stand) (inch) | 38.6 cm (15.2") |
| User controls | Auto Brightness Control (Up/Down) Left/Right Menu (OK) Power On/Off |
| Supplied AC adapter type | LCD, 1280 x 1024, 1280 x 1024 @ 60 Hz (analog input), Super Ergo Base |
