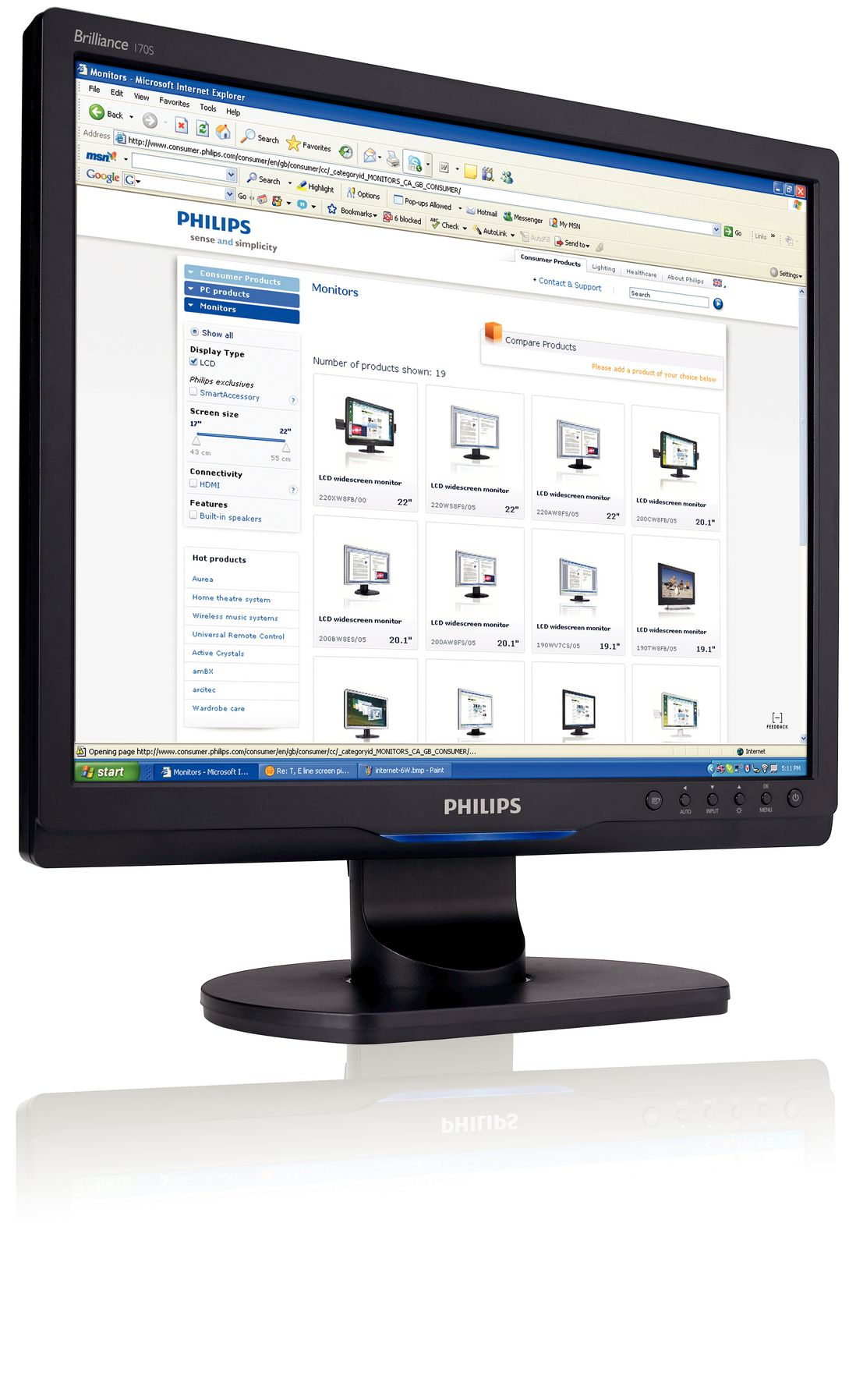

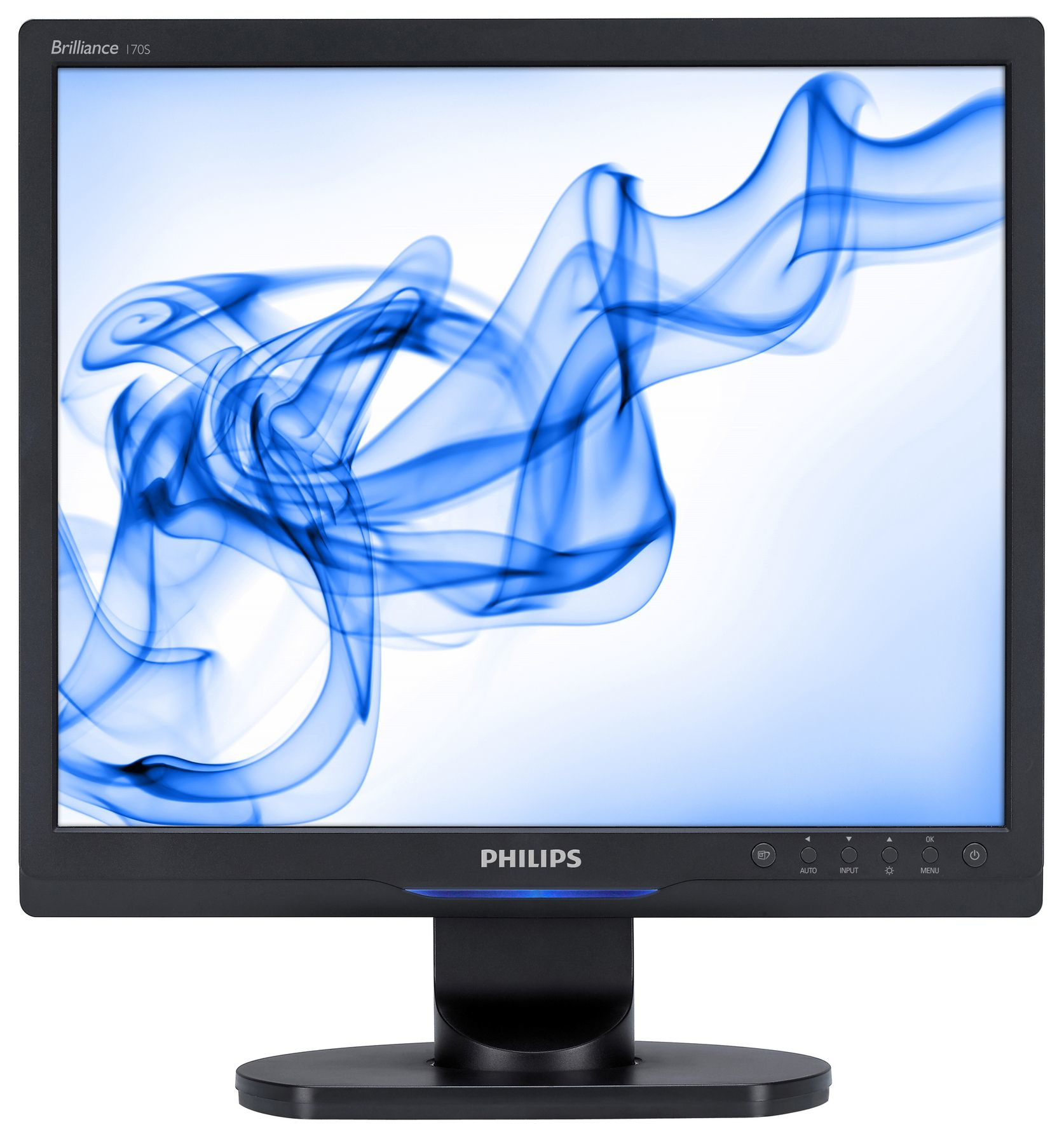

Philips Brilliance 170S9FB
Philips

Brilliance 170S9FB

17" SXGA LCD monitor

Model 170S9FB/93EAN 8712581429690

80 specifications Checked today
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • ColourBlack
  • Windows operating systems supportedYes
  • Built-in speaker(s)No
  • Power consumption (typical)33 W
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Colour
Black
Windows operating systems supported
Yes
Built-in speaker(s)
No
Power consumption (typical)
33 W
Brand
Philips
Category
Monitor
Model
170S9FB/93
Part number
170S9FB/93
EAN / UPC
8712581429690
Also known as
Philips Brilliance 170S9FB 17" SXGA LCD monitor

Specifications

80 specifications in 12 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
Display technologyLCD
TouchscreenNo
Panel typeTFT
Display brightness (typical)300 cd/m²
Response time5 ms
Screen shapeFlat
Supported graphics resolutions1280 x 1024 (SXGA)
Contrast ratio (typical)800:1
Contrast ratio (dynamic)8000:1
Dynamic contrast ratio marketing nameSmartContrast
Viewing angle, horizontal176°
Viewing angle, vertical170°
Display number of colours16.78 million colours
Pixel pitch0.264 x 0.264 mm
Horizontal scan range30 - 83 kHz
Vertical scan range56 - 76 Hz
Sync-on-green (SOG)Yes
DDC/CIYes
Colour gamut standardsRGB
3DNo
Separate H/V syncYes

Performance

Windows operating systems supportedYes
Mac operating systems supportedYes

Multimedia

Built-in speaker(s)No
Built-in cameraNo

Design

Product colourBlack
Feet colourBlack

Ports & interfaces

Built-in USB hubNo
VGA (D-Sub) ports quantity1
DVI portYes
DVI-D ports quantity1
HDMI ports quantity0
HDCPYes

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100 mm
Cable lock slotYes
Cable lock slot typeKensington
Tilt adjustmentYes
Tilt angle range-5 - 20°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, Dutch, English, Spanish, French, Italian, Portuguese, Russian
Number of OSD languages8
Plug and PlayYes
LED indicatorsOperation, Stand-by

Power

Power consumption (typical)33 W
Power consumption (off)0.8 W
Power consumption (PowerSave)26 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)367 mm
Depth (with stand)179 mm
Height (with stand)389 mm
Weight (with stand)3.45 kg
Width (without stand)367 mm
Depth (without stand)60 mm
Height (without stand)322 mm
Weight (without stand)3.45 kg

Packaging data

Package width423 mm
Package depth160 mm
Package height450 mm
Package weight4.66 kg

Sustainability

Sustainability certificatesENERGY STAR

Other features

On/off switchYes
TV tuner integratedNo
Power consumption (economy mode)26 W
Mean time between failures (MTBF)50000 h
CertificationCE Mark, Energy Star, FCC Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL
Box depth (imperial)15.9 cm (6.28")
Box height (imperial)45 cm (17.7")
Set depth (inch)6.02 cm (2.37")
Set depth (with stand) (inch)17.9 cm (7.05")
Set height (inch)32.3 cm (12.7")
Set height (with stand) (inch)38.9 cm (15.3")
Weight (with stand) (imperial)3.45 kg (7.61 lbs)
