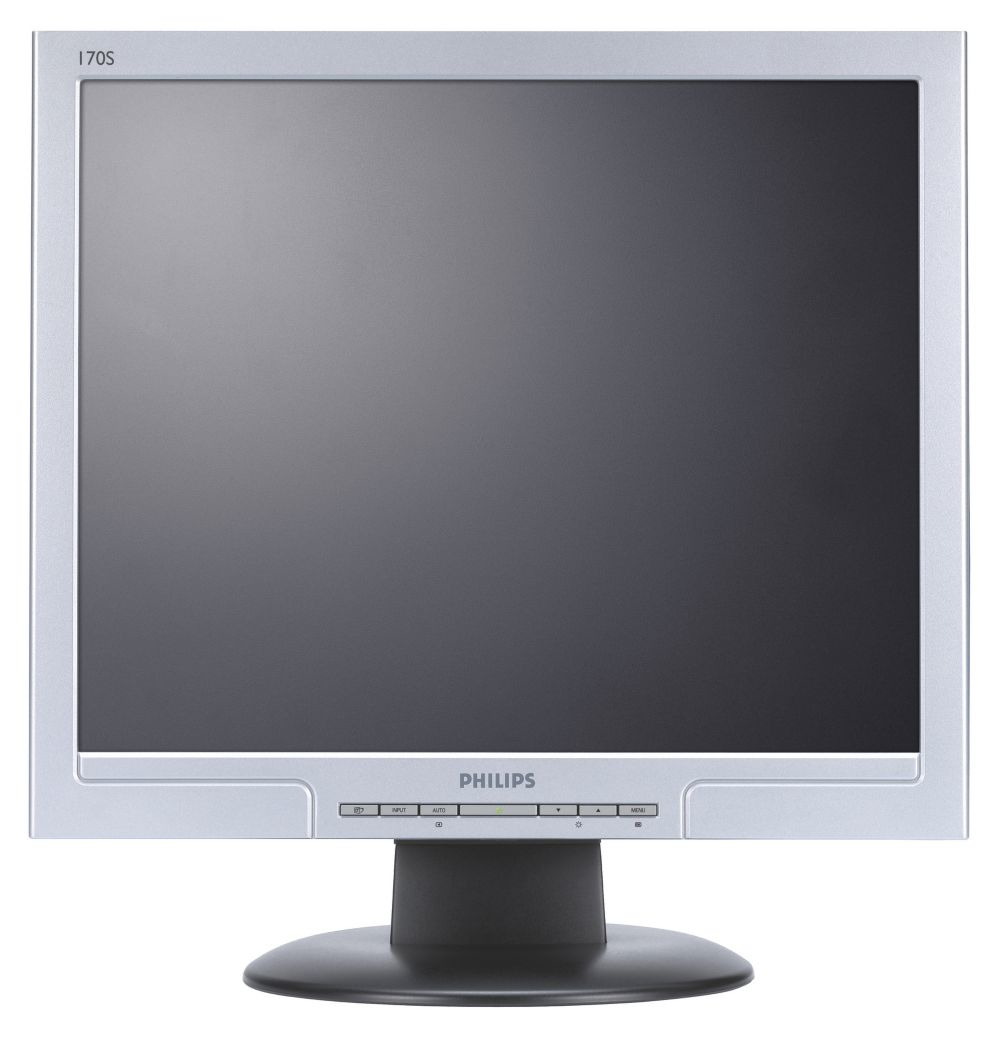

Philips LCD monitor 170S8FS/05

LCD monitor 170S8FS/05

Model 170S8FS/05EAN 8712581393922

46 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourSilver
VGA (D-Sub) ports quantity1
Panel mounting interface100 x 100 mm
Power consumption (typical)33 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: Silver
VGA (D-Sub) ports quantity: 1
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 33 W

Brand: Philips
Category: Monitor
Model: 170S8FS/05
Part number: 170S8FS/05
EAN / UPC: 8712581393922
Also known as: Philips LCD monitor 170S8FS/05

Specifications

46 specifications in 10 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176°
Viewing angle, vertical	170°
Pixel pitch	0.264 x 0.264 mm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	56 - 75 Hz
Sync-on-green (SOG)	Yes
Colour gamut standard	sRGB
Pixel frequency	140 MHz
Separate H/V sync	Yes
Composite sync	Yes
Video input impedance	75 Ω
White Chromaticity, 6500K	x = 0.313 / y = 0.329
White Chromaticity, 9300K	x = 0.283 / y = 0.297

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Plug and Play	Yes
LED indicators	Stand-by

Power

Specification	Value
Power consumption (typical)	33 W
Power consumption (off)	1 W
Power consumption (PowerSave)	27 W

Weight & dimensions

Specification	Value
Width (with stand)	379.3 mm
Depth (with stand)	210.8 mm
Height (with stand)	387.1 mm
Weight (with stand)	4.6 kg
Width (without stand)	379.3 mm
Depth (without stand)	57.5 mm
Height (without stand)	327.1 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	451 x 159 x 391 mm
Package weight	5.88 kg

Packaging content

Specification	Value
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
Display viewable area (HxV)	337.9 x 270.3 mm
Power requirements	100-240VAC, 50/60Hz
Sync input impedance	2200 Ω
Mean time between failures (MTBF)	50000 h
Certification	CE Mark, EMC, FCC-B, UL, CSA, SEMKO, TUV/GS, TUV Ergo, TCO '03
