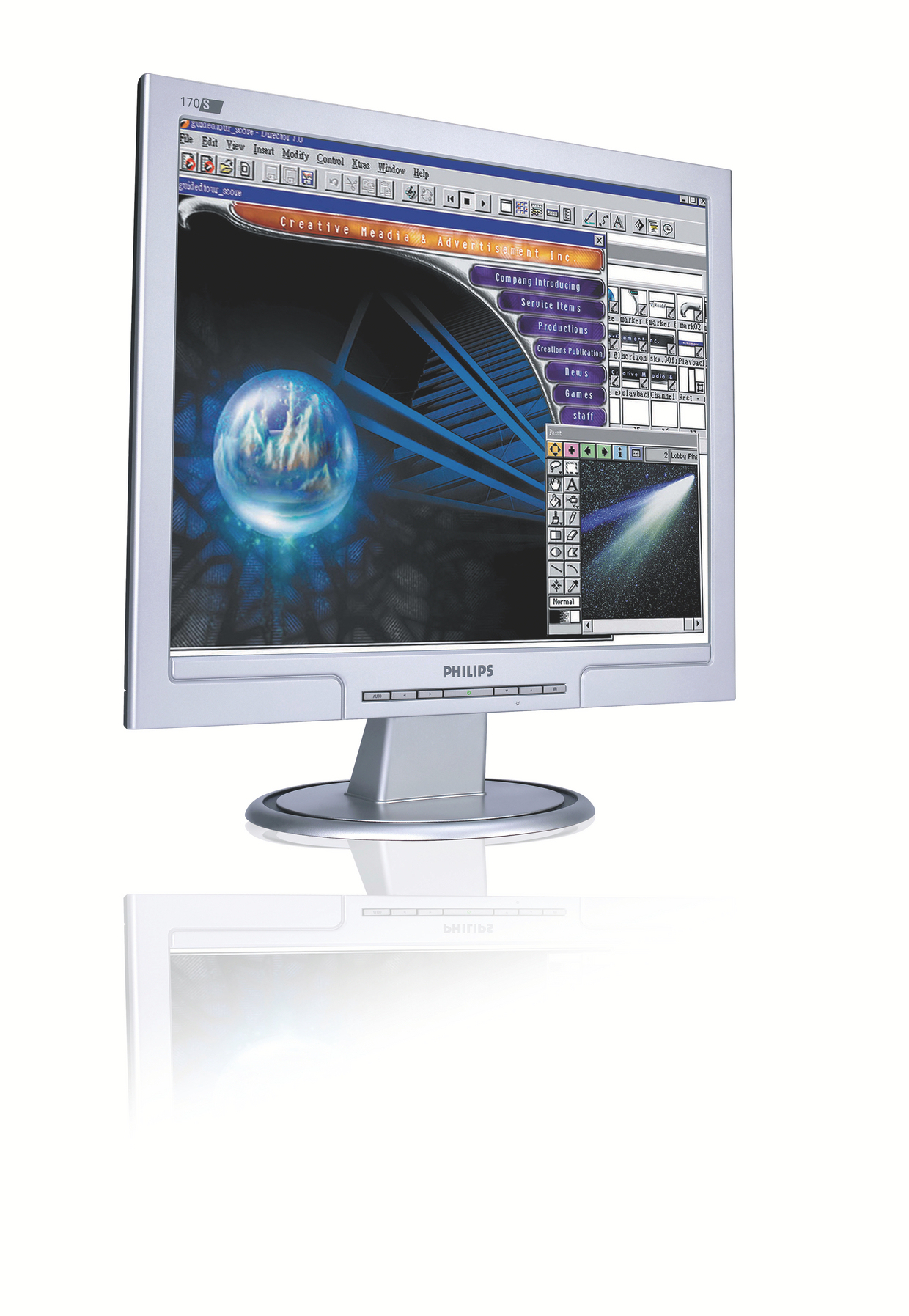

LCD monitor 170S7FS/75
Model 170S7FS/75EAN 8710895962551
66 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
- VESA mountingYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- VESA mounting
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 170S7FS/75
- Part number
- 170S7FS/75
- EAN / UPC
- 8710895962551
- Also known as
- Philips LCD monitor 170S7FS/75
Specifications
66 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 387 mm |
| Weight (with stand) | 4.7 kg |
| Width (without stand) | 380 mm |
| Depth (without stand) | 57.5 mm |
| Height (without stand) | 327 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 449 mm |
| Package depth | 489 mm |
| Package height | 182 mm |
| Package weight | 6.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark, EMC Energy Star FCC-B UL CSA SEMKO TCO '03 TÜV/GS TÜV Ergo |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
