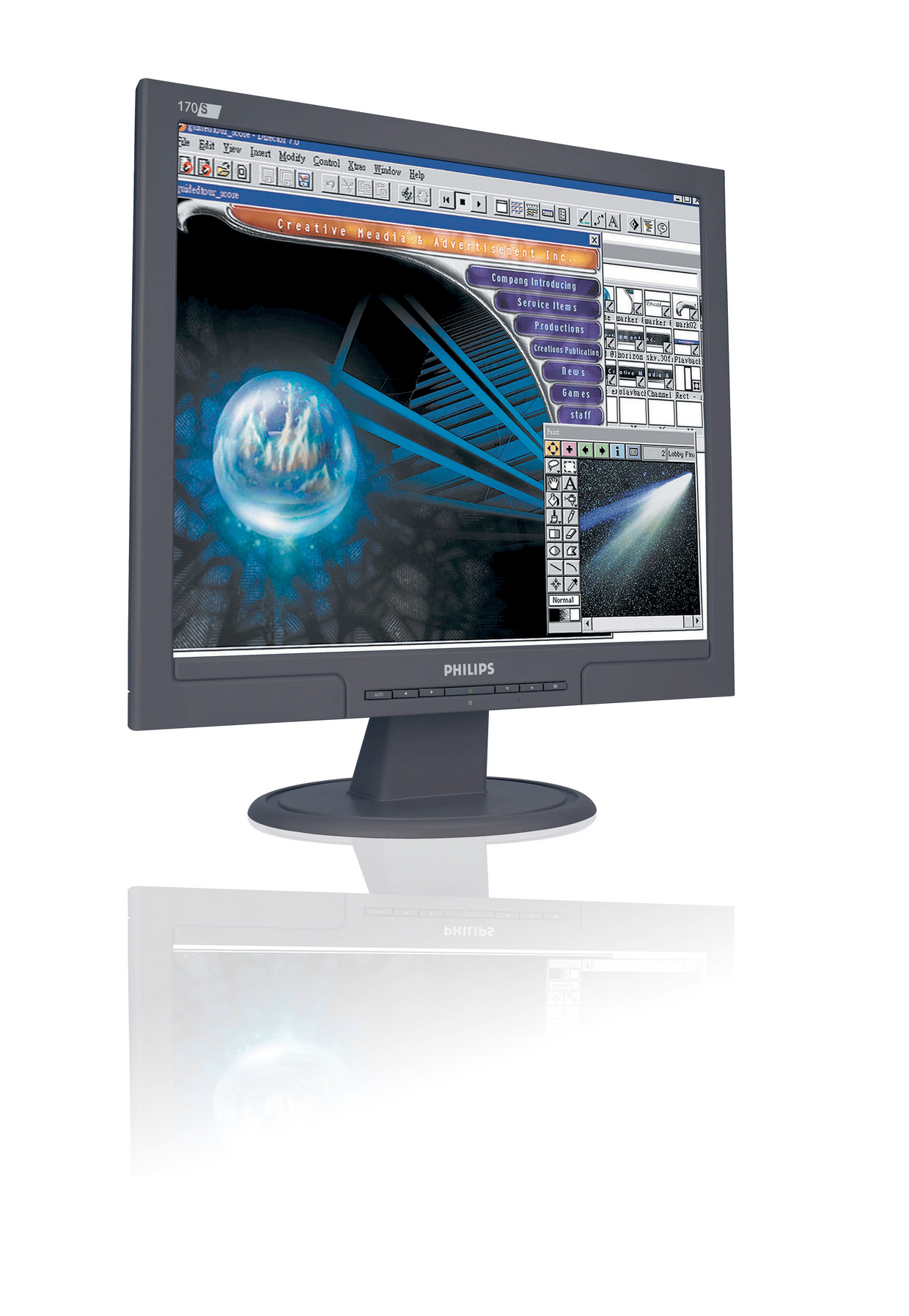

170S7FB 17" SXGA LCD monitor
Model 170S7FB/69
74 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
- VESA mountingYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- VESA mounting
- Yes
- Brand
- Philips
- Category
- Monitor
- Model
- 170S7FB/69
- Part number
- 170S7FB/69
- Also known as
- Philips 170S7FB 17" SXGA LCD monitor
Specifications
74 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| 3D | No |
| Pixel frequency | 140 MHz |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| Video input impedance | 75 Ω |
Performance
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 387 mm |
| Weight (with stand) | 4.7 kg |
| Width (without stand) | 380 mm |
| Depth (without stand) | 57.5 mm |
| Height (without stand) | 327 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 449 mm |
| Package depth | 489 mm |
| Package height | 182 mm |
| Package weight | 6.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Effective viewing area | 337.9 x 270.3 mm |
| Sync input impedance | 2200 Ω |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE Mark, EMC Energy Star FCC-B UL CSA SEMKO TCO '03 TÜV/GS TÜV Ergo |
| Dimensions (W x D x H) (imperial) | 381 x 58.4 x 327.7 mm (15 x 2.3 x 12.9") |
| Box dimensions (W x D x H) | 449 x 489 x 182 mm |
| Weight (with stand) (imperial) | 4.72 kg (10.4 lbs) |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
