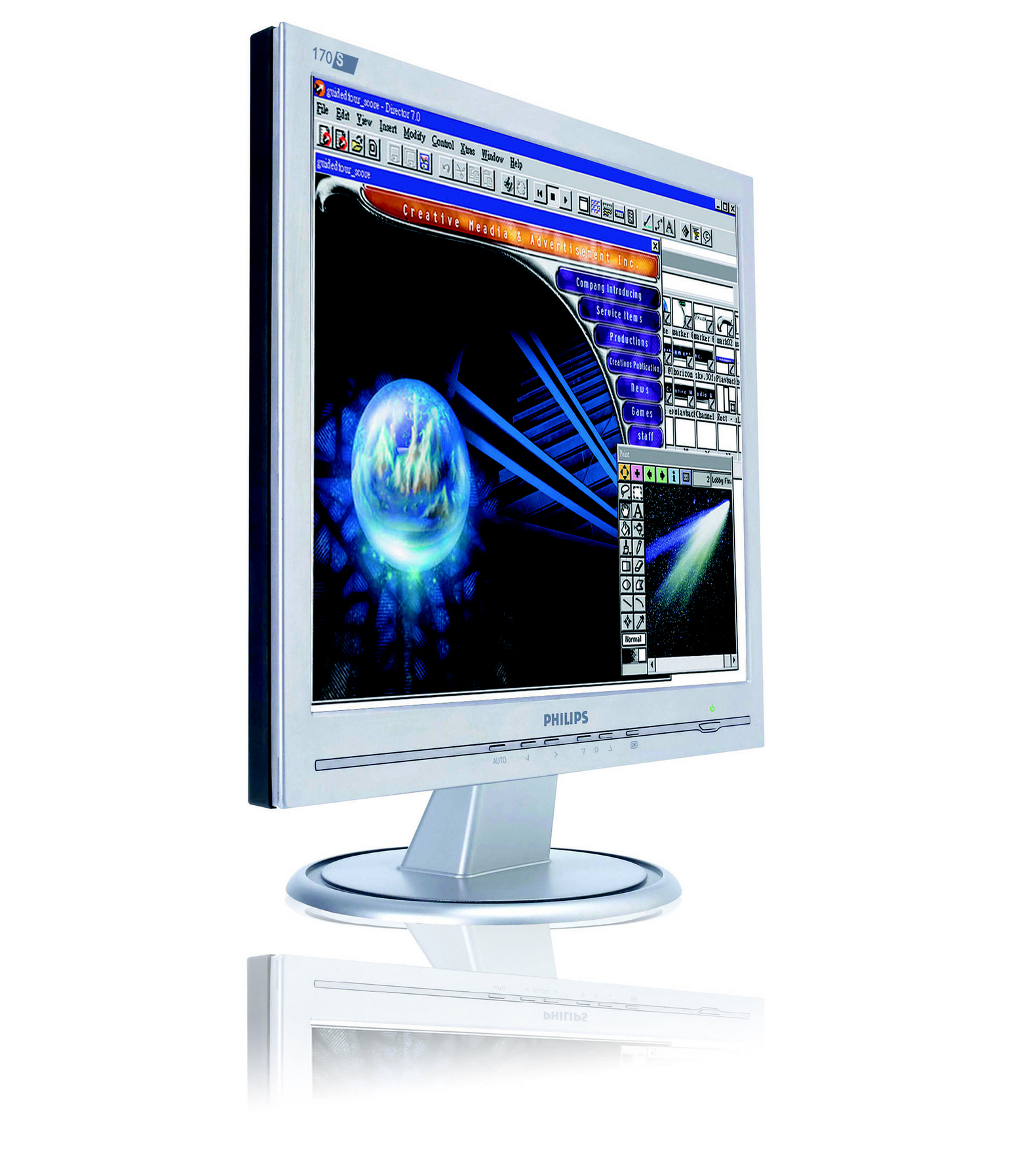

Philips 170S6FS 17" SXGA LCD monitor

Philips 170S6FS 17" SXGA LCD monitor

Model 170S6FS/00EAN 8710895889759

52 specifications Checked 2 days ago
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • ColourSilver
  • I/O portsAnalog (VGA)
  • Panel mounting interface100 x 100 mm
  • Power consumption (standby)1 W
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Colour
Silver
I/O ports
Analog (VGA)
Panel mounting interface
100 x 100 mm
Power consumption (standby)
1 W
Brand
Philips
Category
Monitor
Model
170S6FS/00
Part number
170S6FS/00
EAN / UPC
8710895889759
Also known as
Philips 170S6FS 17" SXGA LCD monitor

Specifications

52 specifications in 9 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
TouchscreenNo
Display brightness (typical)250 cd/m²
Response time12 ms
Contrast ratio (typical)500:1
Viewing angle, horizontal160°
Viewing angle, vertical155°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range30 - 83 kHz
Vertical scan range56 - 76 Hz
Digital horizontal frequency30 - 83 kHz
Digital vertical frequency56 - 76 Hz
Colour gamut standardsRGB
Pixel frequency140 MHz
Display panel size17"/ 43 cm
White Chromaticity, 6500Kx = 0.313 / y = 0.329
White Chromaticity, 9300Kx = 0.283 / y = 0.297

Design

Product colourSilver

Ports & interfaces

I/O portsAnalog (VGA)

Ergonomics

Panel mounting interface100 x 100 mm
Tilt angle range-5 - 25°
ErgonomicsTÜV/GS, TÜV Ergo

Power

Power consumption (standby)1 W
Power consumption (off)1 W

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Relative humidity20 - 80%

Weight & dimensions

Width (with stand)375 mm
Depth (with stand)200 mm
Height (with stand)390 mm
Width (without stand)375 mm
Depth (without stand)200 mm
Height (without stand)390 mm
Weight (without stand)3.9 kg

Packaging content

ManualYes

Other features

Minimum system requirementsWindows 98/ME/2000/XP
Display modes50
Display viewable area (HxV)337.9 x 270.3 mm
Effective viewing area337.9 x 270.3 mm
Monitor sync input signalComposite Sync Separate Sync Sync on Green
Power requirementsBuilt-in 90-264 VAC, 50/60 Hz
Security featuresKensington lock
Signal inputAnalog (VGA)
Compliance industry standardsE2000 Energy Star NUTEK
CertificationCE Mark E2000 EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo
Additional accessoriesAC Power Cord VGA cable
Convenience enhancementsKensington lock compatible FlexiHolder On-screen Display SmartManage enabled
Factory preload modes15
User controlsAuto Brightness Control Left/Right Menu (OK) Power On/Off Up/Down
Supplied AC adapter typeLCD, 1280 x 1024, 1280 x 1024 @ 60 Hz, 50 modes, Super Ergo Base
