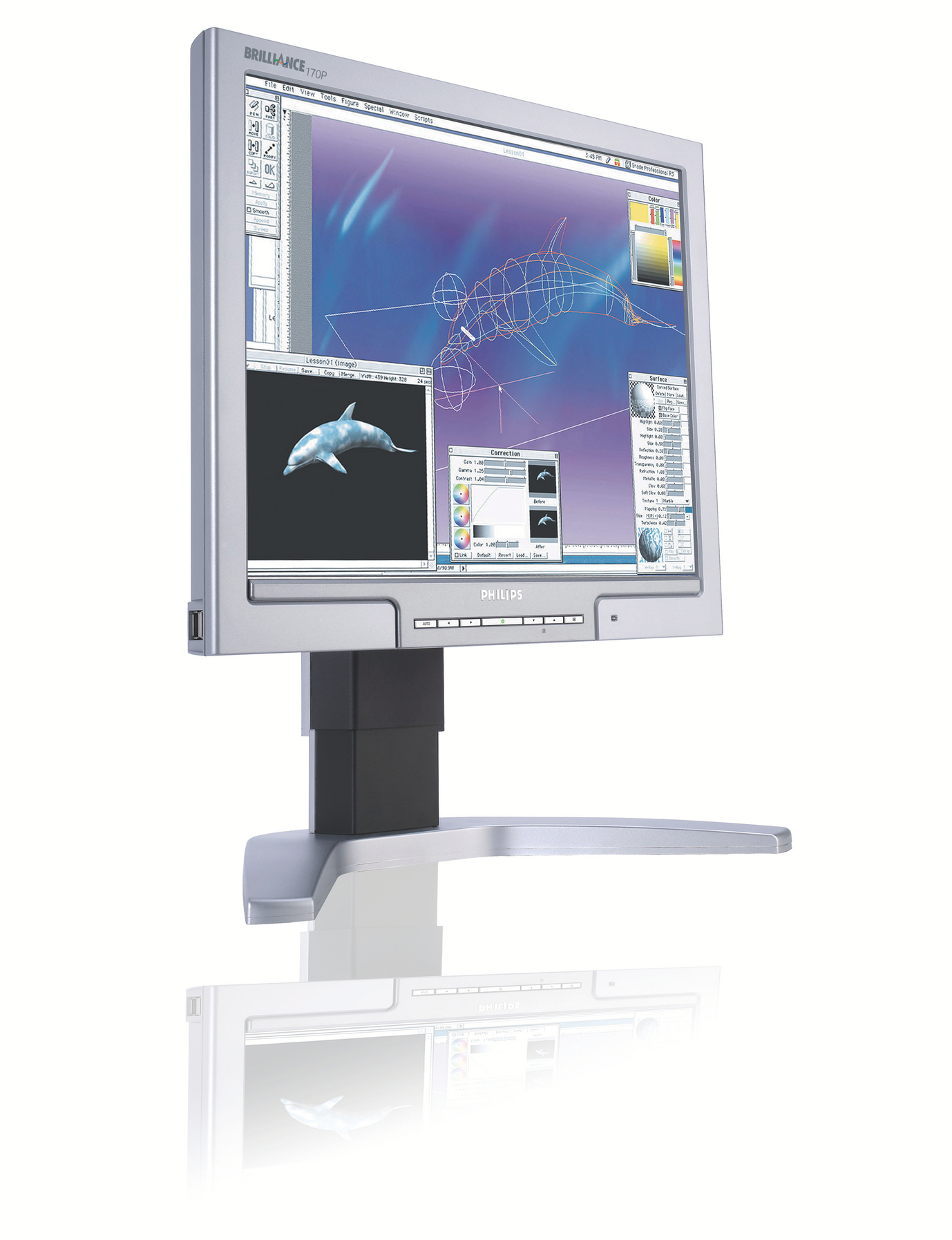

Brilliance LCD monitor 170P7ES/00
Model 170P7ES/00EAN 8710895956307
72 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourWhite
- USB hub version2.0
- Panel mounting interface100 x 100 mm
- Power consumption (standby)1 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- White
- USB hub version
- 2.0
- Panel mounting interface
- 100 x 100 mm
- Power consumption (standby)
- 1 W
- Brand
- Philips
- Category
- Monitor
- Model
- 170P7ES/00
- Part number
- 170P7ES/00
- EAN / UPC
- 8710895956307
- Also known as
- Philips Brilliance LCD monitor 170P7ES/00
Specifications
72 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size diagonal | 43 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Colour gamut standard | sRGB |
| Pixel frequency | 140 MHz |
| Display panel size | 17"/ 43 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 13 cm |
| Swivel angle range | 45 - 45° |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Relative humidity | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 402.6 mm |
| Depth (with stand) | 215.3 mm |
| Height (with stand) | 398.3 mm |
| Weight (with stand) | 6.4 kg |
| Width (without stand) | 382.5 mm |
| Depth (without stand) | 61.5 mm |
| Height (without stand) | 332.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 453 x 263 x 486 mm |
| Package width | 453 mm |
| Package depth | 263 mm |
| Package height | 486 mm |
| Package weight | 8.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Display viewable area (HxV) | 337.9 x 270.3 mm |
| Effective viewing area | 337.9 x 270.3 mm |
| Height adjustment range (imperial) | 5.1 |
| Monitor sync input signal | Composite Sync Separate Sync Sync on Green |
| Power requirements | Built-in 100-240VAC, 50/60Hz |
| Signal input | Analog (VGA) DVI-D |
| Sync input impedance | 2200 Ω |
| Compliance industry standards | Energy Star |
| Certification | CE Mark EMC Energy Star FCC-B, UL, CSA SEMKO TCO '03 TÜV/GS, TÜV Ergo |
| Additional accessories | AC Power Cord DVI-D cable USB cable VGA cable |
| Box depth (imperial) | 25.1 cm (9.9") |
| Box height (imperial) | 48.5 cm (19.1") |
| Convenience enhancements | Kensington lock compatible On-screen Display SmartBright SmartManage enabled |
| Set depth (inch) | 6.1 cm (2.4") |
| Set depth (with stand) (inch) | 21.6 cm (8.5") |
| Set height (inch) | 33.3 cm (13.1") |
| Set height (with stand) (inch) | 39.9 cm (15.7") |
| User controls | Auto Brightness Control (Up/Down) Left/Right Menu (OK) Power On/Off |
