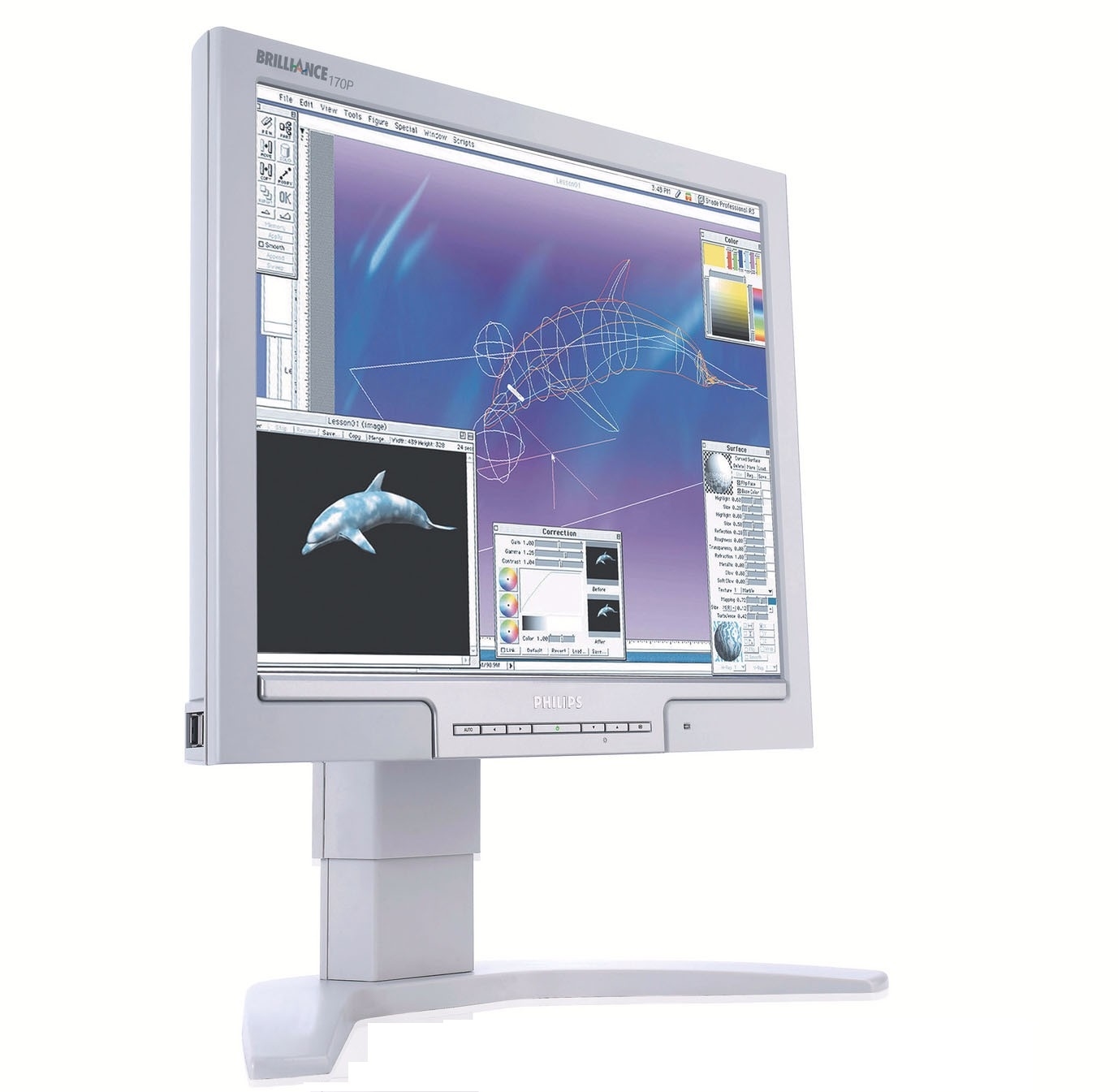

Philips Brilliance LCD monitor 170P7EG/05

Brilliance LCD monitor 170P7EG/05

Model 170P7EG/05EAN 8710895965866

45 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourWhite
USB hub version2.0
Panel mounting interface100 x 100 mm
Power consumption (typical)33 W

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: White
USB hub version: 2.0
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 33 W

Brand: Philips
Category: Monitor
Model: 170P7EG/05
Part number: 170P7EG/05
EAN / UPC: 8710895965866
Also known as: Philips Brilliance LCD monitor 170P7EG/05

Specifications

45 specifications in 9 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	8 ms
Contrast ratio (typical)	600:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size diagonal	43 cm

Design

Specification	Value
Product colour	White

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
Audio input	No
Audio output	No

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Swivel angle range	45 - 45°
Tilt angle range	-5 - 25°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	33 W
Power consumption (standby)	1 W

Operational conditions

Specification	Value
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	5 - 40 m

Weight & dimensions

Specification	Value
Width (with stand)	402.6 mm
Depth (with stand)	215.3 mm
Height (with stand)	398.3 mm
Weight (with stand)	6.4 kg
Width (without stand)	382.5 mm
Depth (without stand)	61.5 mm
Height (without stand)	332.9 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	453 x 263 x 486 mm
Package weight	7.9 kg

Other features

Specification	Value
Display viewable area (HxV)	337.9 x 270.3 mm
Mean time between failures (MTBF)	50000 h
Certification	CE-mark, EMC, Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
